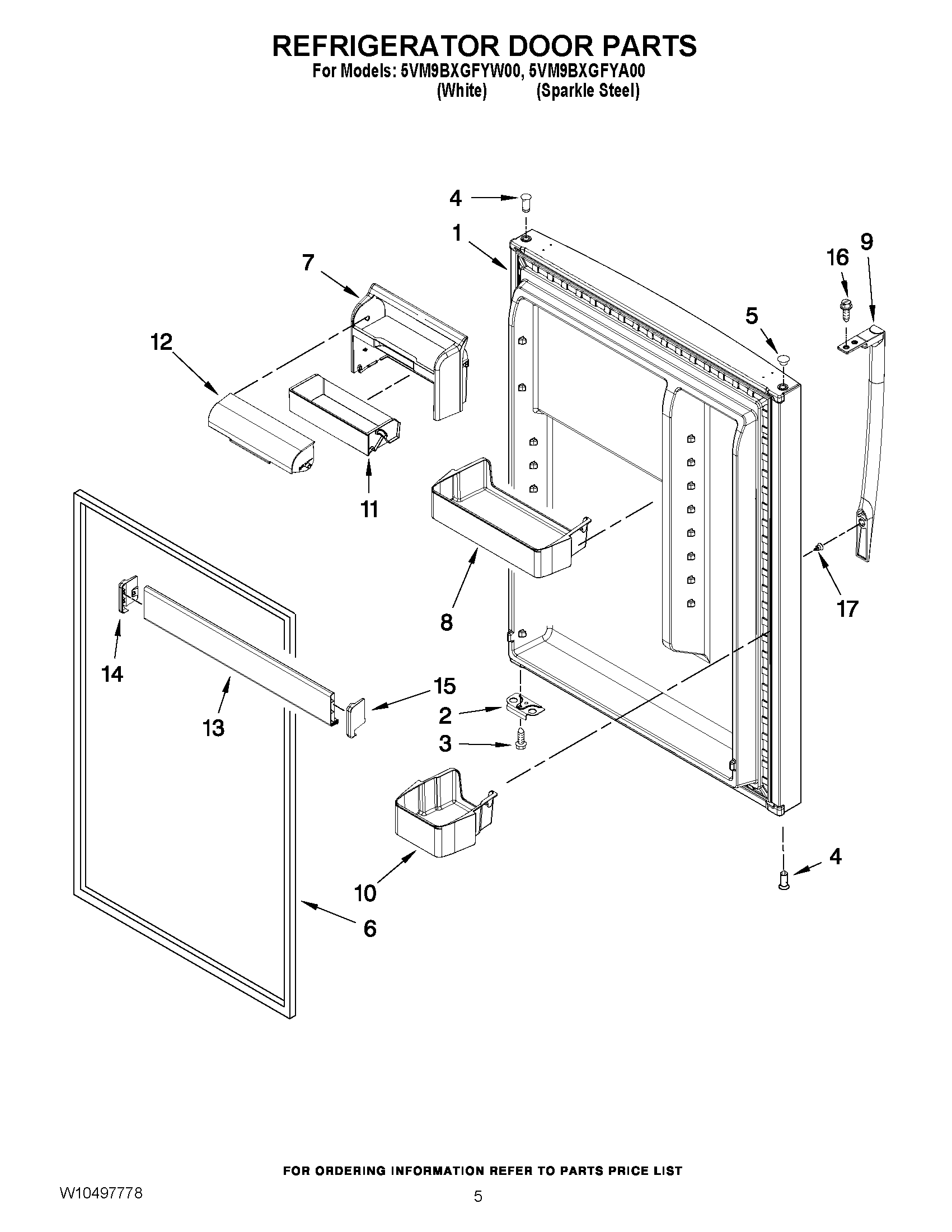

5VM9BXGFYW00 03 – REFRIGERATOR DOOR PARTS

5VM9BXGFYW00 03 – REFRIGERATOR DOOR PARTS

Written by

in

5VM9BXGFYW00 03 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10462417
1MAY W10329581
2MAY 2189202
3MAY 489276
4MAY W10334042
5MAY 2212648
5PLUG, HOLE (GREY)
6DOOR GASKET, MAGNETIC (APOLLO GREY)
6MAY 2202874
7HOUSING COMPARTMENT
8MAY W10331763
9HANDLE, FREEZER (WHITE)
9HANDLE, FREEZER (TITANIUM SPARKLE)
10MAY W10331762
11MAY W10356444
12COMPARTMENT DOOR
13MAY W10308872
14ENDCAP, TRIM LS
15ENDCAP, TRIM RS
16MAY 489357
17MAY W10129563
