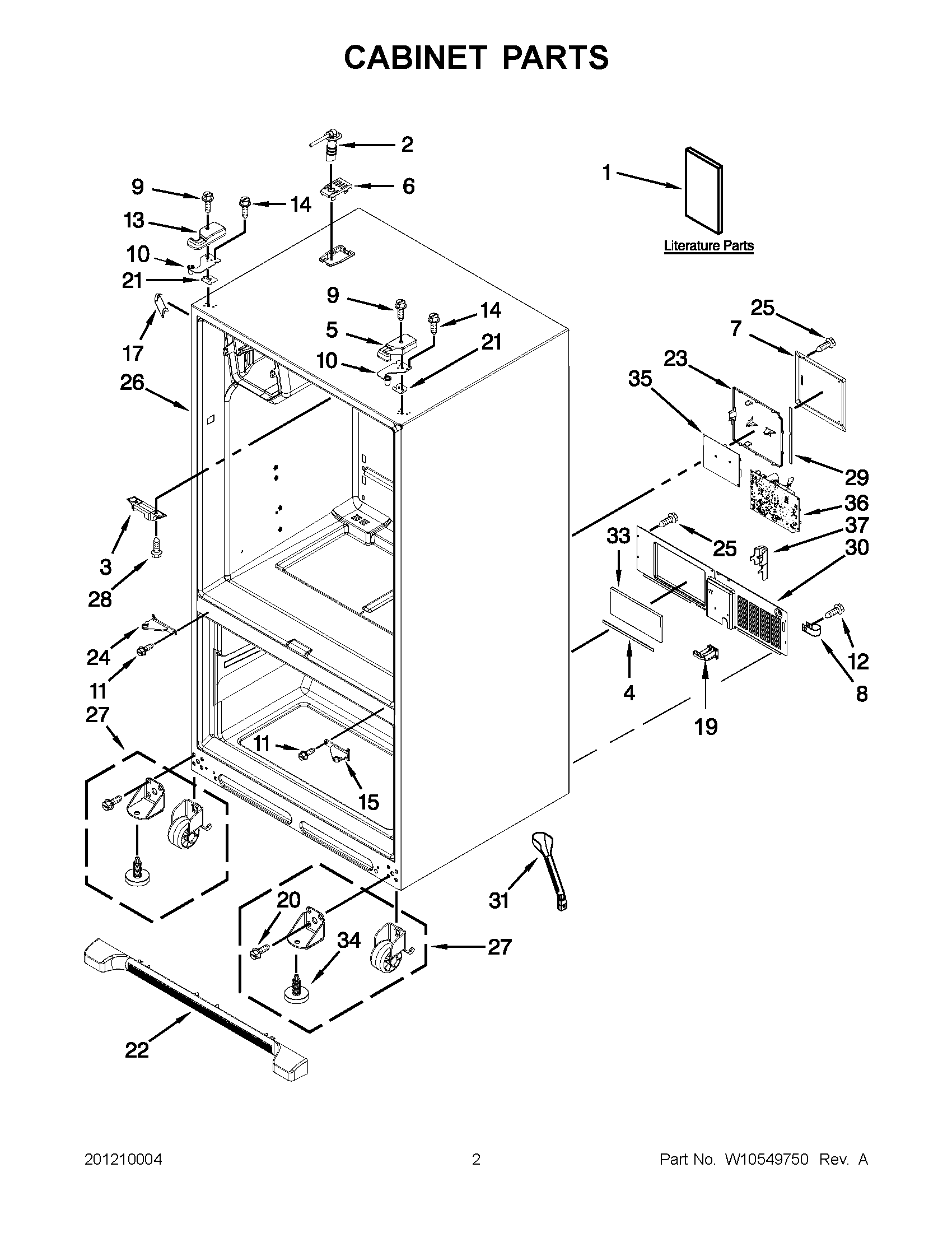

5VMFI267AA00 01 – CABINET PARTS

5VMFI267AA00 01 – CABINET PARTS

Written by

in

5VMFI267AA00 01 – CABINET PARTS

Products

PositionProduct
1MAY W10465886
1MAY W10516192
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5MAY 12962302AP
6MAY 12981401AP
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963204ED
10MAY 12963205ED
11SCREW (6)
12SCREW (10)
13MAY 12962301AP
14SCREW (6)
15HINGE, CENTER (RT) (GREY)
17COVER, CORNER (GREY)
19MAY W10485986
20Screw (8)
21MAY 12999502
21MAY 12999501
22GRILLE, TOE (GREY)
23MAY W10296541
24HINGE, CENTER (LT) (GREY)
25SCREW
26LINER (NOT A SERVICEABLE PART)
27ROLLER ASSEMBLY (RIGHT HAND)
27ROLLER ASSEMBLY (LEFT HAND)
28Screw (4)
29GASKET-HV BOX
30MAY W10212541
31TUBE-DRAIN
33Insulation, Sound
34Brake, Foot
35MAY W10356041
36MAY W10467103
37GUARD-WATER VALVE
