5VMFI267AA00 03 – SHELF PARTS

5VMFI267AA00 03 – SHELF PARTS

Written by

in

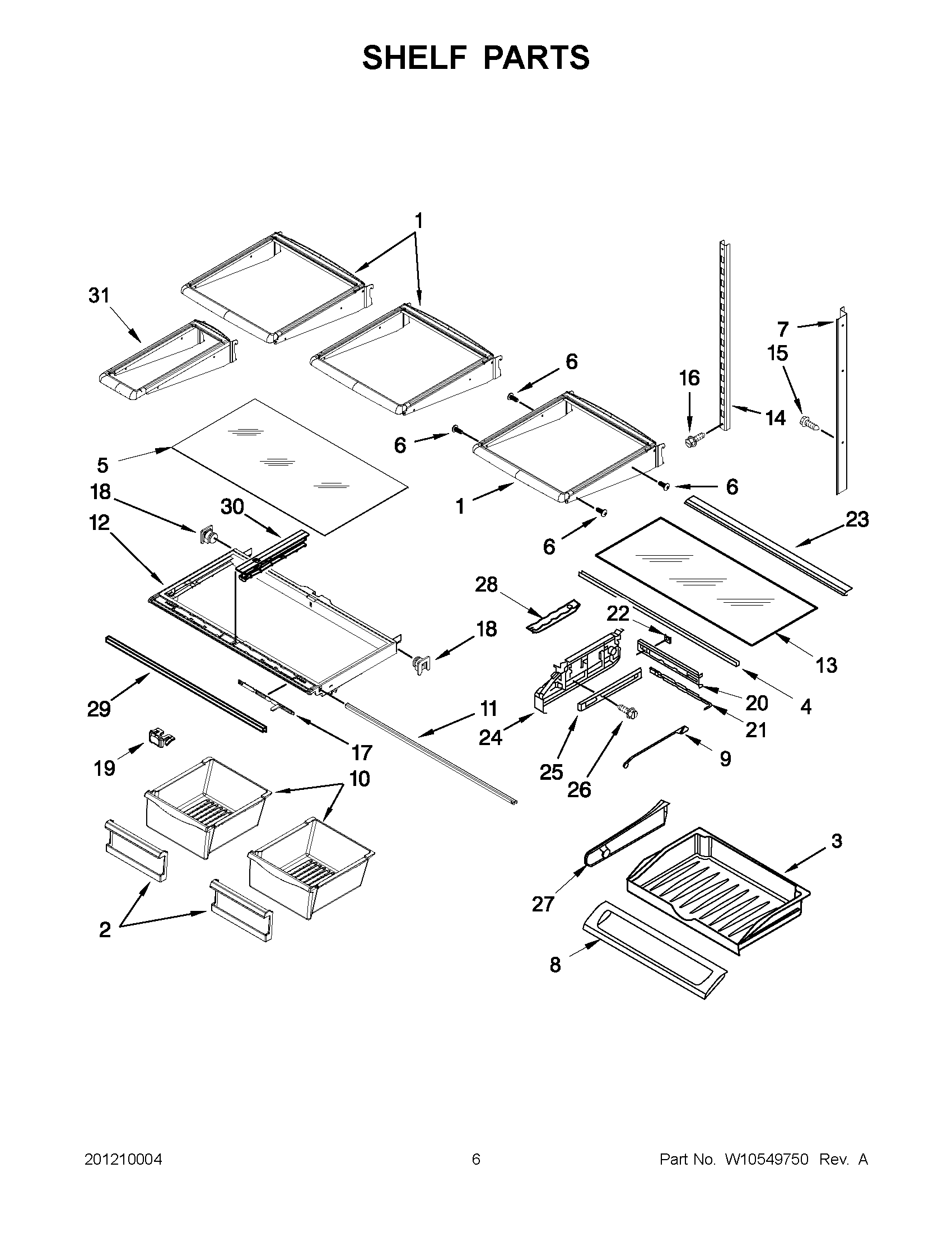

5VMFI267AA00 03 – SHELF PARTS

Products

PositionProduct
1SHELF, GLIDE
2HANDLE, CRISPER PAN (2)
3MAY 12731302
4MAY 12227305WH
5MAY 12204824
6Screw (4)
7LADDER, SIDE RH
7LADDER, SIDE LH
8MAY 12656815
9ROD, TEMPERATURE CONTROL
10MAY 12804601SP
11Brace, Crisper (2)
12MAY W10329866
13GLASS, PANTRY
14MAY W10273464
15MAY 12990513
16SCREW (2)
17MAY 12530805SP
18MAY 13062602
19KNOB, TEMP CONTROL
20MAY 12656202
21SLIDE, TEMPERATURE
22MAY 12656901
23MAY 12655902SP
24ENDCAP, PANTRY (RIGHT)
24ENDCAP, PANTRY (LEFT)
25MAY W10235370
26MAY W10185612
27DIVIDER, PANTRY DRAWER
28TRACK, PANTRY
29MAY W10231345
30RAIL, CENTER
31SHELF-MINI
