5VMFI267AA01 01 – CABINET PARTS – Aparts

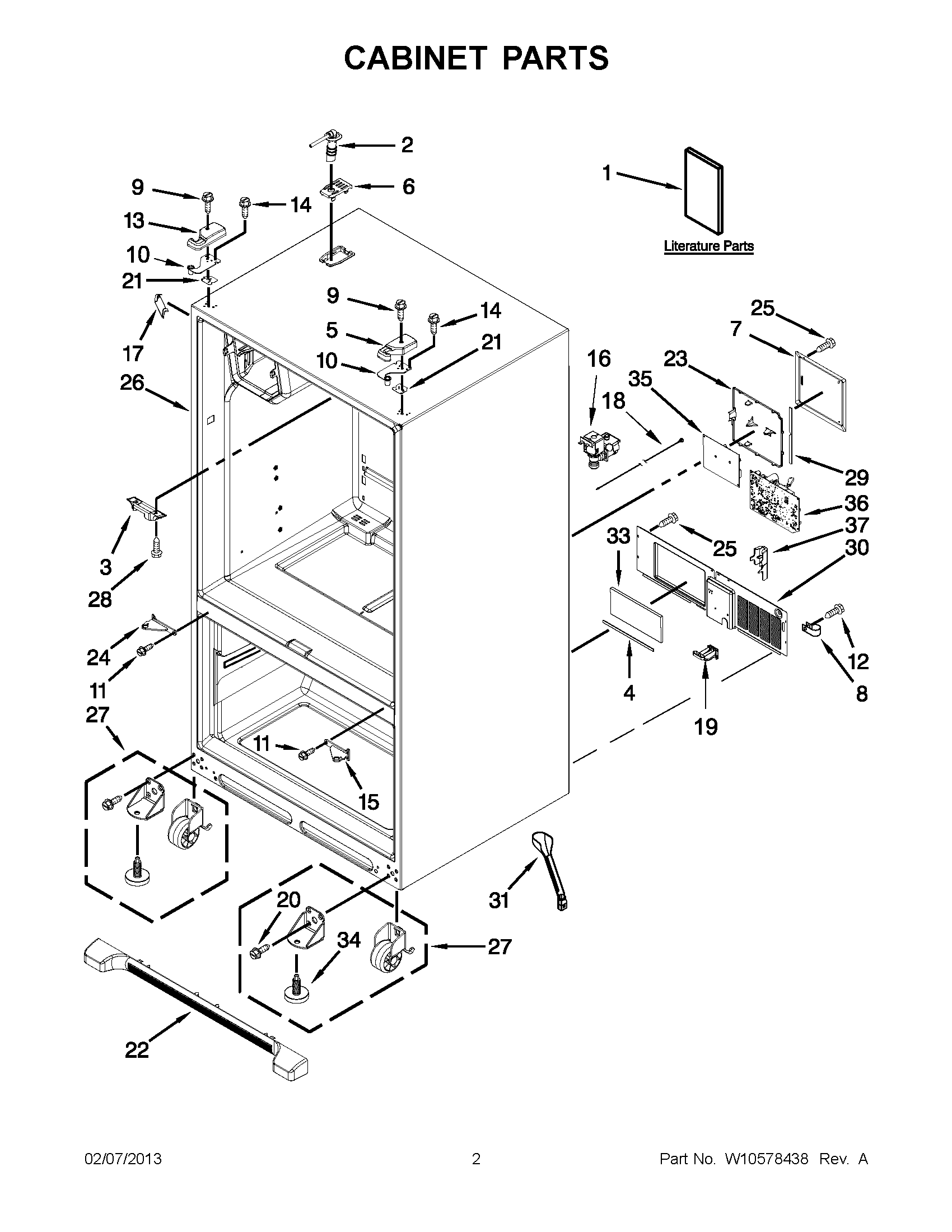

5VMFI267AA01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10516192
1	MAY W10465886
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302AP
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
10	MAY 12963204ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301AP
14	SCREW (6)
15	HINGE, CENTER (RT) (GREY)
16	MAY W10498988
17	COVER, CORNER (GREY)
18	MAY W10129974
19	MAY W10485986
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	GRILLE, TOE (GREY)
23	MAY W10296541
24	HINGE, CENTER (LT) (GREY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSEMBLY (RIGHT HAND)
27	ROLLER ASSEMBLY (LEFT HAND)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10212541
31	TUBE-DRAIN
33	Insulation, Sound
34	Brake, Foot
35	MAY W10356041
36	MAY W10467103
37	GUARD-WATER VALVE
