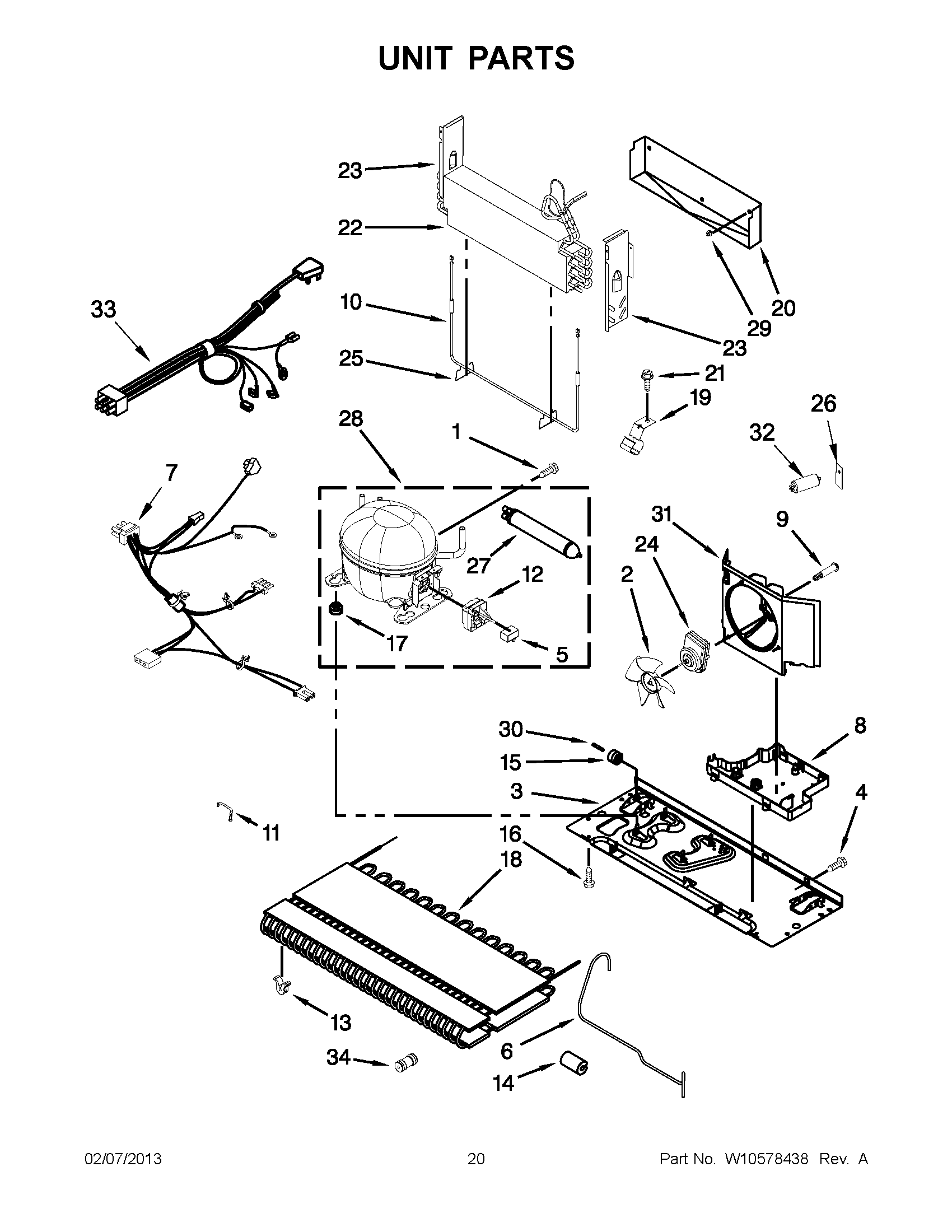

5VMFI267AA01 10 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	CAPACITOR
6	MAY W10242974
7	MAY W10510963
8	MAY W10296785
9	MAY W10216919
10	MAY 12729132
11	STRAP, BALE
12	START DEVICE
13	GROMMET, COND (4)
14	GROMMET, CONDENSER
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	SCREW
22	MAY W10313899
23	Dam (Right Side)
23	Dam (Left Side)
24	MAY W10246191
25	W11673433 Whirlpool Clip
26	BRACKET, LINE FILTER
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	MAY 12689303
33	MAY W10462019
34	CONNECTOR, WATER
