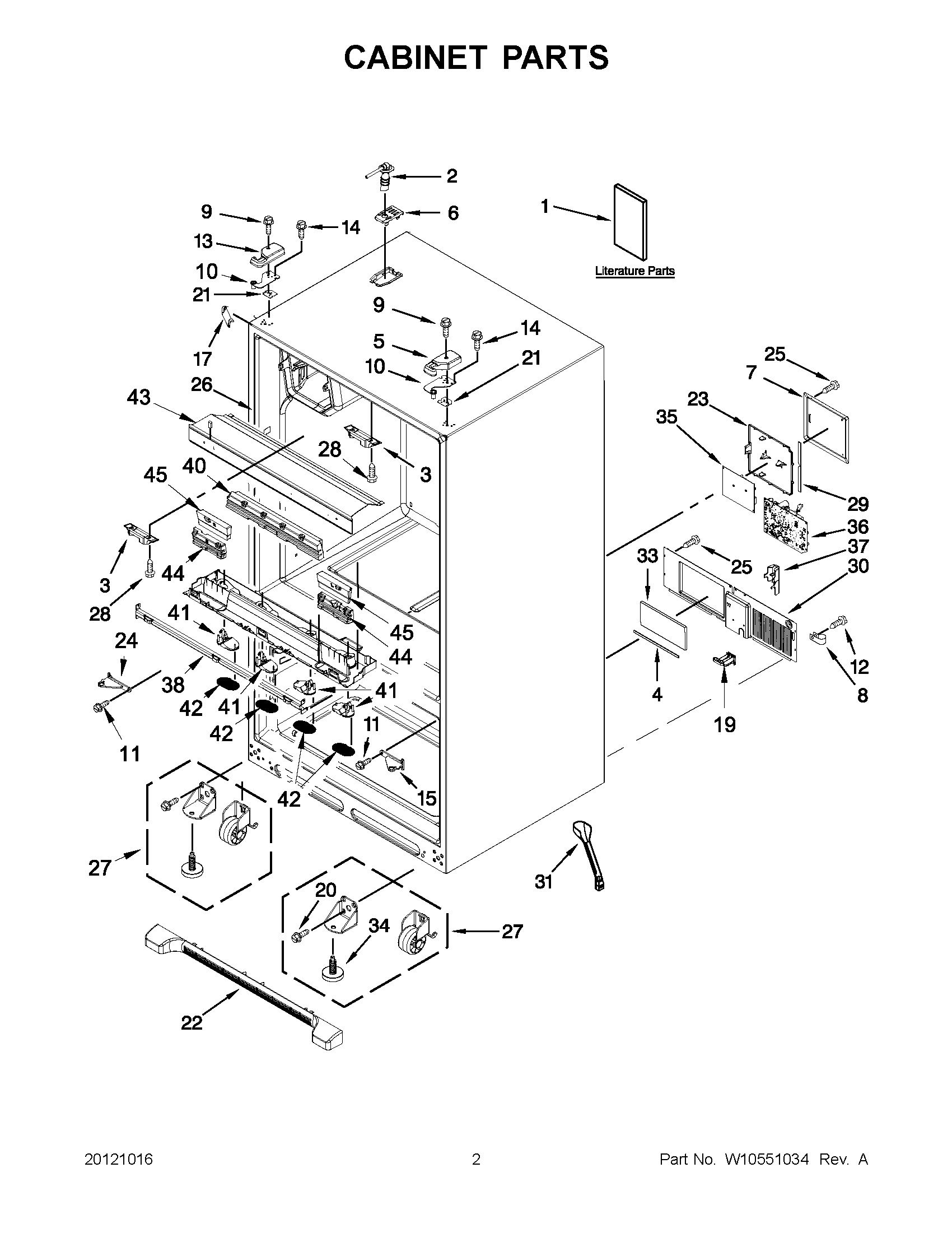

5VMFX257AA00 01 – CABINET PARTSadmin2025-04-26T11:30:32+00:005VMFX257AA00 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10465888 |
| 1 | MAY W10516193 |
| 2 | Tube W/Waterline, Fill-IM |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | MAY 12962302AP |
| 6 | MAY 12981401AP |
| 7 | MAY 12961602 |
| 8 | CLAMP, TUBE |
| 9 | MAY 12992602 |
| 10 | MAY 12963205ED |
| 10 | MAY 12963204ED |
| 11 | MAY W10339086 |
| 12 | SCREW (10) |
| 13 | MAY 12962301AP |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (RT) (GREY) |
| 17 | COVER, CORNER (GREY) |
| 19 | MAY W10485986 |
| 20 | Screw (8) |
| 21 | MAY 12999501 |
| 21 | MAY 12999502 |
| 22 | GRILLE, TOE (GREY) |
| 23 | MAY W10296541 |
| 24 | HINGE, CENTER (LT) (GREY) |
| 25 | SCREW |
| 26 | LINER (NOT A SERVICEABLE PART) |
| 27 | ROLLER ASSEMBLY (RIGHT HAND) |
| 27 | ROLLER ASSEMBLY (LEFT HAND) |
| 28 | Screw (4) |
| 29 | GASKET-HV BOX |
| 30 | MAY W10212541 |
| 31 | TUBE-DRAIN |
| 33 | Insulation, Sound |
| 34 | Brake, Foot |
| 35 | CONTROL, ELECTRONIC POWER SAUPPLY |
| 36 | MAY W10467104 |
| 37 | GUARD-WATER VALVE |
| 38 | HOUSING, MODULE |
| 39 | MAY W10492234 |
| 40 | MULLION, SECONDARY |
| 41 | MODULE, LED LIGHT |
| 42 | MAY W10237349 |
| 43 | MAY W10467114 |
| 44 | WEDGE, SPACER LEFT HAND & RIGHT HAND |
| 45 | WEDGE, SPACER LEFT HAND & RIGHT HAND |
