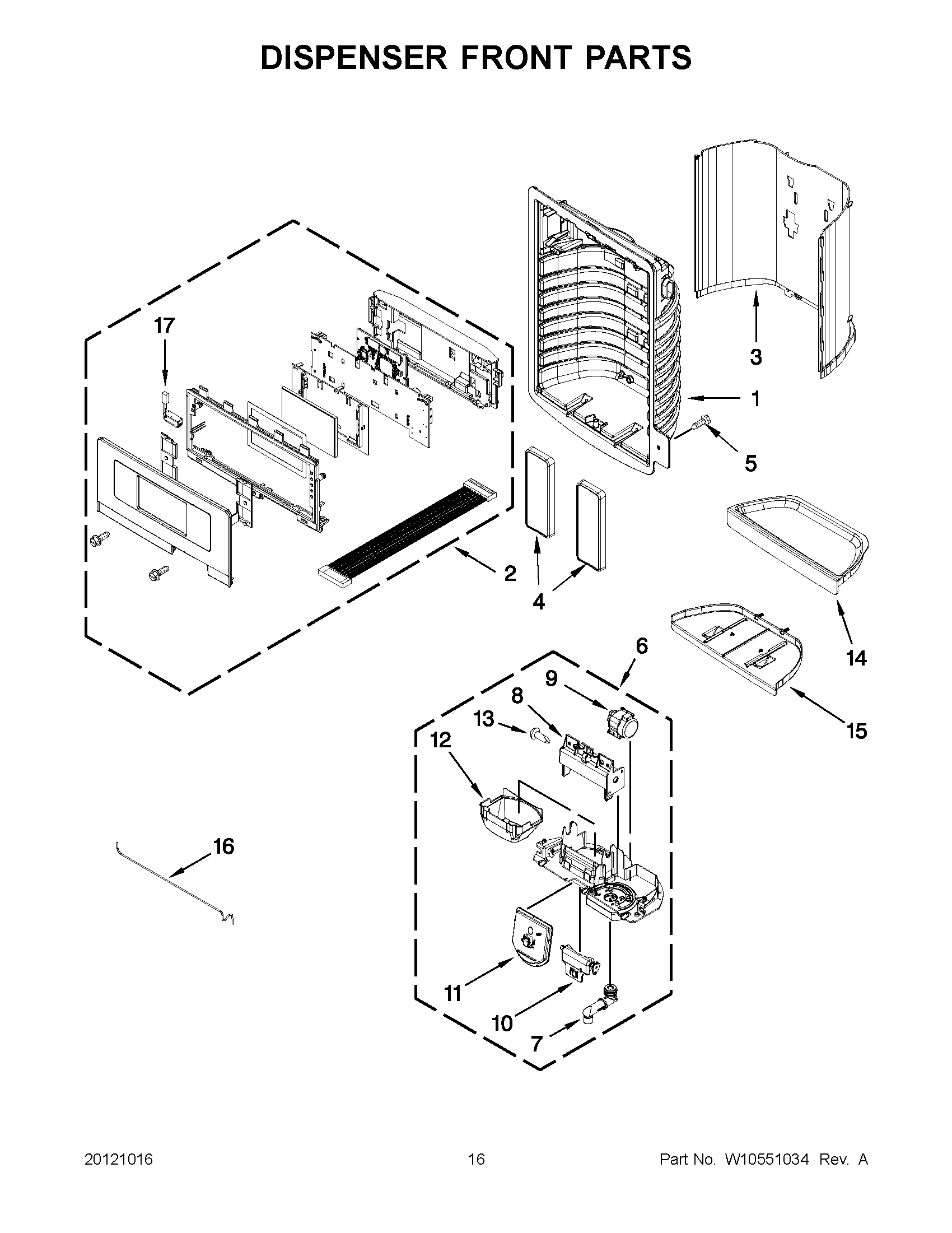

5VMFX257AA00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10484304
3FALSE, WALL, DISPENSER (STAINLESS)
4ASSEMBLY, PAD (GREY)
5SCREW
6MAY W10353552
7MAY 2316647
8MAY W10174827
9MAY W10205979
10MAY W10346124
11DOOR, ICE
12GUIDE, ICE
13MAY 4449745
14TRAY, DISPENSER STAINLESS
15SLIDE, TRAY DISPENSER (GREY)
16MAY W10511930
17MAY W10238083
