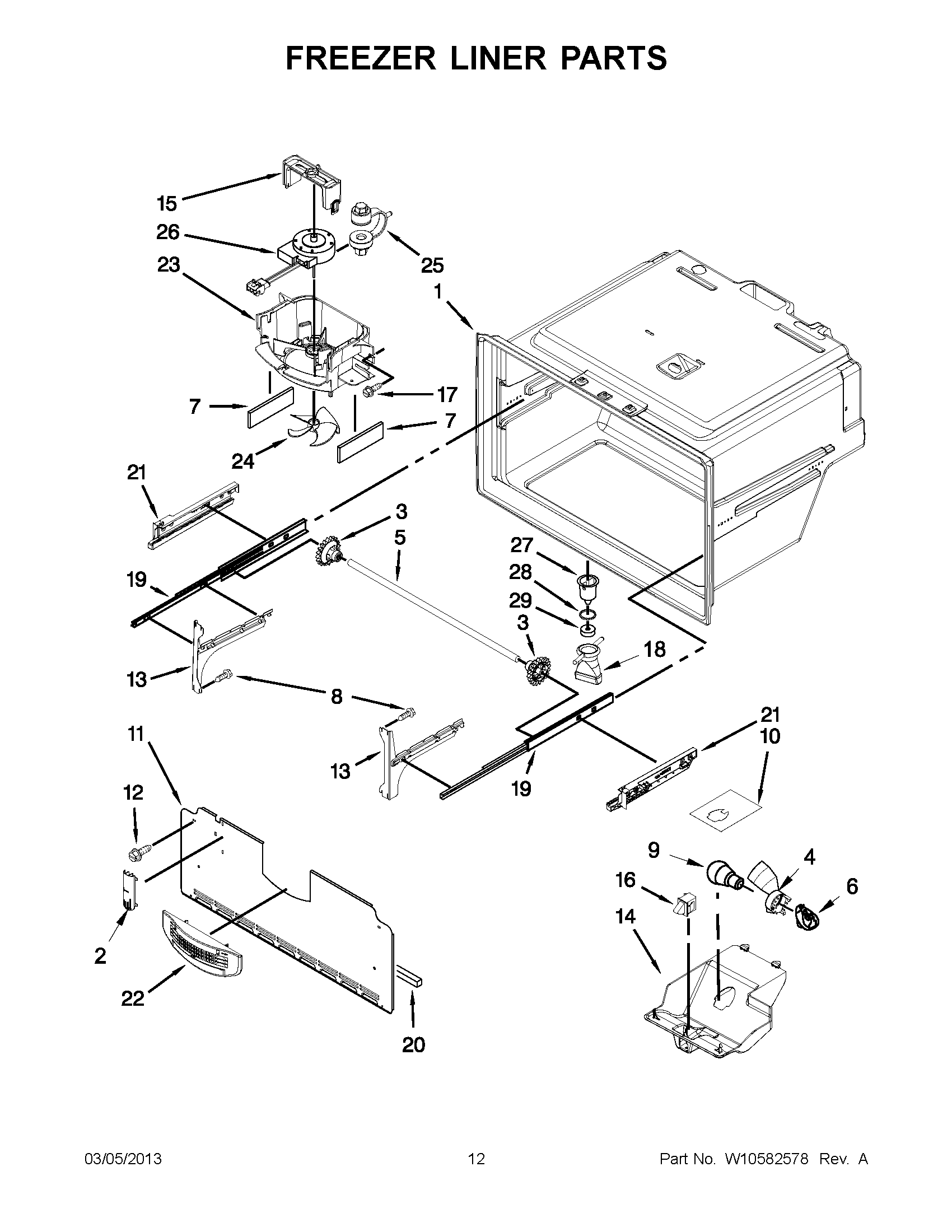

5VMFX257AA01 06 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 12815301
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	SHROUD-LGHT SOCKET
5	SHAFT
6	MAY W10134764
7	Gasket, Bottom
8	Screw (8)
9	MAY A0282808
10	FOIL-FZ LIGHT
11	COVER, EVAP
12	SCREW (10)
13	MAY W10330991
13	MAY W10330993
14	MODULE, FREEZER LIGHT
15	MAY 12956601
16	MAY 12466115SP
17	MAY 12990504
18	MAY W10309238
19	MAY W10120018
20	Gasket, Bottom
21	MAY W10284683
21	MAY W10284682
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10459645
27	MAY D7753903
28	MAY M0500703
29	Gasket
