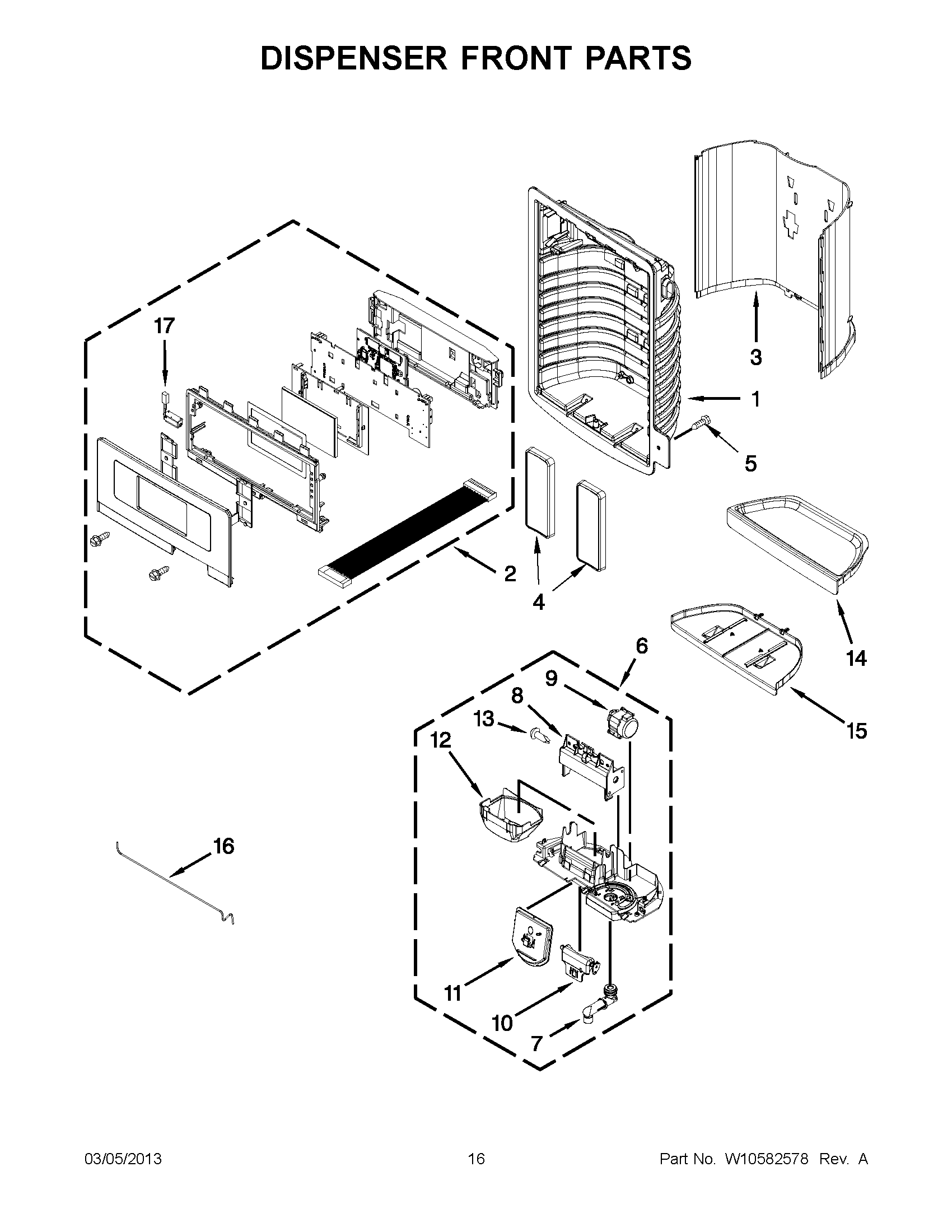

5VMFX257AA01 08 – DISPENSER FRONT PARTS

Written by

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10484304
3	FALSE, WALL, DISPENSER (STAINLESS)
4	ASSEMBLY, PAD (GREY)
5	SCREW
6	MAY W10353552
7	MAY 2316647
8	GUIDE, ICE
9	TRAY, DISPENSER STAINLESS
10	SLIDE, TRAY DISPENSER (GREY)
11	MAY W10511930
12	MAY W10238083
