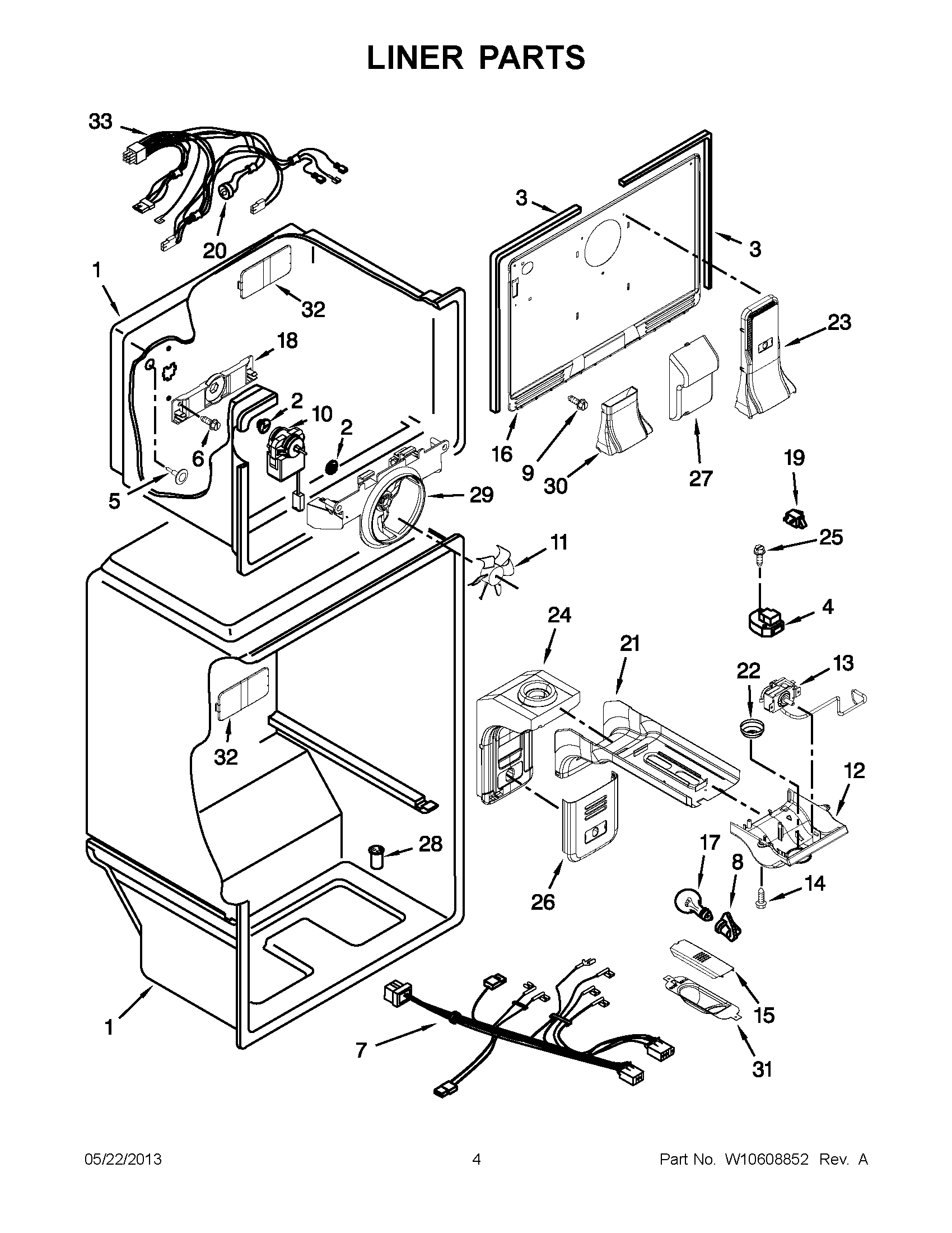

5VMTM21BW00 02 – LINER PARTS

5VMTM21BW00 02 – LINER PARTS

Written by

in

5VMTM21BW00 02 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2197380
3GASKET, EVAPORATOR COVER
4MAY 2321259
5MAY 941839
6Screw
7MAY W10403661
8MAY W10134764
9SCREW (WHITE)
10MAY W10173141
11MAY 2200509
12MAY W10440730
13THERMOSTAT ASSEMBLY
14MAY 489174
15LIGHT COVER, RC
16COVER-EVAPORATOR
17BULB, LIGHT
18Bracket, Fan Back
19MAY 1118894
20DEFROST, BI-METAL
21MAY W10305175
22KNOB
23TOWER, AIR
24AIR DIFFUSER ASSEMBLY
25MAY 97787
26MAY W10310927
27MAY W10339203
28MAY 2210509
29MAY W10321162
30ASSEMBLY, TOWER CONNECTION
31MAY W10300161
32CUP, SCREW
33MAY W10495656
