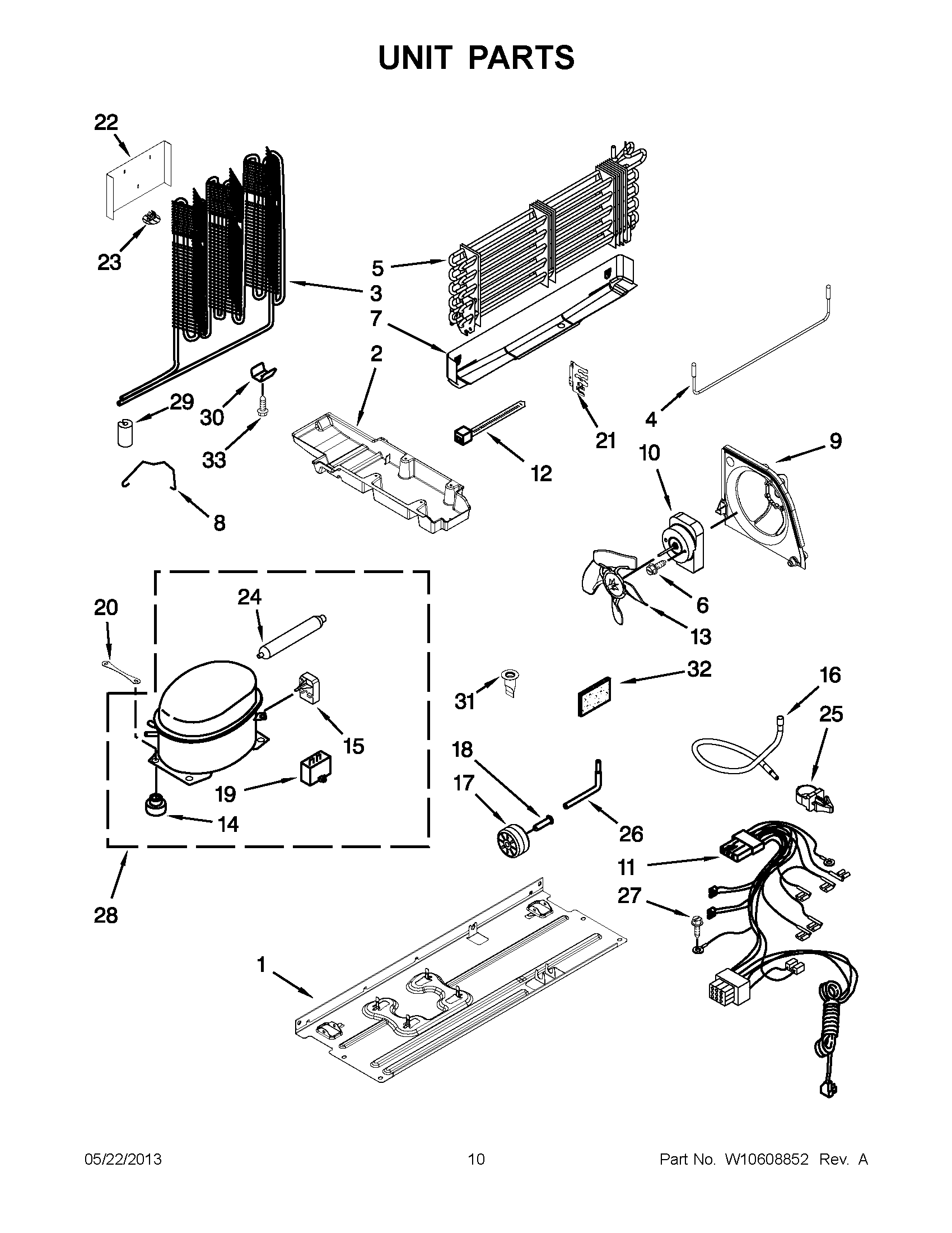

5VMTM21BW00 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	MAY W10300116
2	MAY W10466213
3	CONDENSER
4	MAY W10405108
5	EVAPORATOR ASSY.
6	MAY 8533961
7	MAY W10314195
8	STRAP, BALE
9	MAY 2315541
10	MOTOR, CONDENSER
11	MAY W10402413
12	MAY 2263990
13	MAY W10139483
14	GROMMET
15	START DEVICE
16	MAY W10466682
17	Roller
18	MAY 2179826
19	CAPACITOR
20	MAY W10236396
21	BRACKET, EVAPORATOR
22	COVER, CONDENSER BOTTOM
23	CLIP, BOTTOM COVER
24	DRIER (PRODUCTION)
25	Clip, Harness (1)
26	MAY 2154109
27	MAY 488500
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	GROMMET, CONDENSER
30	CLIP, CONDENSER
31	VALVE, DRAIN
32	MAY 2215468
33	MAY 8281232
