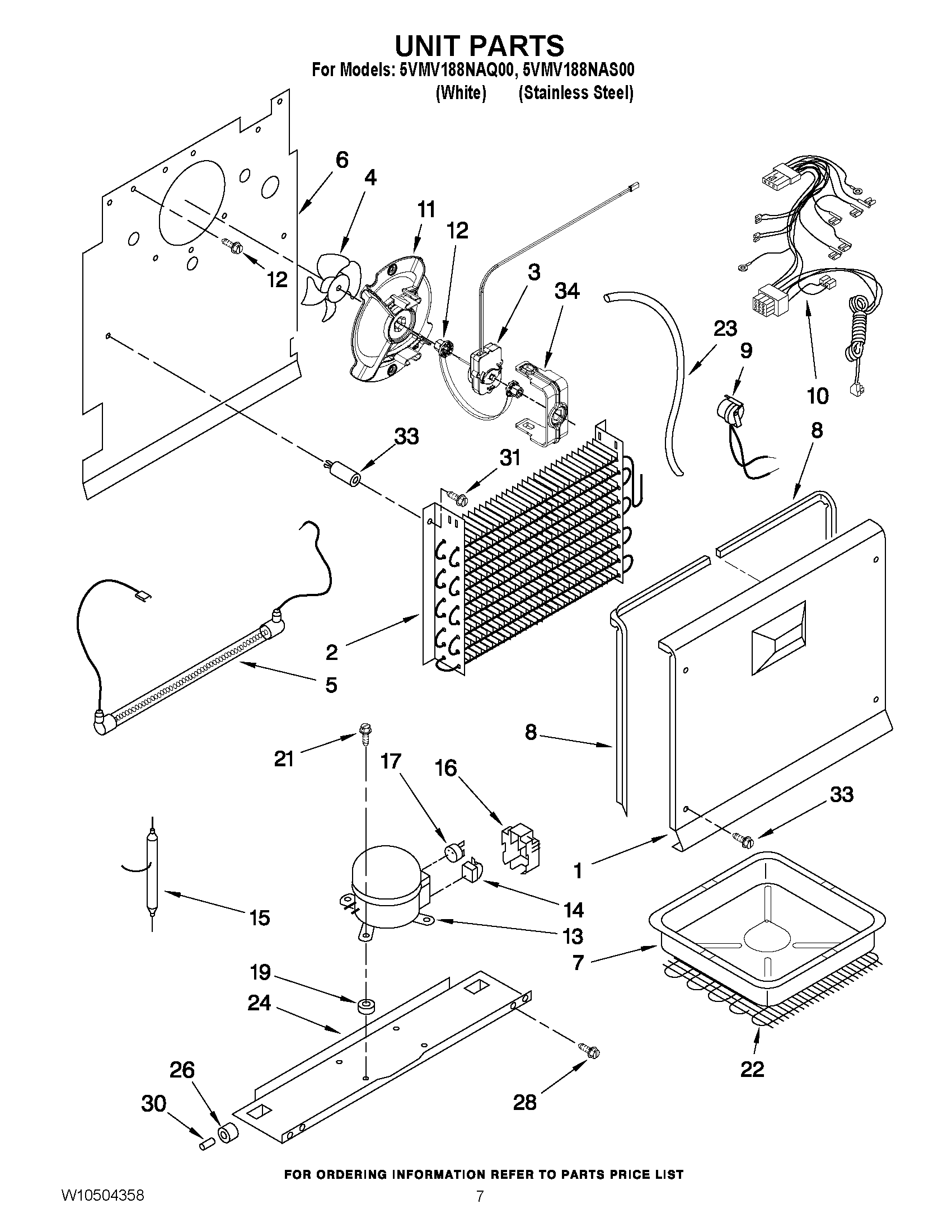

5VMV188NAQ00 04 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10452370
2	MAY W10455861
3	MOTOR, FAN
4	Blade, Fan (Evaporator)
5	MAY W10426849
6	MAY W10452115
7	MAY 4-82749-001
8	MAY 3-60180-001
8	MAY 3-60180-002
9	MAY W10491892
10	MAY W10415853
11	MAY W10457575
12	MAY W10150583
13	MAY W10447590
14	MAY 2-35154-011
15	MAY W10459086
16	MAY W10462677
17	MAY 2-34286-027
19	MAY 13146462
21	MAY 2-82082-001
22	MAY 4-82683-001
23	MAY W10474982
24	MAY W10470129
26	MAY 3-60315-001
28	MAY 3-24838-048
30	MAY 1-60316-001
31	MAY 3-24004-079
33	MAY 1-80275-101
34	CLIP, EVAP. MOTOR
