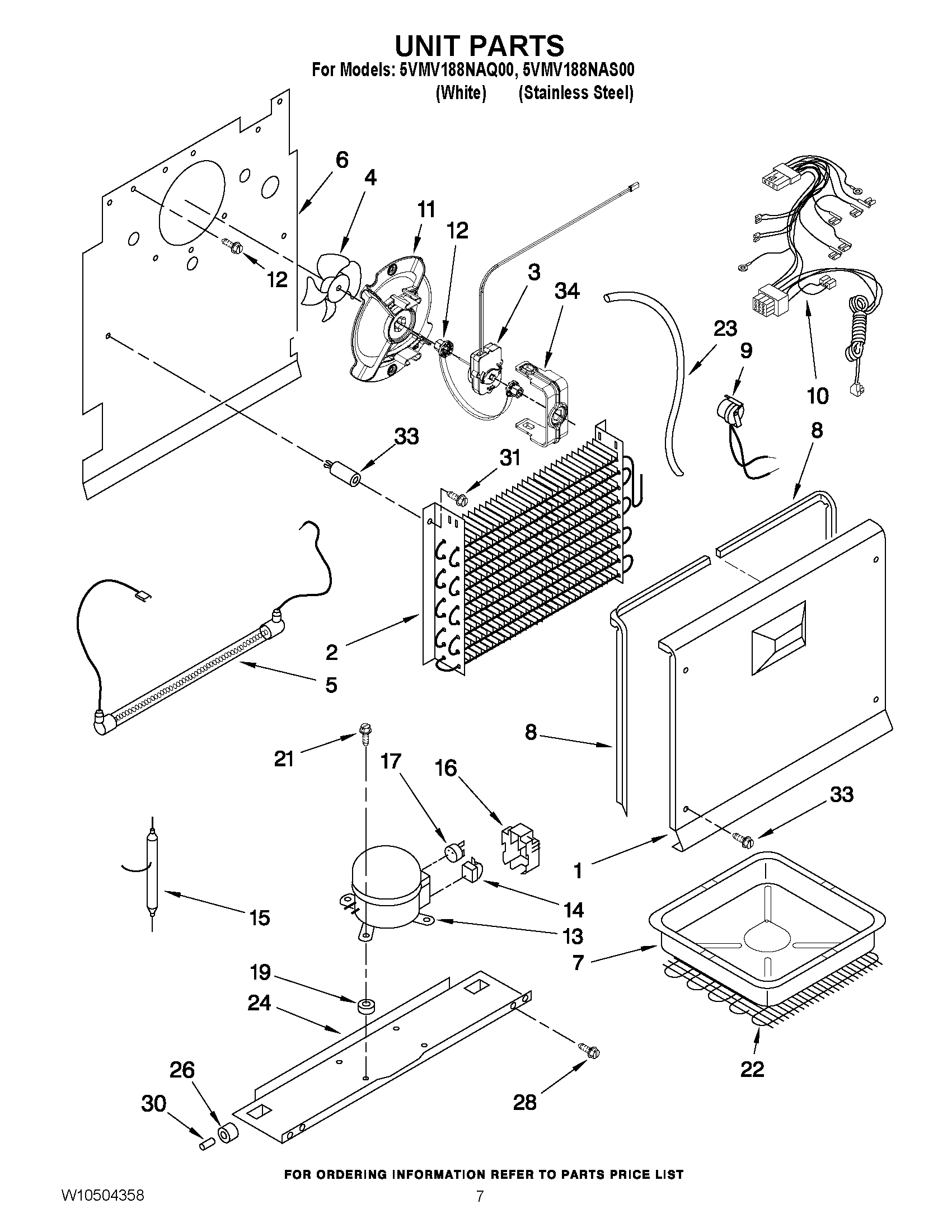

5VMV188NAS00 04 – UNIT PARTS
Written by
in
5VMV188NAS00 04 – UNIT PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
1
MAY W10452370
2
MAY W10455861
3
MOTOR, FAN
4
Blade, Fan (Evaporator)
5
MAY W10426849
6
MAY W10452115
7
MAY 4-82749-001
8
MAY 3-60180-001
8
MAY 3-60180-002
9
MAY W10491892
10
MAY W10415853
11
MAY W10457575
12
MAY W10150583
13
MAY W10447590
14
MAY 2-35154-011
15
MAY W10459086
16
MAY W10462677
17
MAY 2-34286-027
19
MAY 13146462
21
MAY 2-82082-001
22
MAY 4-82683-001
23
MAY W10474982
24
MAY W10470129
26
MAY 3-60315-001
28
MAY 3-24838-048
30
MAY 1-60316-001
31
MAY 3-24004-079
33
MAY 1-80275-101
34
CLIP, EVAP. MOTOR
←
B9457X0 04 – BODY
KUDK01ILBS1 07 – TUB AND FRAME PARTS
→
