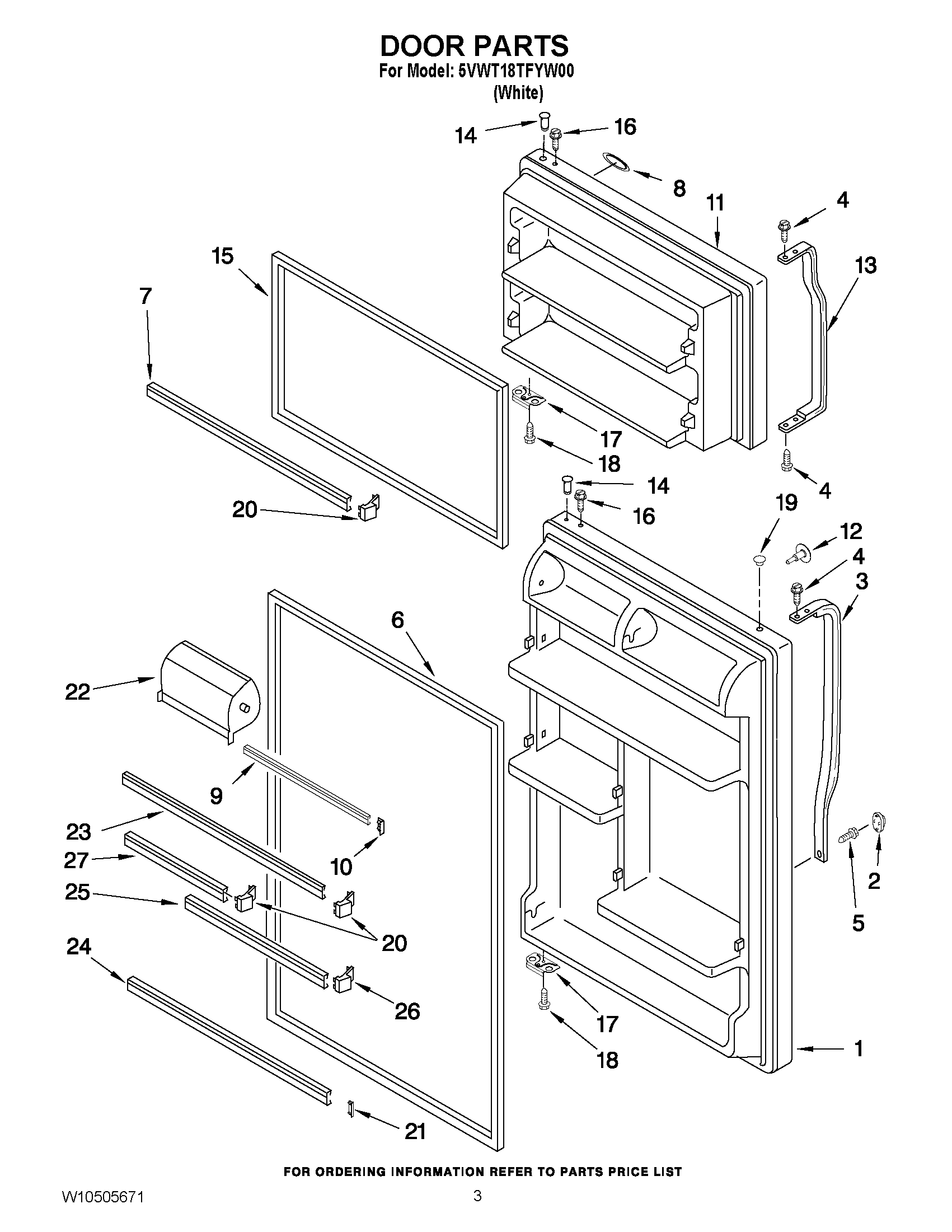

5VWT18TFYW00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (White)
2	WP2202819W Whirlpool Refrigerator Cover
3	WP2202807W Whirlpool Handle Door
4	WP489357 Whirlpool Recessed Screw
5	WP8281146 Whirlpool Screw
6	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
7	Trim-Door (2)
8	W11178521 Whirlpool Dishwasher Nameplate
9	TRIM-DOOR
10	ENDCAP-TRM
11	Freezer Door (Includes Illus. 4, 17 & 18) (White)
12	WP2189000 Whirlpool Refrigerator Handle Plug
13	WP2202806W Whirlpool Refrigerator Handle
14	WP2314293 Whirlpool Refrigerator Thimble
15	2159327 Whirlpool Refrigerator Door Gasket
16	WP8281206 Whirlpool Refrigerator Screw
17	W11745278 Whirlpool Bracket
18	WP488921 Whirlpool Refrigerator Screw
19	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
20	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
21	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22	WP2218113 Whirlpool Dairy Door
23	Trim, Door Shelf
24	WPW10421484 Whirlpool Refrigerator Door Trim
25	WP2195943 Whirlpool Shelf Retainer Bar
26	WP2195915 Whirlpool Door Shelf Support
27	Trim, Door
