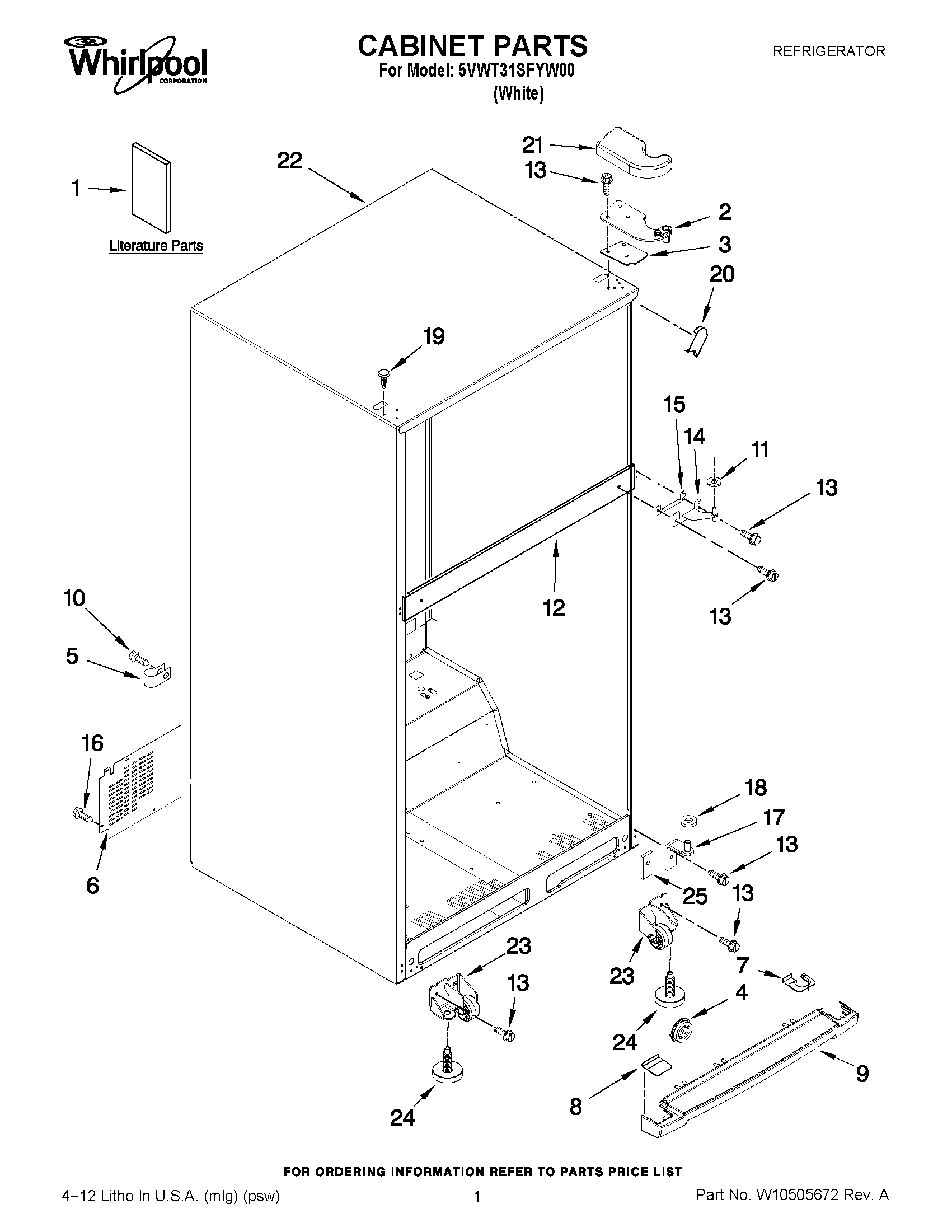

5VWT31SFYW00 01 – CABINET PARTS

Products

Position	Product
1	WIRING SHEET, ARABIAN
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W10883637 Whirlpool Refrigerator Hinge Shim
4	W10331226 Whirlpool Refrigerator Clip
5	WP488366 Whirlpool Refrigerator Clamp
6	COVER, UNIT
7	W10381059 Whirlpool Refrigerator End Cap – GRL
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
9	WPW10300129 Whirlpool Refrigerator Grille
10	WP488729 Whirlpool Refrigerator Door Screw
11	WP489467 Whirlpool Hinge Shim
13	WP489497 Whirlpool Screw
14	WP2254618 Whirlpool Center Door Hinge
15	WP2183852 Whirlpool Refrigerator Shim
16	WP489464 Whirlpool Refrigerator Screw
17	WP2254473 Whirlpool Refrigerator Door Hinge
18	WP487576 Whirlpool Washer
19	WP2151652 Whirlpool Refrigerator Button Plug
20	WPW10283959 Whirlpool Refrigerator Filler
21	W10331560A Whirlpool Refrigerator Cover
21	COVER, HINGE (WHITE LS)
22	CABINET (NOT A SERVICEABLE PART)
23	WPW10359255 Whirlpool Cabinet Wheel
23	WPW10359256 Whirlpool Cabinet Roller
24	WPW10141622 Whirlpool Leveler
25	SHIM, FRONT ROLLER
