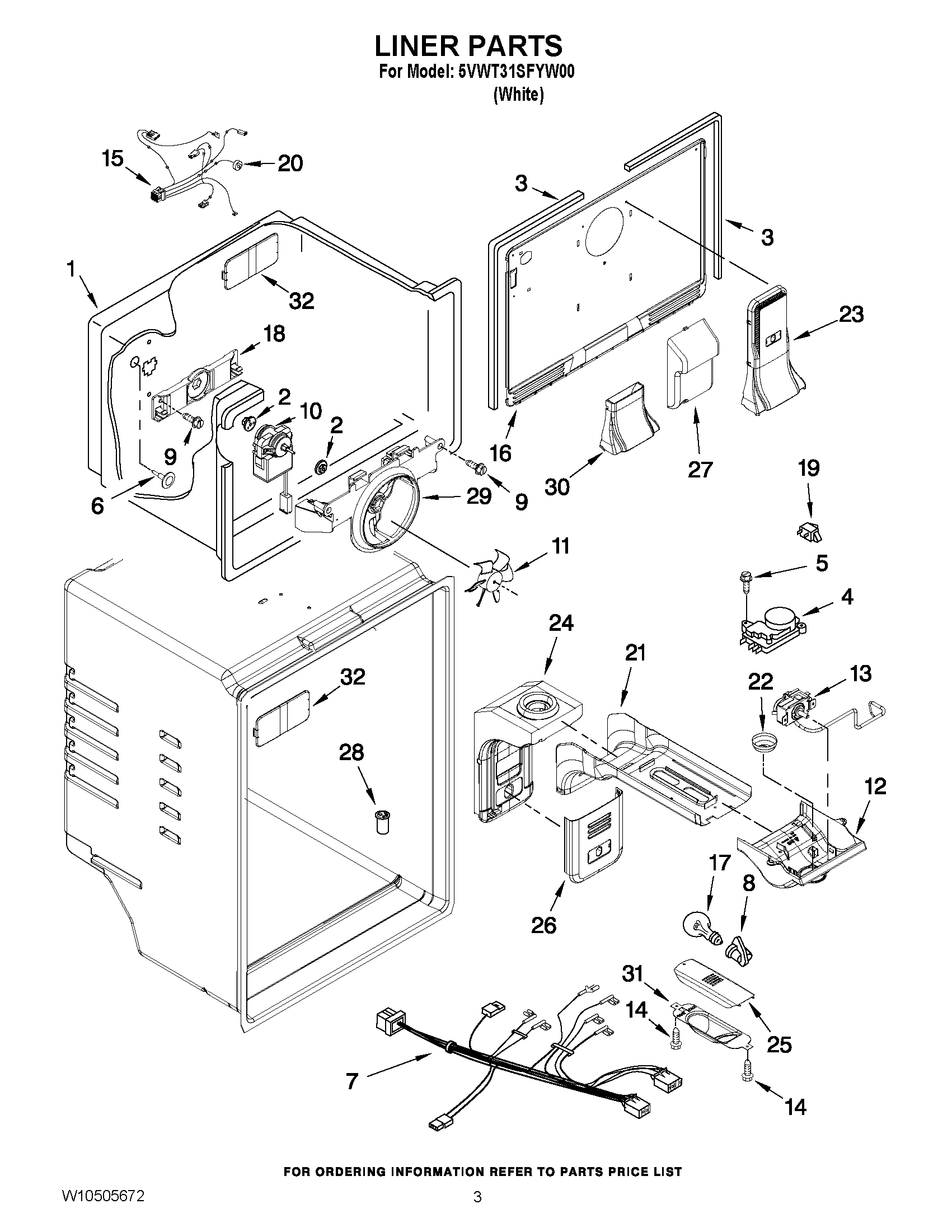

5VWT31SFYW00 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2321259 Whirlpool Refrigerator Defrost Timer
5	WPW10109200 Whirlpool Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	WIRE ASSEMBLY, CONTROL BOX
8	W11447232 Whirlpool Refrigerator Socket
9	WP488163 Whirlpool Refrigerator Screw
10	MOTOR-EVAP
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	CONTROL BOX
13	WPW10584888 Whirlpool Refrigerator Thermostat
14	WP489174 Whirlpool Refrigerator Screw
15	EVAP FAN WIRE ASSY (INCLUDES ITEM 20)
16	COVER, EVAPORATOR
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11384469 Whirlpool Door Switch
20	WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
21	WPW10305175 Whirlpool Refrigerator Cover
22	KNOB
23	TOWER, AIR
24	ASSEMBLY, AIR DIFFUSER
25	WPW10348614 Whirlpool Refrigerator Cover
26	CUP, AIR DIFFUSER
27	WPW10339203 Whirlpool Refrigerator Tube Cover
28	WP2210509 Whirlpool Refrigerator Tub Valve
29	W10850162 Whirlpool Refrigerator Orifice
30	ASSEMBLY, TOWER CONNECTION
31	W10300161 Whirlpool Refrigerator Shield
32	W10336009 Whirlpool Refrigerator Cover
