5VWT31SFYW00 03 – REFRIGERATOR DOOR PARTS

5VWT31SFYW00 03 – REFRIGERATOR DOOR PARTS

Written by

in

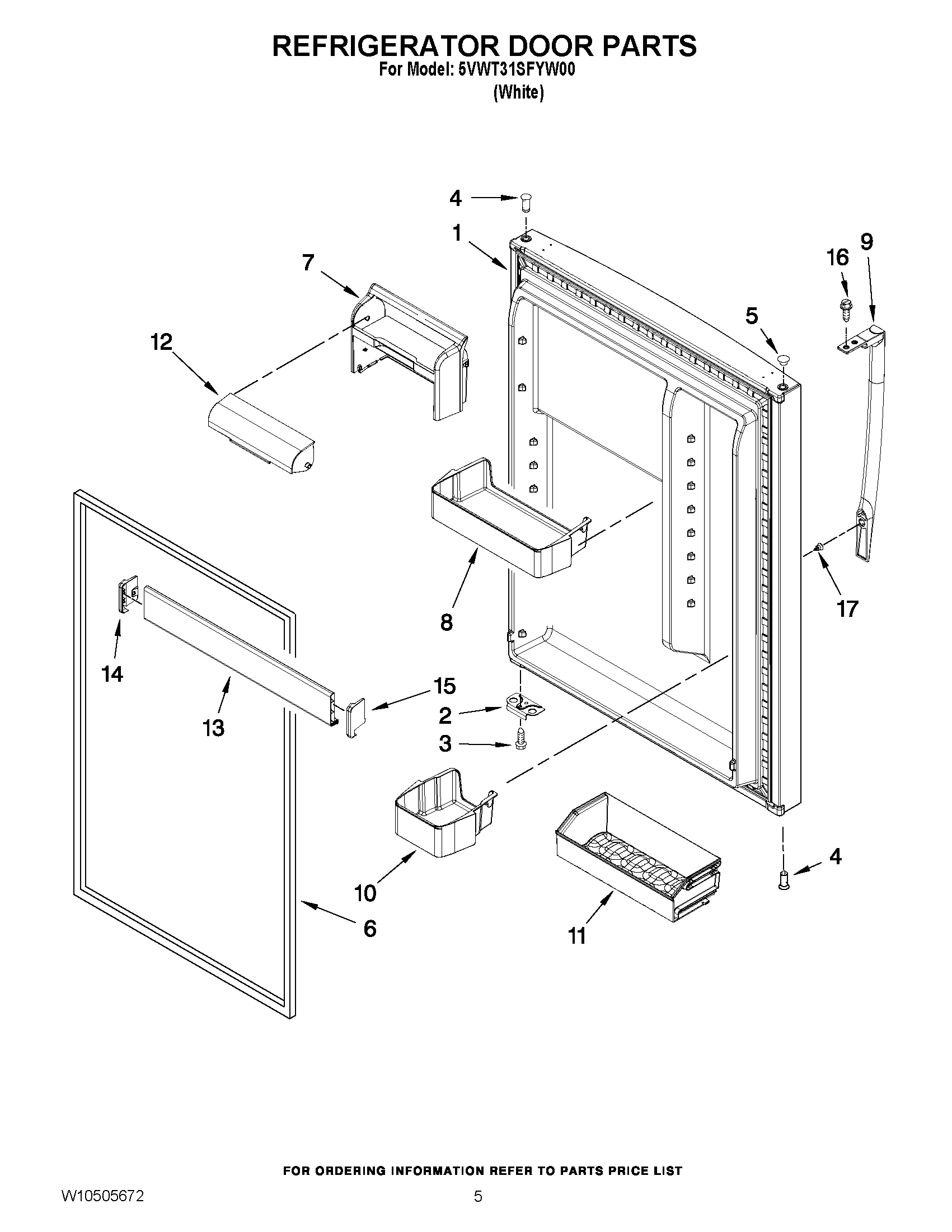

5VWT31SFYW00 03 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES ITEMS 4 AND 6) (WHITE)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
62159061 Whirlpool Refrigerator Door Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9W11178521 Whirlpool Dishwasher Nameplate
10WPW10308869 Whirlpool Door Bin
11CADDY, CAN
12WPW10308843 Whirlpool Refrigerator Door Compressor
13WPW10469911 Whirlpool Refrigerator Door Trim
14WPW10338485 Whirlpool Refrigerator End Cap
15CAP, TRIM END (RIGHT HAND)
16WP489357 Whirlpool Recessed Screw
17WPW10170540 Whirlpool Screw
