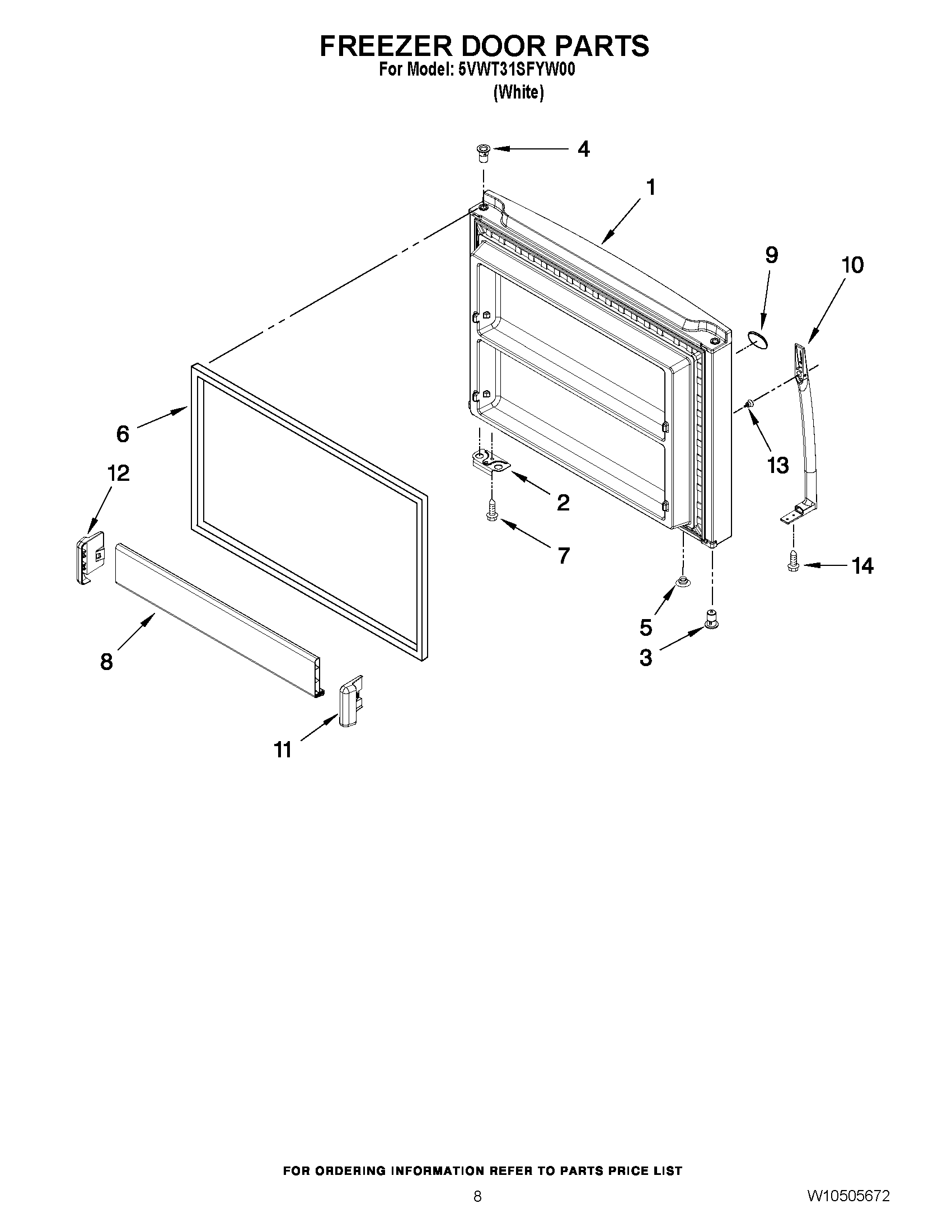

5VWT31SFYW00 05 – FREEZER DOOR PARTS

5VWT31SFYW00 05 – FREEZER DOOR PARTS

Written by

in

5VWT31SFYW00 05 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES ITEMS 4 AND 6) (WHITE)
2W11745278 Whirlpool Bracket
3W11189115 Whirlpool Refrigerator Thimble
4WP2182181 Whirlpool Refrigerator Thimble
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6WHITE DOOR GASKET-FIP
7WP681249 Whirlpool Screw Assembly
8WPW10469912 Whirlpool Refrigerator Door Trim
9W11178521 Whirlpool Dishwasher Nameplate
10WPW10498429 Whirlpool Refrigerator Handle
11CAP, TRIM END (RIGHT HAND)
12WPW10338485 Whirlpool Refrigerator End Cap
13WPW10170540 Whirlpool Screw
14WP489357 Whirlpool Recessed Screw
