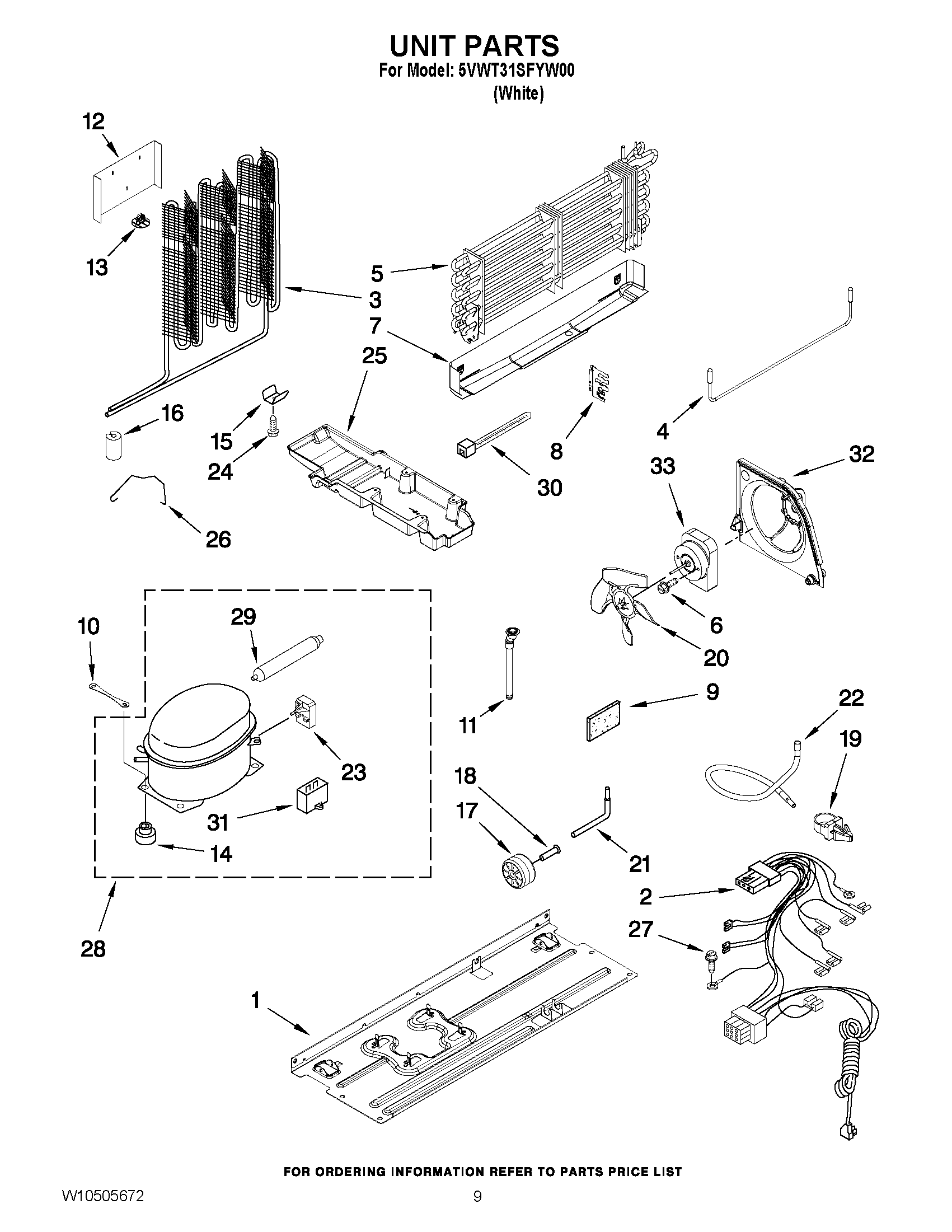

5VWT31SFYW00 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
1	W11396825 Whirlpool Plate
2	WIRE ASSEMBLY, UNIT
3	WPW10342567 Whirlpool Refrigerator Condenser
4	W10405108 Whirlpool Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	W10314197 Whirlpool Refrigerator Bracket
9	W11553819 Whirlpool Refrigerator Insulation
10	W10236396 Whirlpool Refrigerator Strap
11	W11190084 Whirlpool Refrigerator Drain Tube
12	W10349515 Whirlpool Refrigerator Air Baffle
13	W10296661 Whirlpool Refrigerator Clip
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W10683556 Whirlpool Refrigerator Clip
16	W10852725 Whirlpool Refrigerator Grommet
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	2219077 Whirlpool Refrigerator Clip
20	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
21	2154109 Whirlpool Refrigerator Tube
22	W10466682 Whirlpool Refrigerator Tube
23	WP2312007 Whirlpool Refrigerator Start Device
24	W11544659 Whirlpool Refrigerator Screw
25	W10890667 Whirlpool Refrigerator Drip Pan
26	Strap, Bale
27	WP489128 Whirlpool Refrigerator Screw
28	W10183407 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	2321245 Whirlpool Refrigerator Capacitor
32	WP2315541 Whirlpool Refrigerator Air Baffle
33	WP2321271 Whirlpool Refrigerator Condenser Motor
