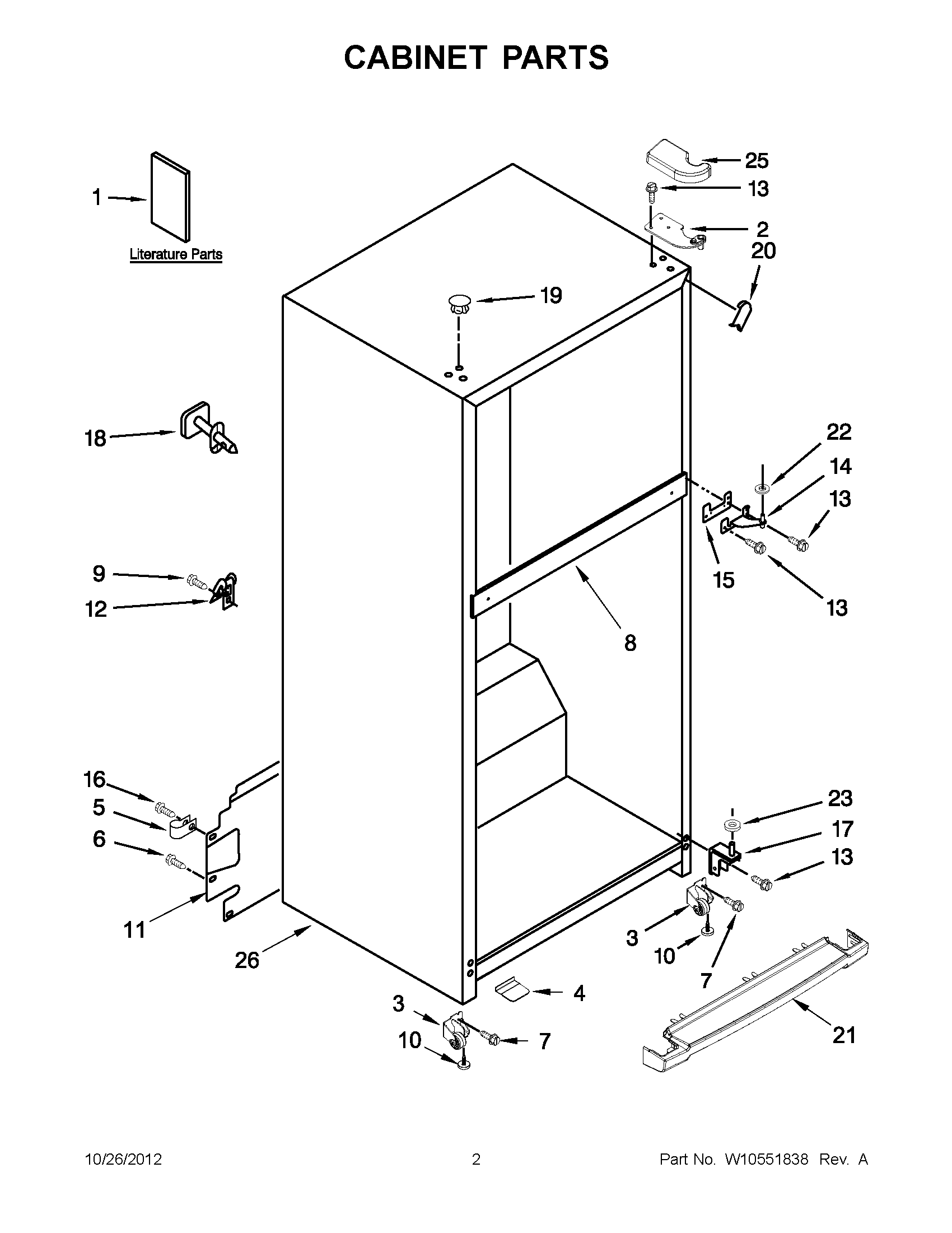

5VWT51SFYF00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	WPW10359256 Whirlpool Cabinet Roller
3	WPW10359255 Whirlpool Cabinet Wheel
4	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
4	WPW10353932 Whirlpool Refrigerator Grille Endcap
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	COVER, UNIT
12	489348 Whirlpool Refrigerator Tube Clamp
13	WP489497 Whirlpool Screw
14	WP2254618 Whirlpool Center Door Hinge
15	WP2183852 Whirlpool Refrigerator Shim
16	WP488729 Whirlpool Refrigerator Door Screw
17	WP2254473 Whirlpool Refrigerator Door Hinge
19	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
19	WP2151652 Whirlpool Refrigerator Button Plug
20	W10851579 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
21	WPW10353941 Whirlpool Refrigerator Grille
21	WPW10300129 Whirlpool Refrigerator Grille
22	WP489467 Whirlpool Hinge Shim
23	WP487576 Whirlpool Washer
25	W10353947A Whirlpool Refrigerator Cover
25	W10331560A Whirlpool Refrigerator Cover
25	COVER, HINGE (WHITE LS)
25	W10353950A Whirlpool Refrigerator Cover
26	CABINET (NOT A SERVICEABLE PART)
