5VWT51SFYF00 04 – FREEZER DOOR PARTS

5VWT51SFYF00 04 – FREEZER DOOR PARTS

Written by

in

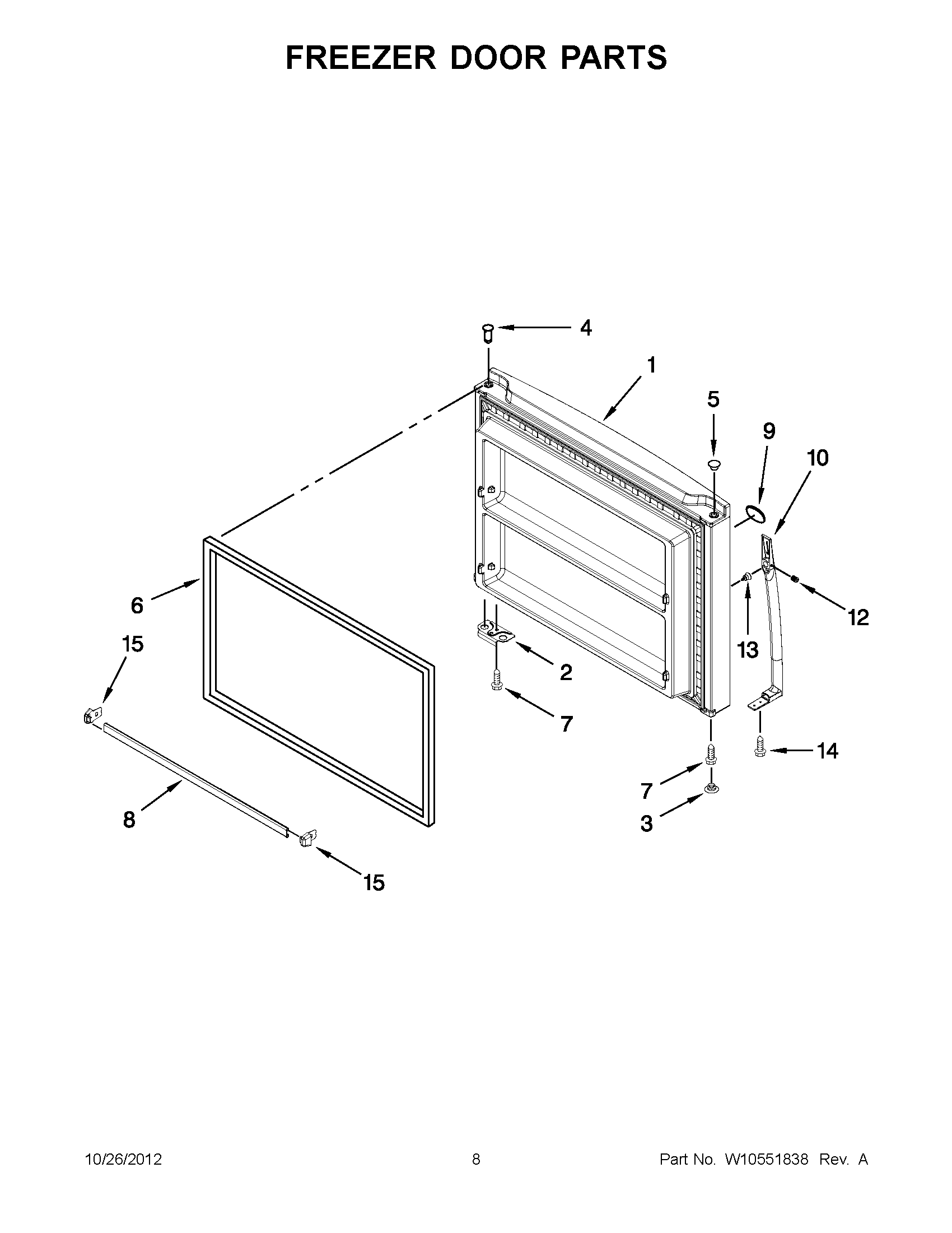

5VWT51SFYF00 04 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (WHITE)
1LW10353323 Whirlpool Refrigerator Door Service Kit
2W11745278 Whirlpool Bracket
3WP2151652 Whirlpool Refrigerator Button Plug
3WPW10520307 Whirlpool Refrigerator Replacement Plug Button
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6WHITE DOOR GASKET-FIP
6W10249196 Whirlpool Refrigerator Gasket FIP
7WP681249 Whirlpool Screw Assembly
8WPW10469912 Whirlpool Refrigerator Door Trim
9W11178521 Whirlpool Dishwasher Nameplate
10WPW10498429 Whirlpool Refrigerator Handle
10WPW10646617 Whirlpool Refrigerator Handle
12SCREW, SET
13WPW10170540 Whirlpool Screw
14WP489357 Whirlpool Recessed Screw
15CAP, TRIM END (RIGHT HAND)
15WPW10338485 Whirlpool Refrigerator End Cap
