5VWT51SFYF00 05 – REFRIGERATOR DOOR

5VWT51SFYF00 05 – REFRIGERATOR DOOR

Written by

in

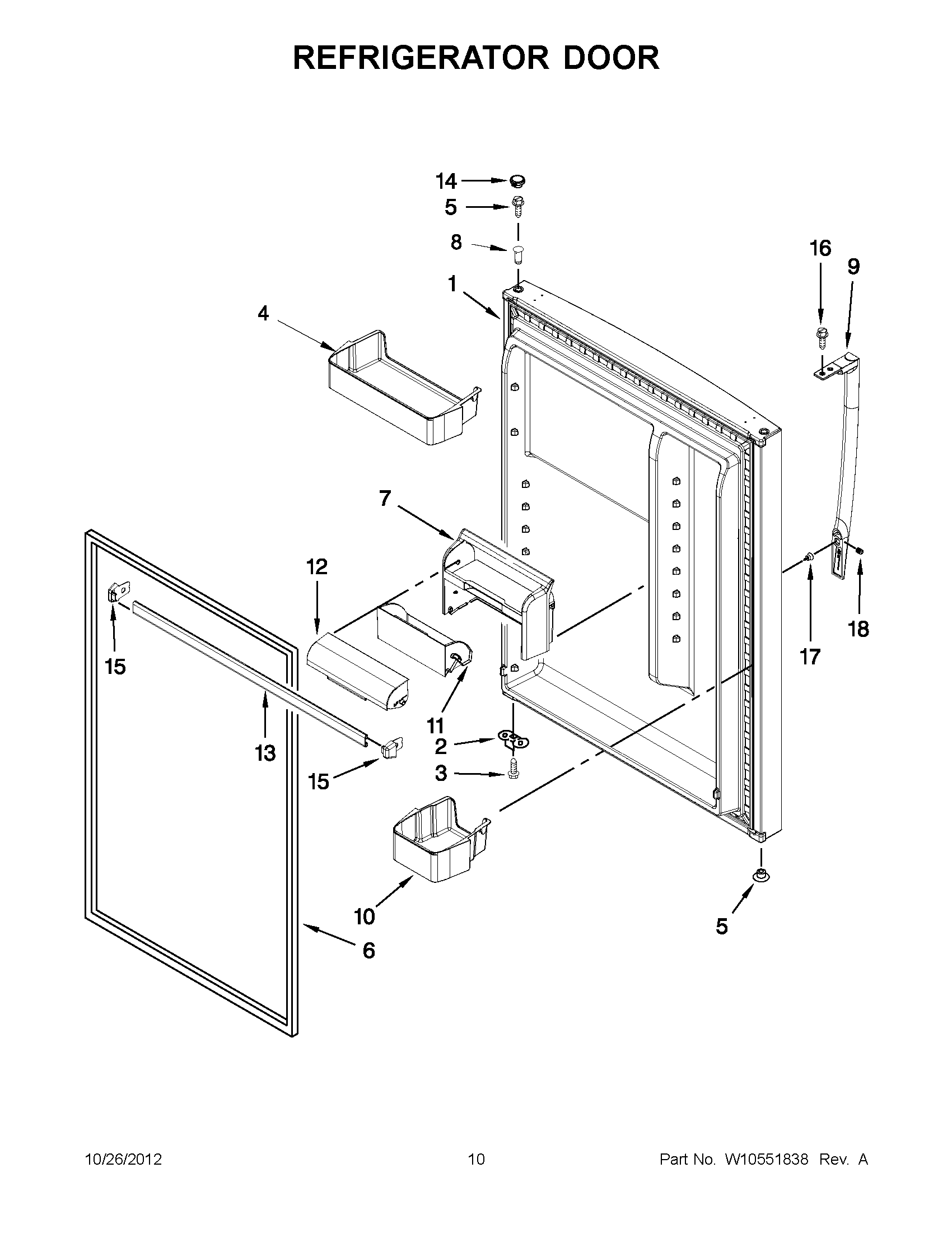

5VWT51SFYF00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (WHITE)
1LW10354005 Whirlpool Refrigerator Door FIP Silver
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4WPW10308868 Whirlpool Refrigerator Door Bin
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5PLUG, HINGE SLEEVE (GREY)
6W10249195 Whirlpool Refrigerator Door Gasket
62159061 Whirlpool Refrigerator Door Gasket
7HOUSING, COMPARTMENT
8W11189115 Whirlpool Refrigerator Thimble
9WPW10646617 Whirlpool Refrigerator Handle
9WPW10498429 Whirlpool Refrigerator Handle
10WPW10308869 Whirlpool Door Bin
11BIN, TILT OUT
12WPW10308843 Whirlpool Refrigerator Door Compressor
13WPW10469911 Whirlpool Refrigerator Door Trim
14WPW10520307 Whirlpool Refrigerator Replacement Plug Button
14WP2151652 Whirlpool Refrigerator Button Plug
15CAP, TRIM END (RIGHT HAND)
15WPW10338485 Whirlpool Refrigerator End Cap
16WP489357 Whirlpool Recessed Screw
17WPW10170540 Whirlpool Screw
18SCREW, SET
