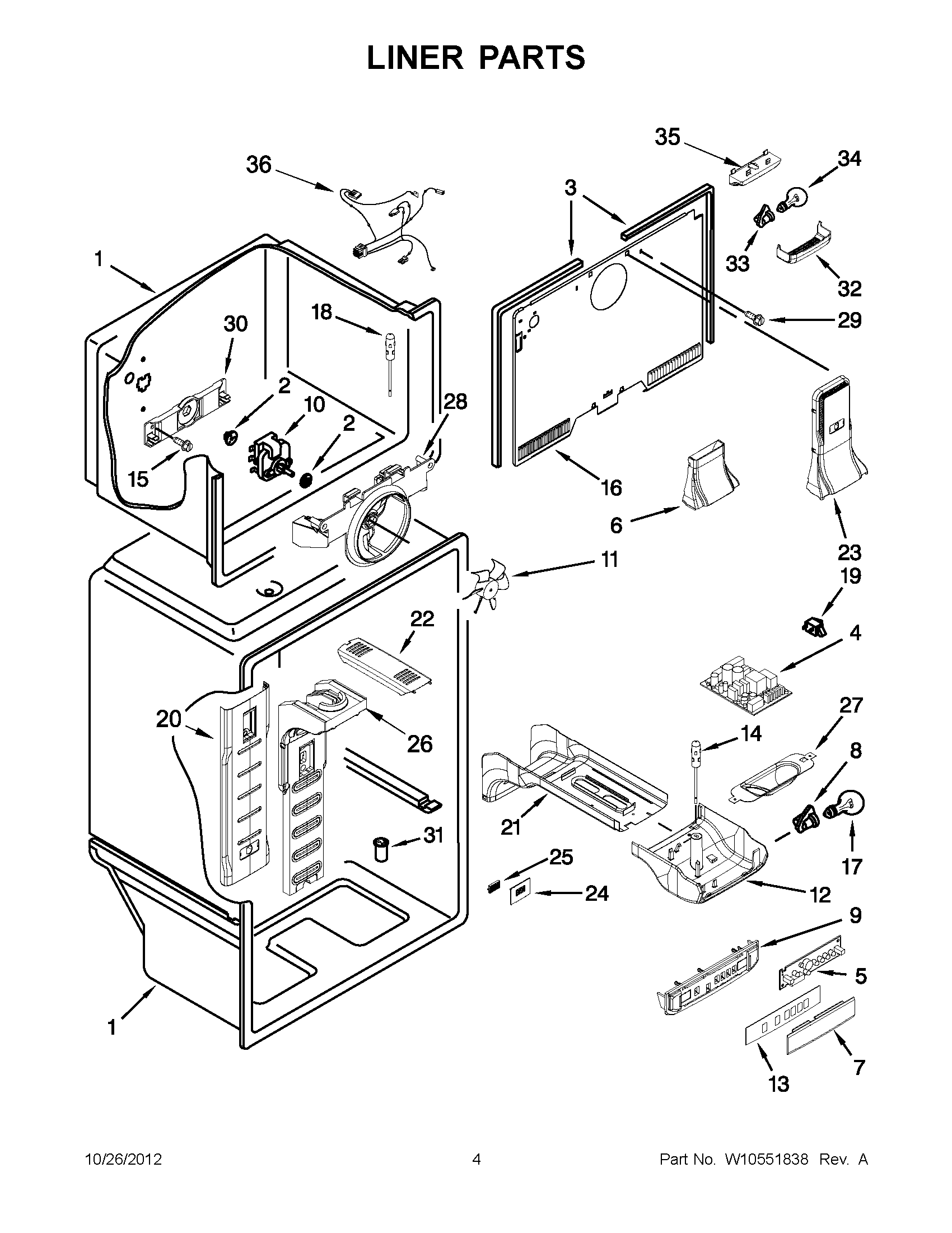

5VWT51SFYW00 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10392194-includeCORE Whirlpool WPW10392194 Refrigerator Electronic Control Board + Core
5	WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core
6	ASSEMBLY, TOWER CONNECTION
7	LENS, FASCIA
9	FASCIA, CONTROL
10	MOTOR-EVAP
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10459450 Whirlpool Refrigerator Control Box
13	OVERLAY
14	WPW10384183 Whirlpool Thermistor
15	WP488163 Whirlpool Refrigerator Screw
16	COVER, EVAPORATOR
17	W11618980 Whirlpool Light Bulb
18	THERMISTOR-REFRIGERATOR
19	W11384469 Whirlpool Door Switch
20	WPW10356895 Whirlpool Refrigerator Cover
21	WPW10305175 Whirlpool Refrigerator Cover
22	LIGHT COVER, RC
23	TOWER, AIR
24	WPW10330850 Whirlpool Refrigerator Grille
25	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26	WPW10395376 Whirlpool Refrigerator Air Tower
27	2223680 Whirlpool Refrigerator Shield
28	W10850162 Whirlpool Refrigerator Orifice
29	WP489478 Whirlpool Refrigerator Screw
30	2254454 Whirlpool Refrigerator Bracket
31	WP2210509 Whirlpool Refrigerator Tub Valve
32	WPW10313918 Whirlpool Refrigerator Light Lens
33	W11661565 Whirlpool Refrigerator Socket
34	W10855002 Whirlpool Light Bulb
35	LIGHT HOUSING, FC
36	WIRE ASSEMBLY, EVAPORATOR FAN
