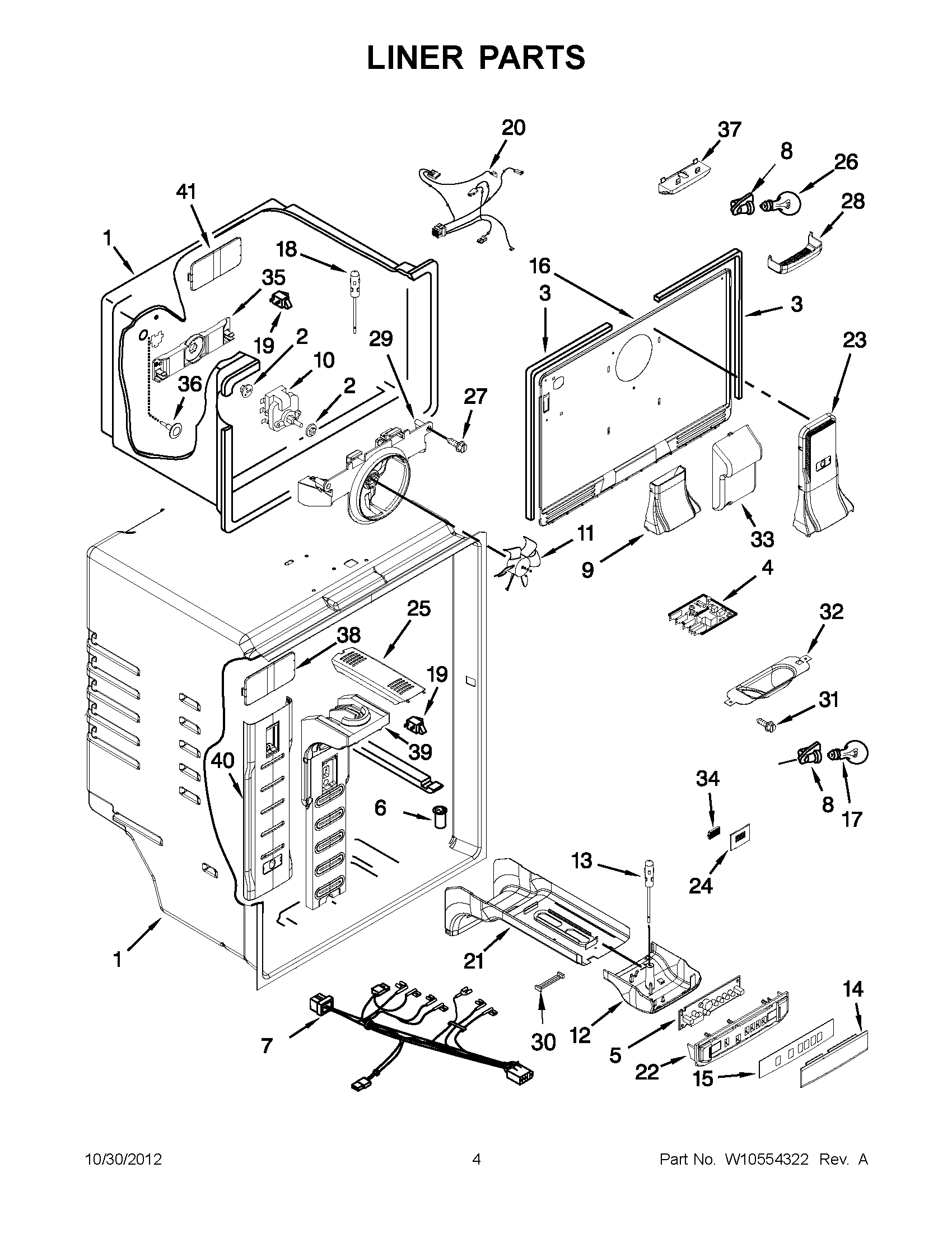

5VWT59SFYF00 02 – LINER PARTS

5VWT59SFYF00 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WPW10392184-includeCORE Whirlpool WPW10392184 Refrigerator Electronic Control Board + Core
5WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core
6WP2210509 Whirlpool Refrigerator Tub Valve
7WIRE ASSEMBLY, CONTROL BOX
8W11661565 Whirlpool Refrigerator Socket
9ASSEMBLY, TOWER CONNECTION
10MOTOR-EVAP
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10459450 Whirlpool Refrigerator Control Box
13WPW10384183 Whirlpool Thermistor
14LENS, FASCIA
15OVERLAY
16COVER, EVAPORATOR
17W11618980 Whirlpool Light Bulb
18THERMISTOR-REFRIGERATOR
19W11384469 Whirlpool Door Switch
20WIRE ASSEMBLY, EVAPORATOR FAN
21WPW10305175 Whirlpool Refrigerator Cover
22FASCIA, CONTROL
23TOWER, AIR
24WPW10330850 Whirlpool Refrigerator Grille
25LIGHT COVER, RC
26W10855002 Whirlpool Light Bulb
27WP488163 Whirlpool Refrigerator Screw
28WPW10313918 Whirlpool Refrigerator Light Lens
29W10850162 Whirlpool Refrigerator Orifice
30WIRE, JUMPER
31WP489174 Whirlpool Refrigerator Screw
32WPW10314195 Whirlpool Refrigerator Shield
33WPW10339203 Whirlpool Refrigerator Tube Cover
34W10311524 Whirlpool FreshFlow Refrigerator Air Filter
352254454 Whirlpool Refrigerator Bracket
36WP941839 Whirlpool Refrigerator Button Plug
37WPW10313917 Whirlpool Refrigerator Housing
38W10336009 Whirlpool Refrigerator Cover
39WPW10395376 Whirlpool Refrigerator Air Tower
40WPW10356895 Whirlpool Refrigerator Cover
41SCREW CUP
