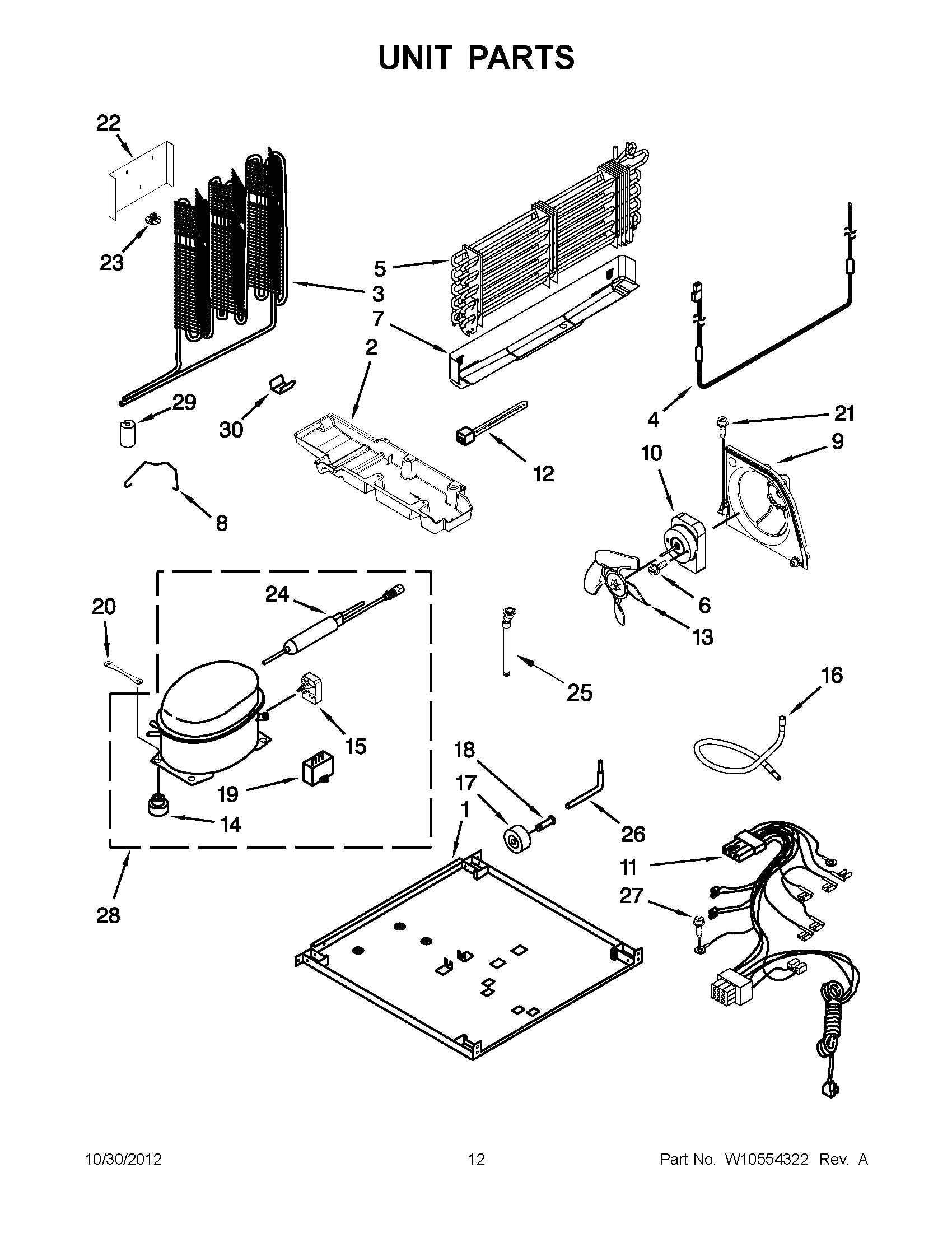

5VWT59SFYW00 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10890667 Whirlpool Refrigerator Drip Pan
3	WPW10342567 Whirlpool Refrigerator Condenser
4	W10405108 Whirlpool Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
7	WPW10314195 Whirlpool Refrigerator Shield
8	Strap, Bale
9	WP2315541 Whirlpool Refrigerator Air Baffle
10	WP2321271 Whirlpool Refrigerator Condenser Motor
11	WIRE ASSEMBLY, UNIT
12	WPW10339879 Whirlpool Wire Tie
13	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2312007 Whirlpool Refrigerator Start Device
16	W10466682 Whirlpool Refrigerator Tube
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	2321245 Whirlpool Refrigerator Capacitor
20	W10236396 Whirlpool Refrigerator Strap
21	W11501418 Whirlpool Refrigerator Screw
22	W10349514 Whirlpool Refrigerator Air Baffle
23	W10296661 Whirlpool Refrigerator Clip
24	W10843121 Whirlpool Refrigerator Tube
25	W11190084 Whirlpool Refrigerator Drain Tube
26	2154109 Whirlpool Refrigerator Tube
27	WP489128 Whirlpool Refrigerator Screw
28	W10183407 Whirlpool Refrigerator Compressor
29	W10852725 Whirlpool Refrigerator Grommet
30	W10683556 Whirlpool Refrigerator Clip
