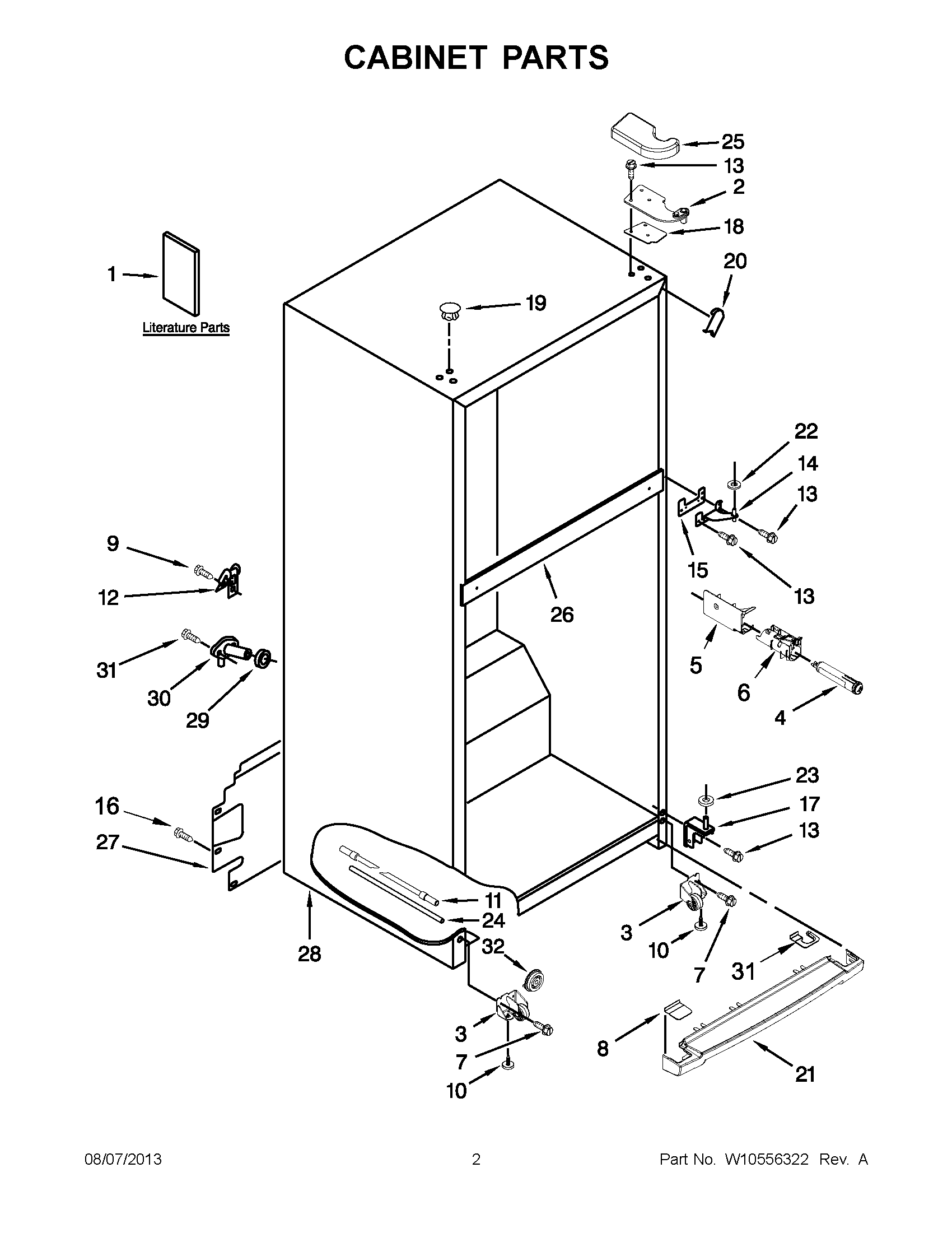

5VWT71REYF00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	WPW10306392 Whirlpool Refrigerator Filter Cover
6	W10844267 Whirlpool Refrigerator Housing
7	BOLT
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	TUBE, FILTER INLET
12	489348 Whirlpool Refrigerator Tube Clamp
13	WP489497 Whirlpool Screw
14	WP2254618 Whirlpool Center Door Hinge
15	WP2183852 Whirlpool Refrigerator Shim
16	WP488729 Whirlpool Refrigerator Door Screw
17	WP2254473 Whirlpool Refrigerator Door Hinge
18	W10883637 Whirlpool Refrigerator Hinge Shim
19	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
20	W10851579 Whirlpool Refrigerator Filler
21	WPW10353941 Whirlpool Refrigerator Grille
22	WP489467 Whirlpool Hinge Shim
23	WP487576 Whirlpool Washer
24	WPW10306394 Whirlpool Refrigerator Water Tube
25	W10353947A Whirlpool Refrigerator Cover
25	W10353950A Whirlpool Refrigerator Cover
27	COVER, UNIT
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	WPW10601149 Whirlpool Refrigerator Fitting
31	ENDCAP, GRILLE HINGE (MIDNIGHT GREY)
32	W10331226 Whirlpool Refrigerator Clip
