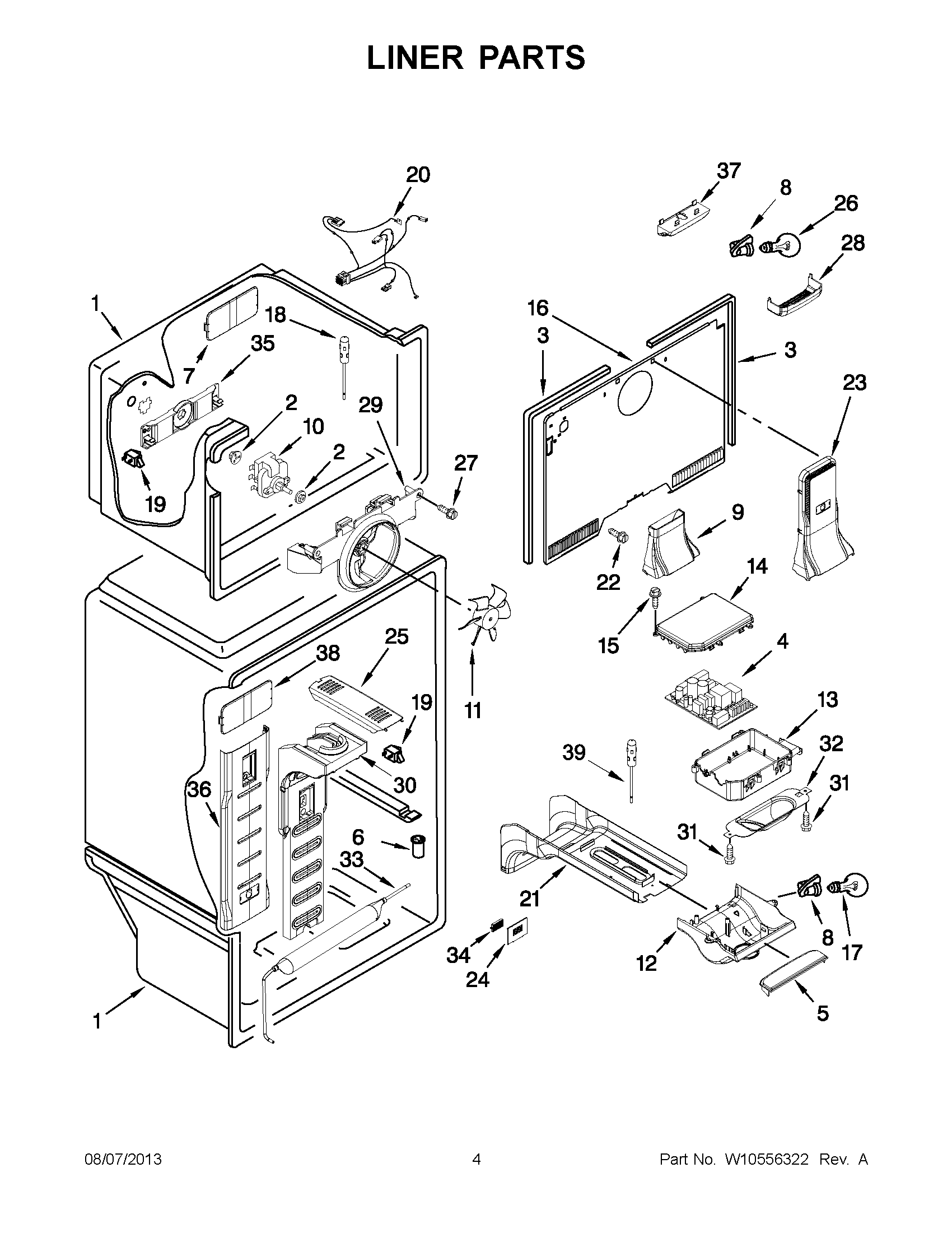

5VWT71REYF00 02 – LINER PARTS

5VWT71REYF00 02 – LINER PARTS

Written by

in

5VWT71REYF00 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4W11034365 Whirlpool Refrigerator Electronic Control Board
4W11034365-includeCORE Whirlpool W11034365 Refrigerator Electronic Control Board + Core
5FASCIA CONTROL
6WP2210509 Whirlpool Refrigerator Tub Valve
7SCREW CUP
8W11661565 Whirlpool Refrigerator Socket
9ASSEMBLY, TOWER CONNECTION
10MOTOR-EVAP
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10316942 Whirlpool Refrigerator Control Box
13ENCLOSURE, ELECTRONIC CONTROL
14W10313215 Whirlpool Refrigerator Box Cover
15WPW10171469 Whirlpool Refrigerator Screw
16COVER, EVAPORATOR
17W11618980 Whirlpool Light Bulb
18THERMISTOR-REFRIGERATOR
19W11384469 Whirlpool Door Switch
20WIRE ASSEMBLY, EVAPORATOR FAN
21WPW10305175 Whirlpool Refrigerator Cover
22WPW10142283 Whirlpool Refrigerator Screw
23TOWER, AIR
24WPW10330850 Whirlpool Refrigerator Grille
25LIGHT COVER, RC
26W10855002 Whirlpool Light Bulb
27WP488163 Whirlpool Refrigerator Screw
28WPW10313918 Whirlpool Refrigerator Light Lens
29W10850162 Whirlpool Refrigerator Orifice
30WPW10395376 Whirlpool Refrigerator Air Tower
31WP489174 Whirlpool Refrigerator Screw
322223680 Whirlpool Refrigerator Shield
33WPW10364161 Whirlpool Refrigerator Reservoir
34W10311524 Whirlpool FreshFlow Refrigerator Air Filter
352254454 Whirlpool Refrigerator Bracket
36WPW10356895 Whirlpool Refrigerator Cover
37LIGHT HOUSING, FC
38W10336009 Whirlpool Refrigerator Cover
39WP2188820 Whirlpool Refrigerator Thermistor
