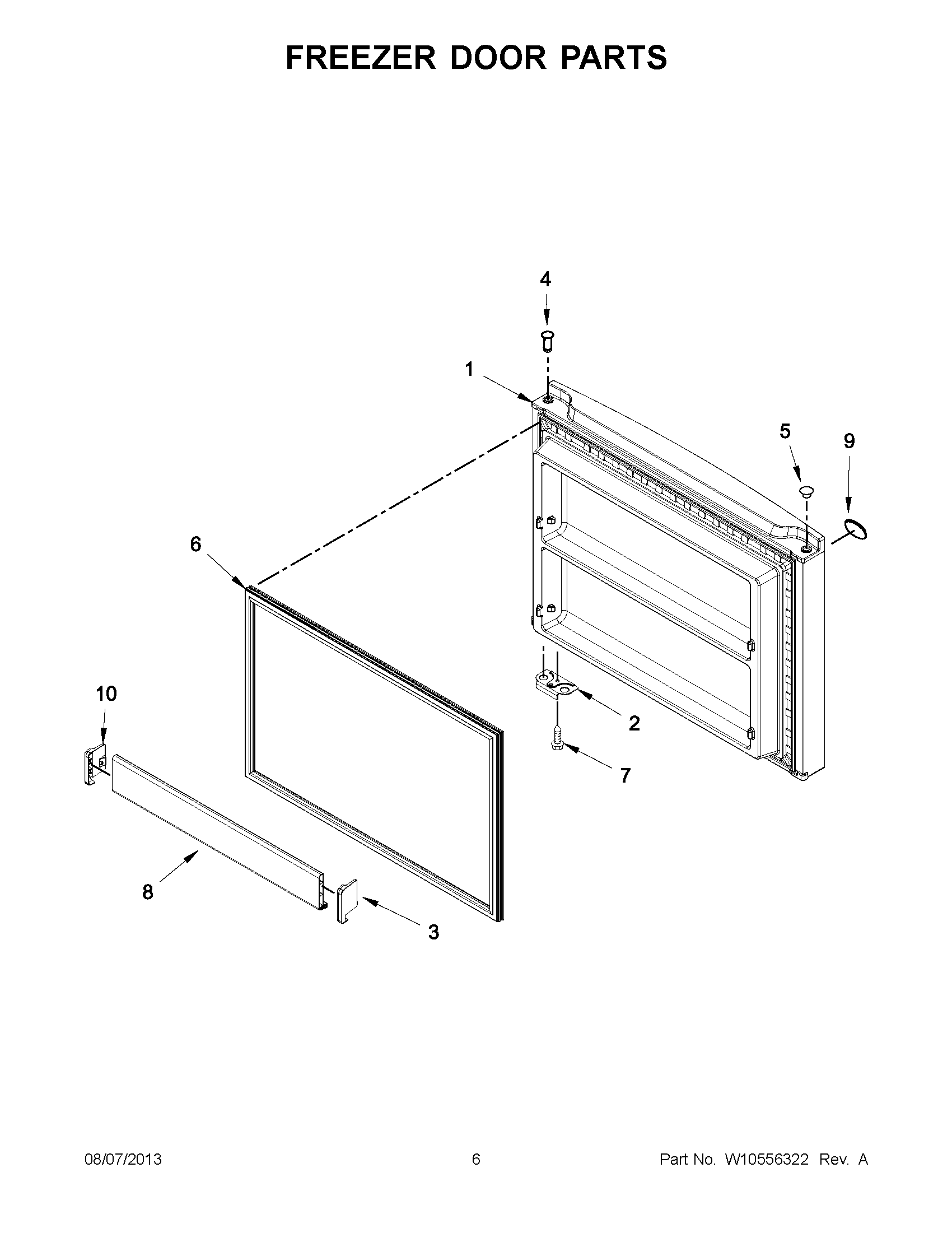

5VWT71REYF00 03 – FREEZER DOOR PARTS

5VWT71REYF00 03 – FREEZER DOOR PARTS

Written by

in

5VWT71REYF00 03 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (SPARKLE STEEL)
2W11745278 Whirlpool Bracket
3CAP, TRIM END (RIGHT HAND)
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
6W10249196 Whirlpool Refrigerator Gasket FIP
7WP681249 Whirlpool Screw Assembly
8WPW10469912 Whirlpool Refrigerator Door Trim
9W11178521 Whirlpool Dishwasher Nameplate
10WPW10338485 Whirlpool Refrigerator End Cap
