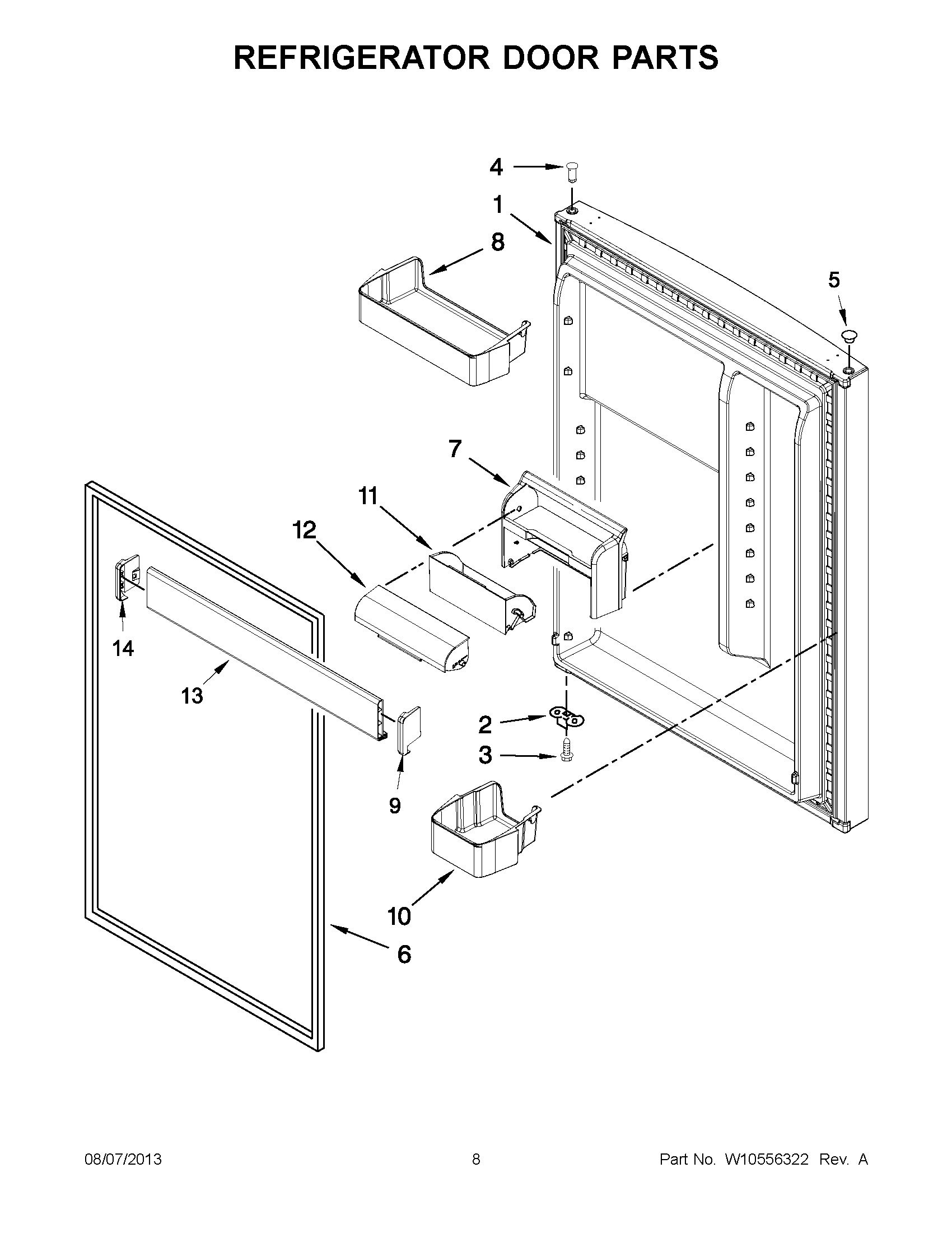

5VWT71REYF00 04 – REFRIGERATOR DOOR PARTS

5VWT71REYF00 04 – REFRIGERATOR DOOR PARTS

Written by

in

5VWT71REYF00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.6) (SPARKLE STEEL)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5PLUG, HINGE SLEEVE (GREY)
6W10249195 Whirlpool Refrigerator Door Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9CAP, TRIM END (RIGHT HAND)
10WPW10308869 Whirlpool Door Bin
11BIN, TILT OUT
12WPW10308843 Whirlpool Refrigerator Door Compressor
13WPW10469911 Whirlpool Refrigerator Door Trim
14WPW10338485 Whirlpool Refrigerator End Cap
