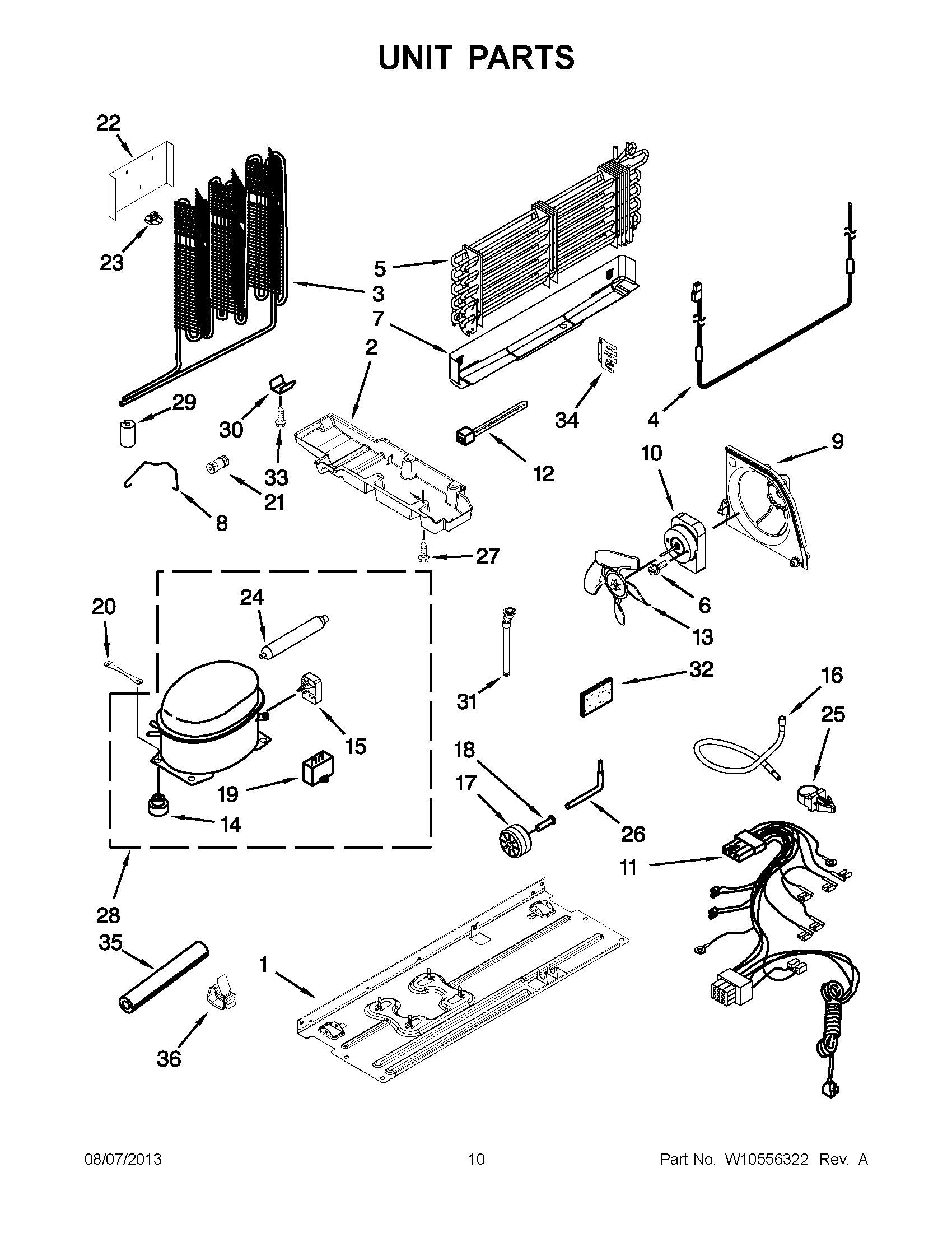

5VWT71REYF00 05 – UNIT PARTS

5VWT71REYF00 05 – UNIT PARTS

Written by

in

5VWT71REYF00 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
1	W11396825 Whirlpool Plate
2	W10890667 Whirlpool Refrigerator Drip Pan
3	WPW10342567 Whirlpool Refrigerator Condenser
4	W10405108 Whirlpool Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	Strap, Bale
9	WP2315541 Whirlpool Refrigerator Air Baffle
10	WP2321271 Whirlpool Refrigerator Condenser Motor
11	WIRE ASSY, UNIT
12	WPW10339879 Whirlpool Wire Tie
13	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2312007 Whirlpool Refrigerator Start Device
16	W10466682 Whirlpool Refrigerator Tube
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	2321245 Whirlpool Refrigerator Capacitor
20	W10236396 Whirlpool Refrigerator Strap
21	WPW10271543 Whirlpool Refrigerator Connector
22	W10349515 Whirlpool Refrigerator Air Baffle
23	W10296661 Whirlpool Refrigerator Clip
24	W10843121 Whirlpool Refrigerator Tube
25	2219077 Whirlpool Refrigerator Clip
26	W11676464 Whirlpool Tube
27	WP489128 Whirlpool Refrigerator Screw
28	W10183407 Whirlpool Refrigerator Compressor
29	W10852725 Whirlpool Refrigerator Grommet
30	W10683556 Whirlpool Refrigerator Clip
31	W11190084 Whirlpool Refrigerator Drain Tube
32	W11553819 Whirlpool Refrigerator Insulation
33	W11544659 Whirlpool Refrigerator Screw
34	W10314197 Whirlpool Refrigerator Bracket
35	2264838 Whirlpool Refrigerator Sleeve
36	W10812039 Whirlpool Clip
