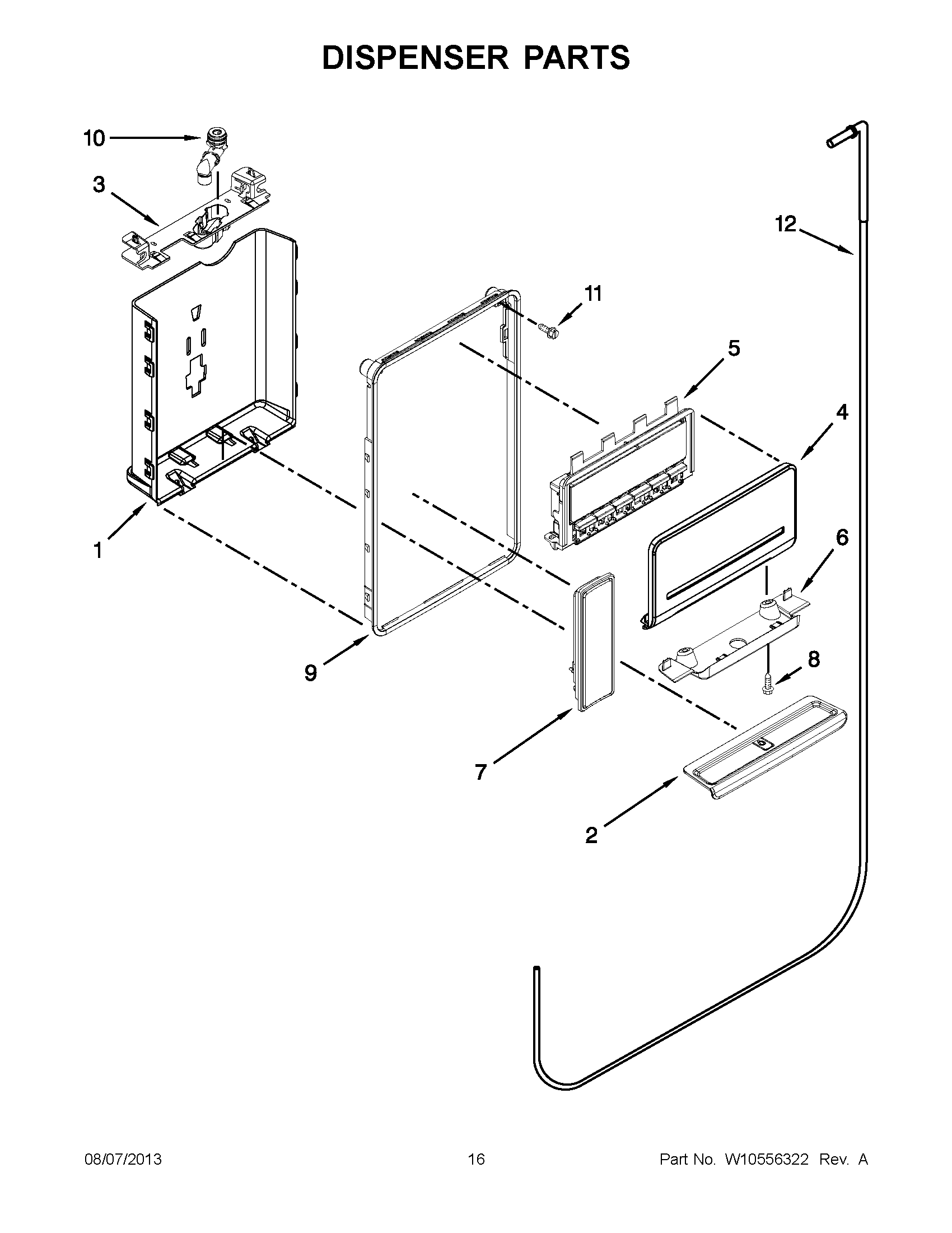

5VWT71REYF00 08 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2TRAY-DRIP
3W11616802 Whirlpool Separator Assembly
4FASCIA, SPARSH (SILVER)
5W10836784 Whirlpool Refrigerator Electronic Control Board
6W10356029 Whirlpool Refrigerator Separator
7W11715936 Whirlpool Pad
8WP3400065 Whirlpool Refrigerator Screw
9W10356017 Whirlpool Refrigerator Dispenser Trim
10WP2305235 Whirlpool Refrigerator Spigot
11WP8281163 Whirlpool Refrigerator Screw
12WPW10238094 Whirlpool Refrigerator Water Tube
