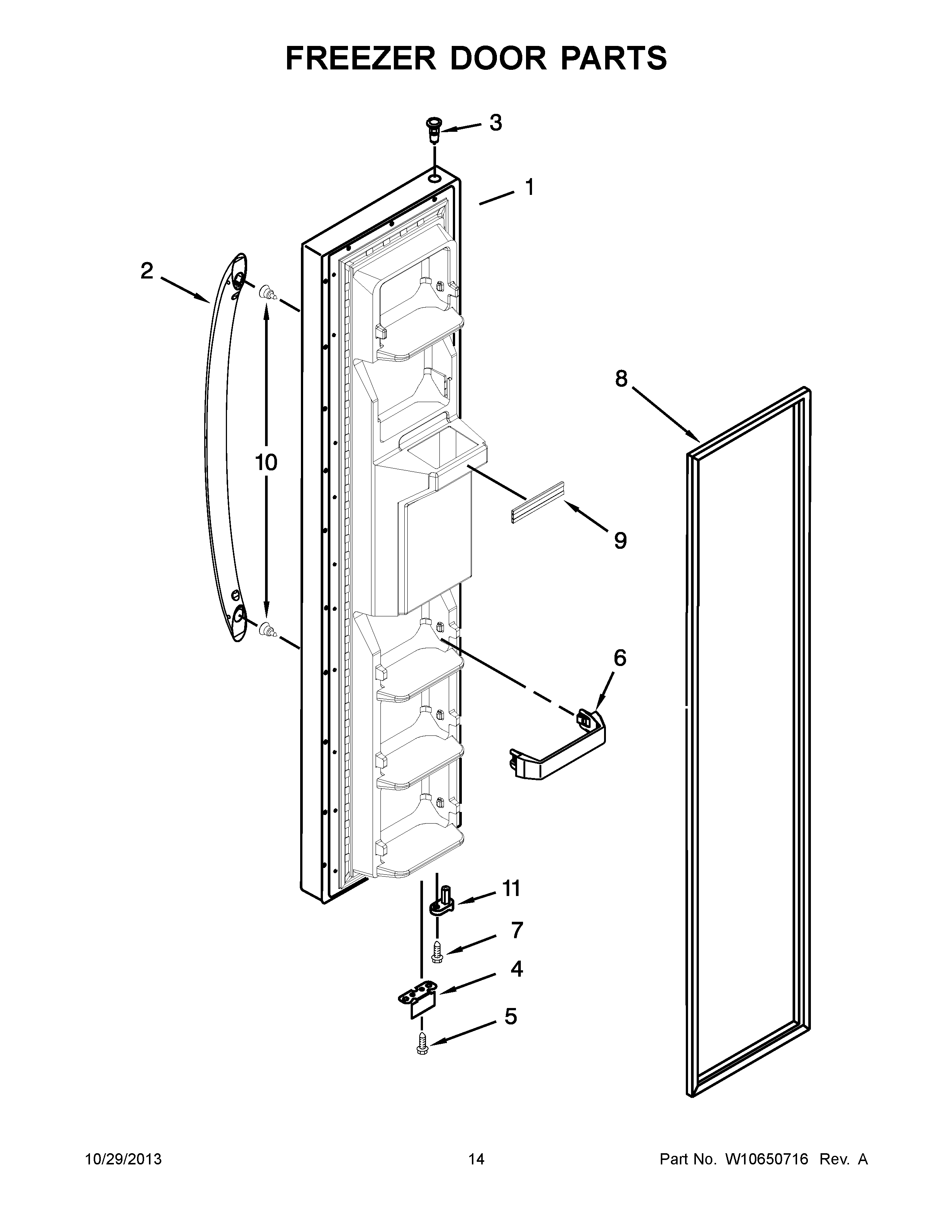

5WRS22FDBF00 08 – FREEZER DOOR PARTS

5WRS22FDBF00 08 – FREEZER DOOR PARTS

Written by

in

5WRS22FDBF00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (SPARKLE STEEL)
2WPW10670421 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
42306940 Whirlpool Refrigerator Bracket
5WP489483 Whirlpool Screw
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
8W10136733 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11WP2223752 Whirlpool Refrigerator Door Cam
