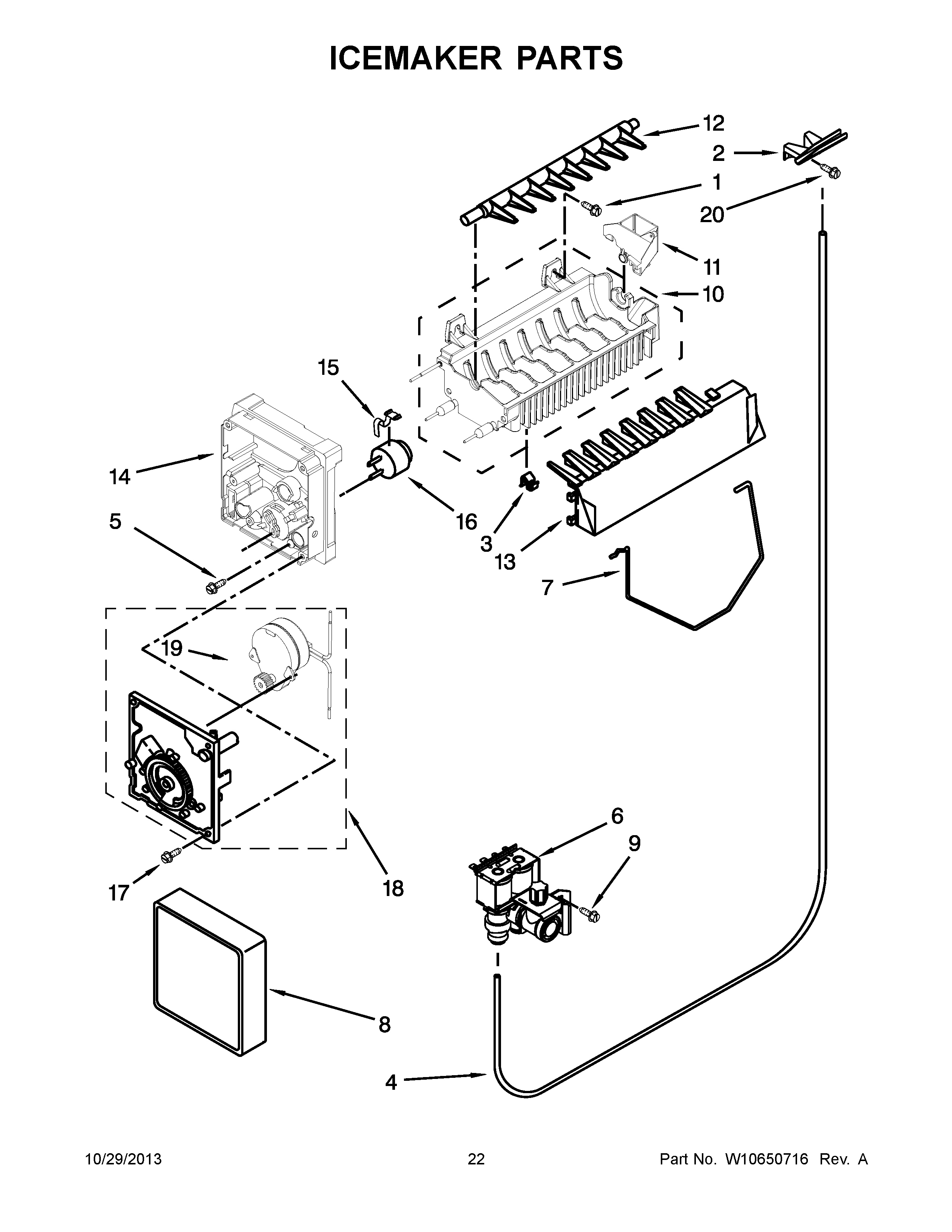

5WRS22FDBF00 12 – ICEMAKER PARTS

5WRS22FDBF00 12 – ICEMAKER PARTS

Written by

in

5WRS22FDBF00 12 – ICEMAKER PARTS

Products

PositionProduct
1WP488163 Whirlpool Refrigerator Screw
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5W10001280 Whirlpool Refrigerator Screw
6WPW10158157 Whirlpool Refrigerator Inlet Valve
7W11342242 Whirlpool Refrigerator Ice Level Arm
8COVER
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10122523 Whirlpool Refrigerator Ice Mold
11W11676540 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WPW10122563 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
17W10001240 Whirlpool Refrigerator Screw
18W10190933 Whirlpool Refrigerator Motor Assembly
19CABINET (NOT A SERVICEABLE PART)
100ICEMAKER ASSEMBLY (COMPLETE)
