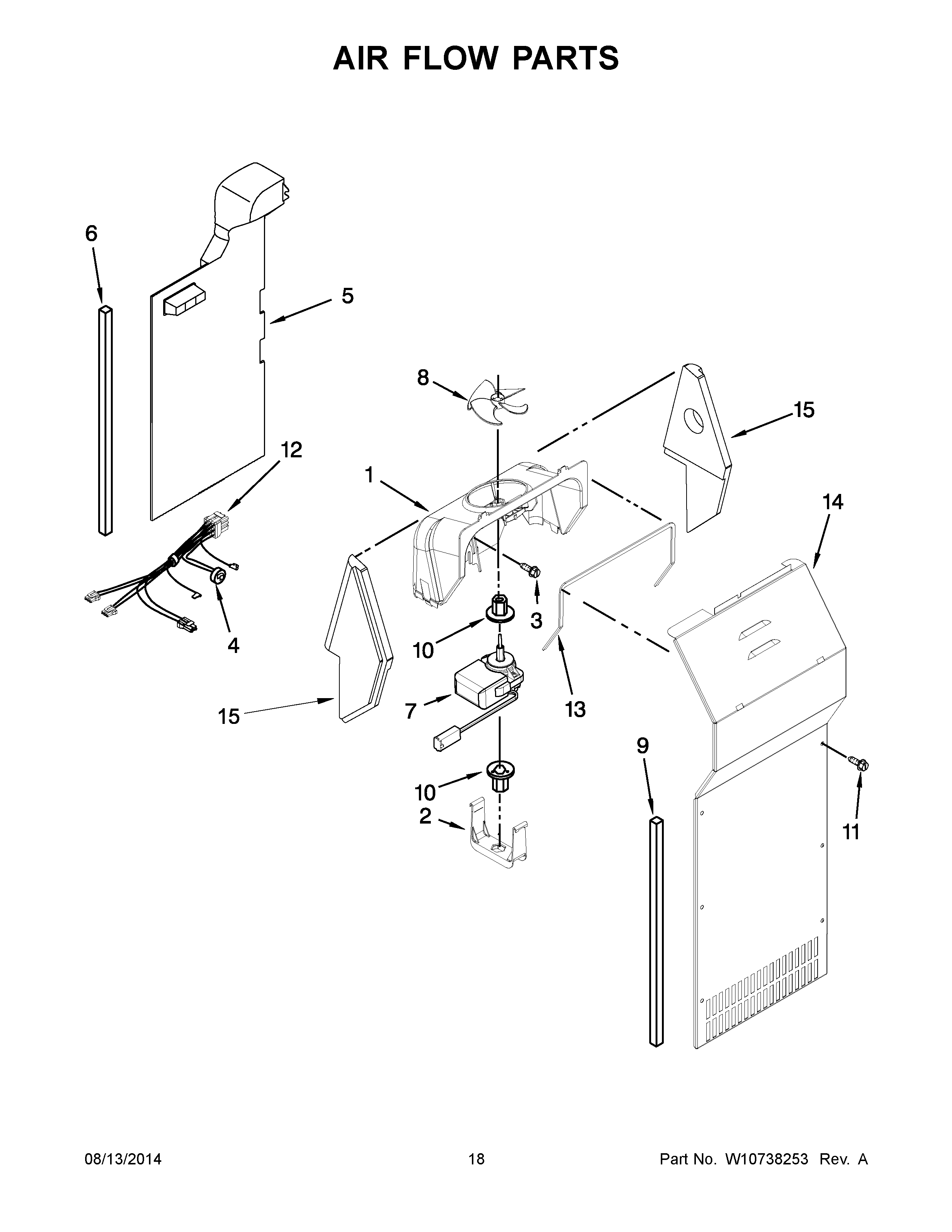

5WRS22FDBF02 10 – AIR FLOW PARTS

5WRS22FDBF02 10 – AIR FLOW PARTS

Written by

in

5WRS22FDBF02 10 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
4Bi-Metal, Defrost
5W10166220 Whirlpool Refrigerator Air Duct
64388500 Whirlpool Refrigerator Gasket
7WP2321275 Whirlpool Refrigerator Evaporator Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11WP693995 Whirlpool Screw
12W10242395 Whirlpool Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14COVER, EVAPORATOR
154388358 Whirlpool Refrigerator Support Bracket
