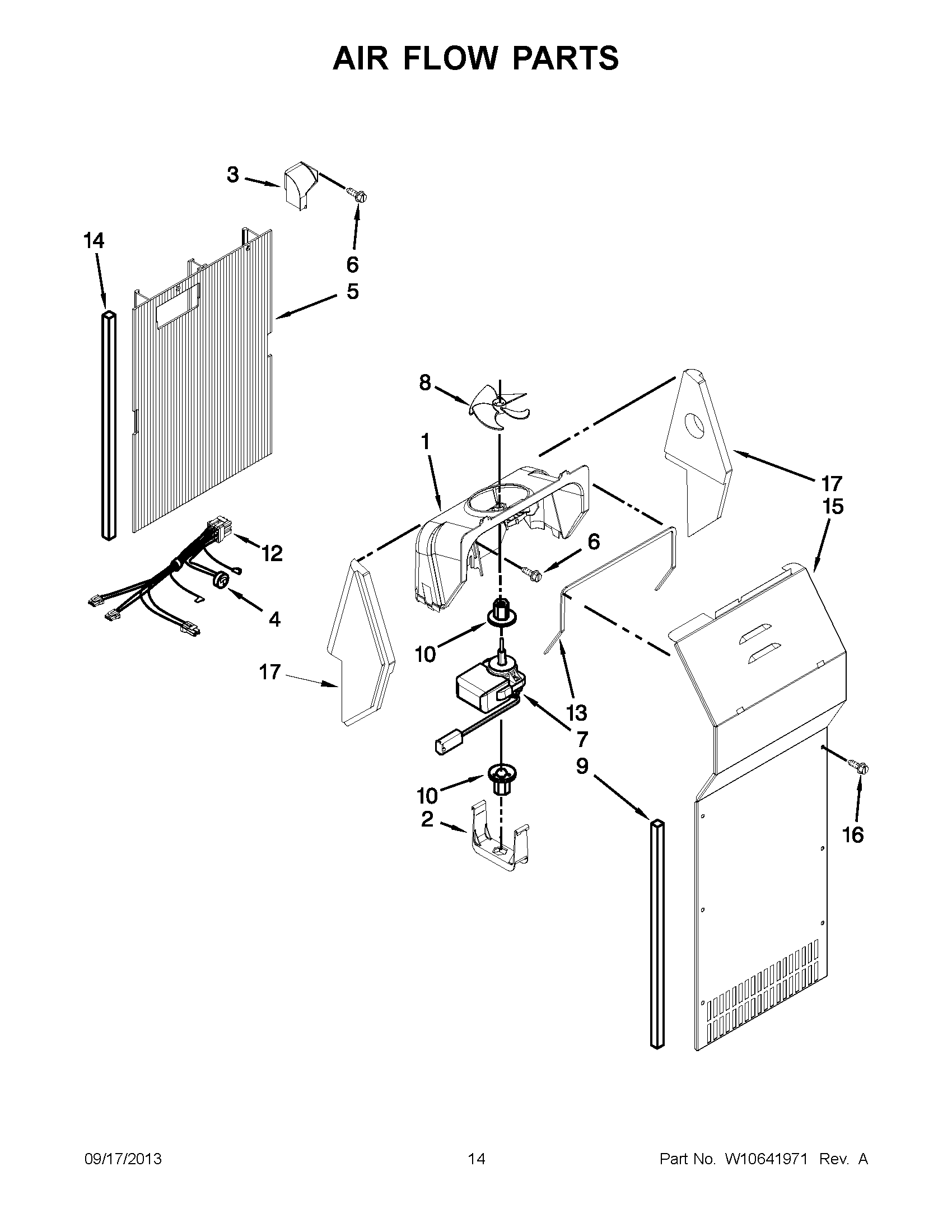

5WRS22KNBF00 08 – AIR FLOW PARTS

5WRS22KNBF00 08 – AIR FLOW PARTS

Written by

in

5WRS22KNBF00 08 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3W10803597 Whirlpool Refrigerator Air Scoop
4Bi-Metal, Defrost
5Air Duct Freezer
6WP489478 Whirlpool Refrigerator Screw
7WP2321275 Whirlpool Refrigerator Evaporator Motor
8WP2169142 Whirlpool Fan Blade
10WP2176759 Whirlpool Refrigerator Grommet
12W10242395 Whirlpool Wire Harness
13WP2304241 Whirlpool Refrigerator Gasket
144388500 Whirlpool Refrigerator Gasket
15COVER, EVAPORATOR
164389654 Whirlpool Screw
174388358 Whirlpool Refrigerator Support Bracket
