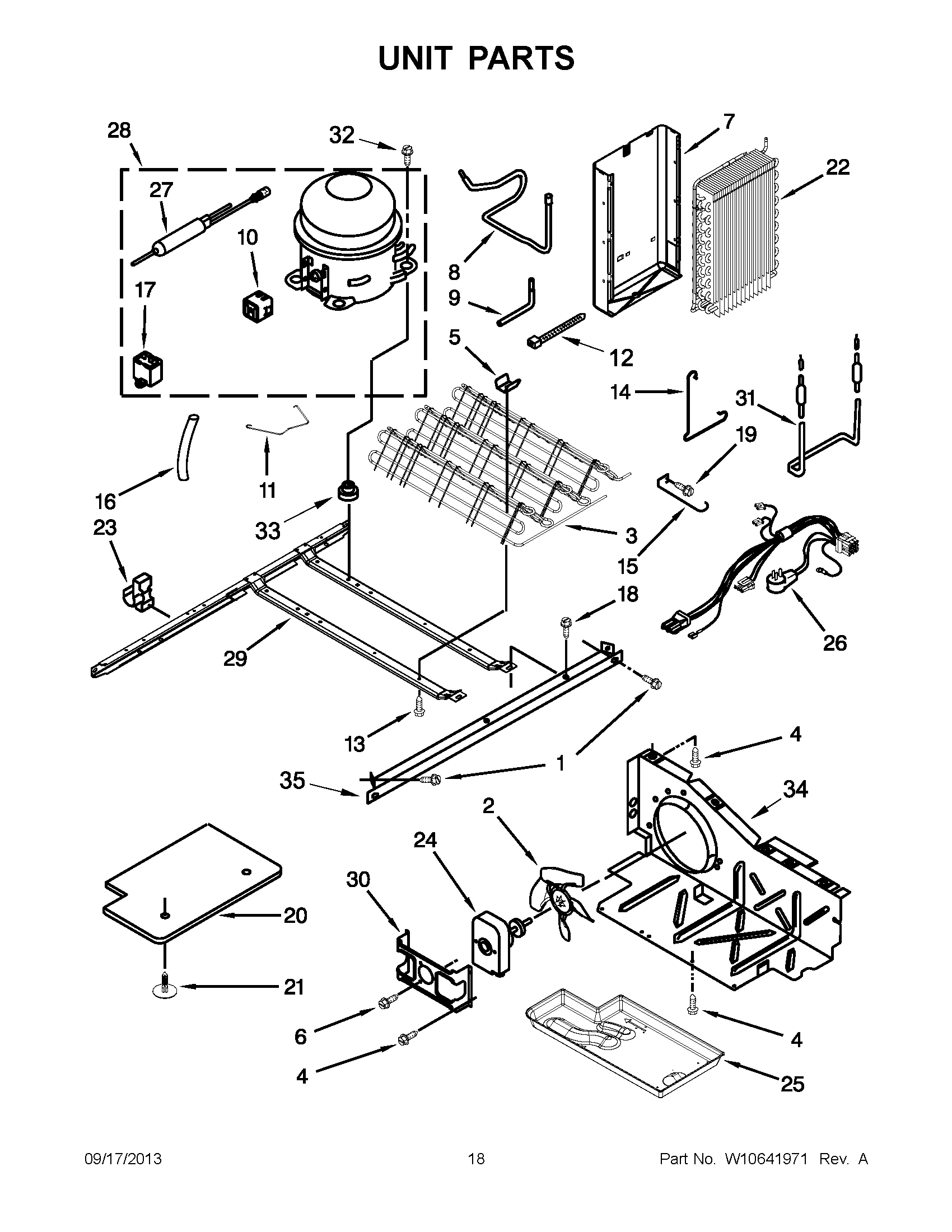

5WRS22KNBF00 10 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CORD ADAPTER, EUROPEAN
NI	10A CORD LOCK
NI	CABINET (NOT A SERVICEABLE PART)
NI	CORD ADAPTER, AUSTRAILIAN
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CORD ADAPTER, BRITISH
1	489340 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WPW10194474 Whirlpool Refrigerator Shield
8	2205764 Whirlpool Refrigerator Tube
9	W10858105 Whirlpool Refrigerator Tube
10	WP2312007 Whirlpool Refrigerator Start Device
11	W11661170 Whirlpool Clip
12	WPW10339879 Whirlpool Wire Tie
13	W11544659 Whirlpool Refrigerator Screw
14	Clamp
15	1105612 Whirlpool Fan Guard
16	SLEEVE
17	2321245 Whirlpool Refrigerator Capacitor
18	WP489427 Whirlpool Refrigerator Screw
19	WP489478 Whirlpool Refrigerator Screw
20	UNIT COVER, BOTTOM
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
23	W10812039 Whirlpool Clip
24	W10837641 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	HARNESS, UNIT
27	WPW10143759 Whirlpool Dryer Filter
28	W10183407 Whirlpool Refrigerator Compressor
29	2304903 Whirlpool Refrigerator Frame
30	WP2181929 Whirlpool Refrigerator Bracket
31	WPW10123612 Whirlpool Heater Assembly
32	SCREW
33	WPW10169124 Whirlpool Refrigerator Grommet
34	BAFFLE, AIR
35	W10207512 Whirlpool Rail Unit
