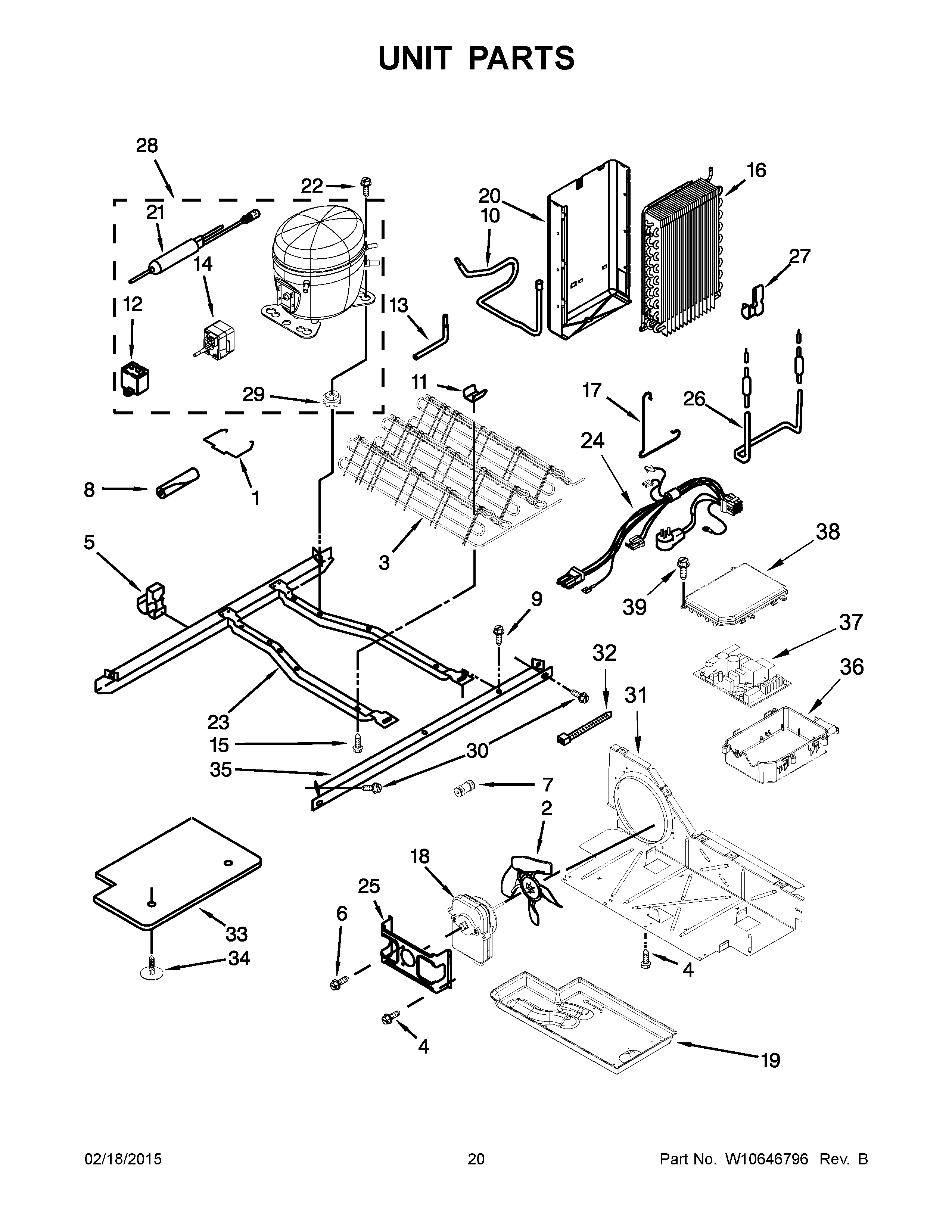

5WRS25FDBF00 11 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	10A CORD LOCK
NI	CORD ADAPTER, BRITISH
NI	CORD ADAPTER, EUROPEAN
NI	CORD ADAPTER, AUSTRAILIAN
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	Strap, Bale
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10812039 Whirlpool Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	WP2205765 Whirlpool Refrigerator Tube
11	W10683556 Whirlpool Refrigerator Clip
12	2321245 Whirlpool Refrigerator Capacitor
13	W10858105 Whirlpool Refrigerator Tube
14	START PROTECT, COMBO PRODUCTION
15	W11544659 Whirlpool Refrigerator Screw
16	WP2188823 Whirlpool Refrigerator Evaporator
18	W10837641 Whirlpool Refrigerator Condenser Motor
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	W10194475 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	SCREW
23	W10196321 Whirlpool Refrigerator Frame
24	HARNESS, UNIT
25	WP2181929 Whirlpool Refrigerator Bracket
26	WPW10123653 Whirlpool Refrigerator Heater
27	Clamp
28	W10183407 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	489340 Whirlpool Refrigerator Screw
31	BAFFLE, AIR
32	WPW10339879 Whirlpool Wire Tie
33	UNIT COVER, BOTTOM
34	489396 Whirlpool Refrigerator Clip
35	W10196313 Whirlpool Refrigerator Rail Unit
36	ENCLOSURE, ELECTRONIC CONTROL
37	W11103354 Whirlpool Electronic Control Board
38	W10313215 Whirlpool Refrigerator Box Cover
39	WPW10171469 Whirlpool Refrigerator Screw
