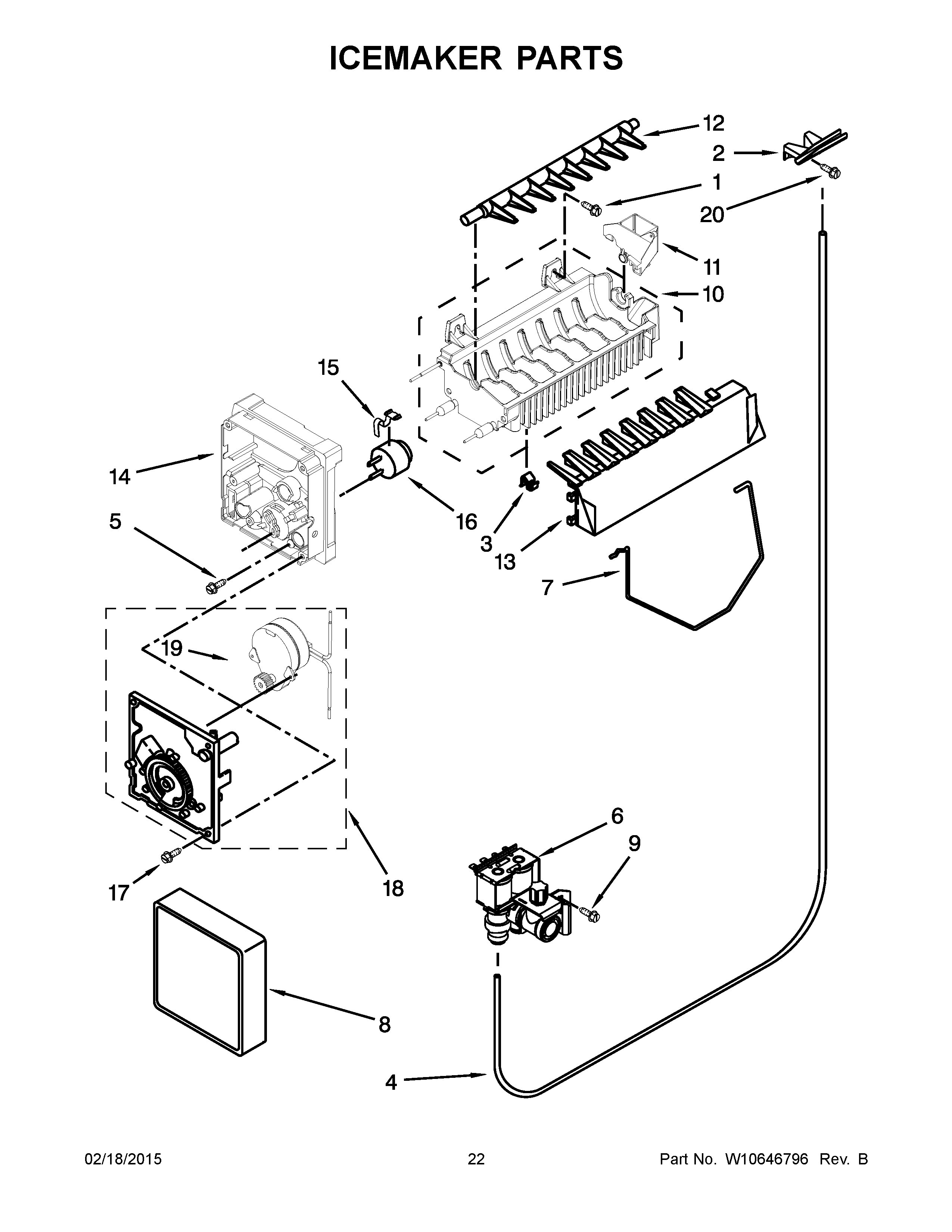

5WRS25FDBF00 12 – ICEMAKER PARTSadmin2025-04-26T12:17:03+00:005WRS25FDBF00 12 – ICEMAKER PARTS ProductsPositionProduct1WP488163 Whirlpool Refrigerator Screw2W11505385 Whirlpool Refrigerator Chute3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5W10001280 Whirlpool Refrigerator Screw6WPW10158157 Whirlpool Refrigerator Inlet Valve7W11342242 Whirlpool Refrigerator Ice Level Arm8COVER9WPW10141625 Whirlpool Refrigerator Screw Assembly10WPW10122523 Whirlpool Refrigerator Ice Mold11W11676540 Whirlpool Refrigerator Cup Fill12WP627843 Whirlpool Refrigerator Ejector Arm13WPW10122563 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly17W10001240 Whirlpool Refrigerator Screw18W10190933 Whirlpool Refrigerator Motor Assembly19CABINET (NOT A SERVICEABLE PART)100ICEMAKER ASSEMBLY (COMPLETE)
