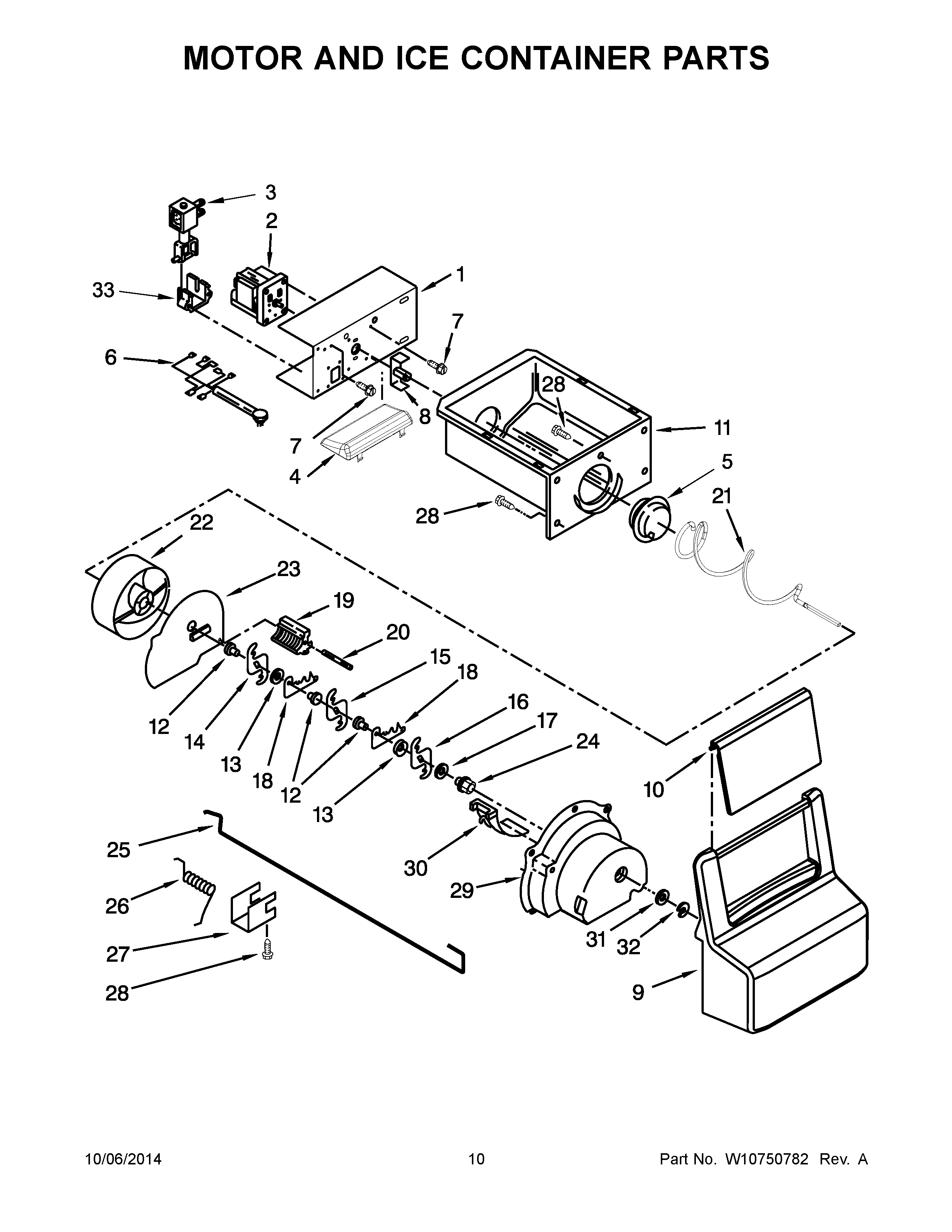

5WRS25FDBF02 06 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	BRACKET, MOTOR
2	WPW10457319 Whirlpool Motor
3	WPW10129867 Whirlpool Refrigerator Solenoid
4	W10649522 Whirlpool Light Assembly
5	W10749708 Whirlpool Refrigerator Coupling
6	WIRING ASSEMBLY, ICE DISPENSER
7	WP489399 Whirlpool Refrigerator Screw
8	COUPLING AUGER MOTOR
9	W11427433 Whirlpool Cover
10	W10406980 Whirlpool Refrigerator Ice Door
11	WPW10670845 Whirlpool Refrigerator Ice Container
12	W10189661 Whirlpool Refrigerator Spacer
13	W11032808 Whirlpool Refrigerator Spacer
14	W10278731 Whirlpool Refrigerator Blade
15	W10278732 Whirlpool Refrigerator Blade
16	W10278733 Whirlpool Refrigerator Blade
18	W10181990 Whirlpool Refrigerator Blade
19	W10138203 Whirlpool Refrigerator Blade Block
20	489229 Whirlpool Refrigerator Roll Pin
21	WPW10295082 Whirlpool Refrigerator Ice Auger
22	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
23	W10852691 Whirlpool Refrigerator Baffle
24	WP1119018 Whirlpool Refrigerator Bearing
25	W11596045 Whirlpool Refrigerator Control Arm
26	1119020 Whirlpool Refrigerator Spring
27	1119021 Whirlpool Refrigerator Clip
28	WP488787 Whirlpool Refrigerator Screw
29	WPW10185018 Whirlpool Refrigerator Housing
30	WP1119017 Whirlpool Refrigerator Deflector
31	489234 Whirlpool Refrigerator Washer
32	WP489236 Whirlpool Refrigerator Ring
33	2321298 Whirlpool Refrigerator Solenoid
100	WPW10558423 Whirlpool Refrigerator Ice Container
