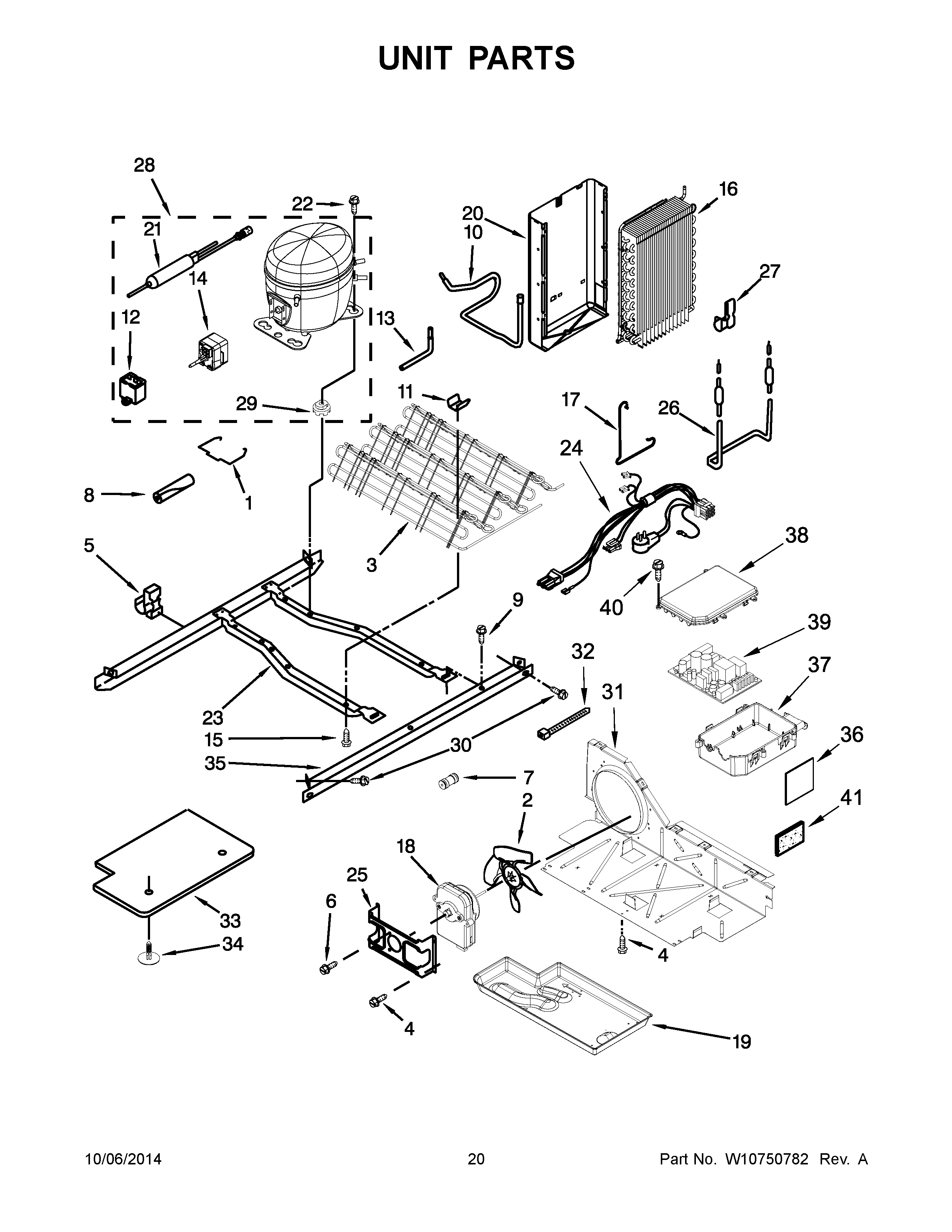

5WRS25FDBF02 11 – UNIT PARTSadmin2025-04-26T12:20:09+00:005WRS25FDBF02 11 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | 978030 Whirlpool Refrigerator Valve |
| NI | 10A CORD LOCK |
| NI | CORD ADAPTER, BRITISH |
| NI | CORD ADAPTER, EUROPEAN |
| NI | CORD ADAPTER, AUSTRAILIAN |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | VALVE, ACCESS (1/2``) |
| NI | WP978025 Whirlpool Refrigerator Valve |
| NI | 978027 Whirlpool Refrigerator Primary Valve |
| NI | 978026 Whirlpool Refrigerator Primary Valve |
| NI | 876764 Whirlpool Refrigerator Primary Valve |
| NI | VALVE, ACCESS (5/8``) |
| 1 | Strap, Bale |
| 2 | W10156818 Whirlpool Refrigerator Fan Blade |
| 3 | 2324712 Whirlpool Refrigerator Condenser |
| 4 | WP489464 Whirlpool Refrigerator Screw |
| 5 | W10812039 Whirlpool Clip |
| 6 | WP8533993 Whirlpool Refrigerator Screw |
| 7 | WP2300868 Whirlpool Refrigerator Fitting |
| 8 | SLEEVE |
| 9 | WP489427 Whirlpool Refrigerator Screw |
| 10 | WP2205765 Whirlpool Refrigerator Tube |
| 11 | W10683556 Whirlpool Refrigerator Clip |
| 12 | 2321245 Whirlpool Refrigerator Capacitor |
| 13 | W10858105 Whirlpool Refrigerator Tube |
| 14 | START PROTECT, COMBO PRODUCTION |
| 15 | W11544659 Whirlpool Refrigerator Screw |
| 16 | WP2188823 Whirlpool Refrigerator Evaporator |
| 18 | W10837641 Whirlpool Refrigerator Condenser Motor |
| 19 | WPW10614158 Whirlpool Refrigerator Evaporator Tray |
| 20 | W10194475 Whirlpool Refrigerator Shield |
| 21 | WPW10143759 Whirlpool Dryer Filter |
| 22 | SCREW |
| 23 | W10196321 Whirlpool Refrigerator Frame |
| 24 | HARNESS, UNIT |
| 25 | WP2181929 Whirlpool Refrigerator Bracket |
| 26 | WPW10123653 Whirlpool Refrigerator Heater |
| 27 | Clamp |
| 28 | W10183407 Whirlpool Refrigerator Compressor |
| 29 | WPW10169124 Whirlpool Refrigerator Grommet |
| 30 | 489340 Whirlpool Refrigerator Screw |
| 31 | BAFFLE, AIR |
| 32 | WPW10339879 Whirlpool Wire Tie |
| 33 | UNIT COVER, BOTTOM |
| 34 | 489396 Whirlpool Refrigerator Clip |
| 35 | W10196313 Whirlpool Refrigerator Rail Unit |
| 36 | 2217070 Whirlpool Foam Kit |
| 37 | ENCLOSURE, ELECTRONIC CONTROL |
| 38 | W10313215 Whirlpool Refrigerator Box Cover |
| 39 | W11103354 Whirlpool Electronic Control Board |
| 40 | WPW10171469 Whirlpool Refrigerator Screw |
| 41 | W11553819 Whirlpool Refrigerator Insulation |
