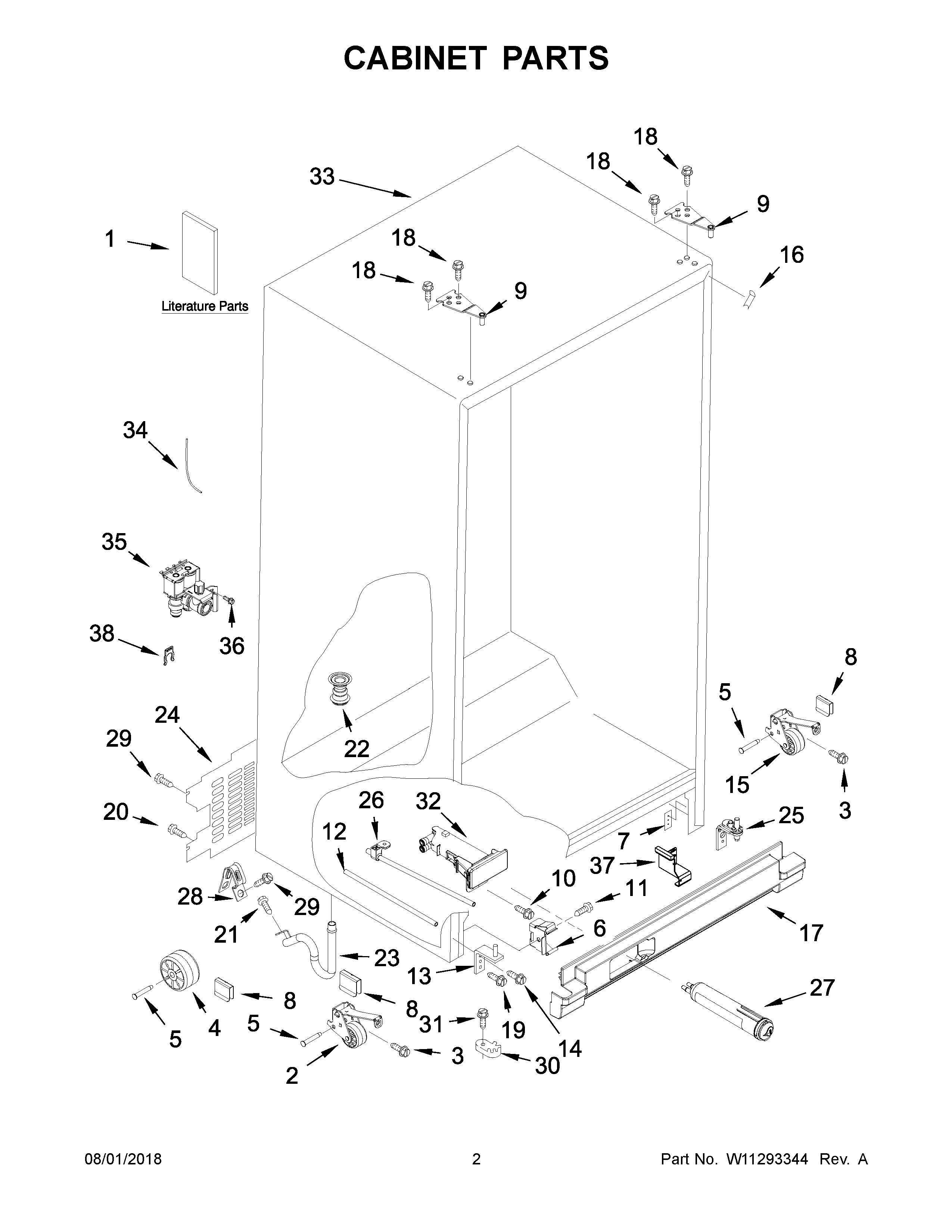

5WRS25FDFG00 02 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	SERVICE & WIRING SHEET
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
9	W11164088 Whirlpool Refrigerator Door Hinge
10	WP489500 Whirlpool Refrigerator Screw
11	WPW10141604 Whirlpool Screw
12	WPW10350006 Whirlpool Refrigerator Water Tube
13	W10646418 Whirlpool Refrigerator Door Hinge
14	WP489497 Whirlpool Screw
15	WPW10304659 Whirlpool Wheel Assembly
16	W11219642 Whirlpool Refrigerator Filler
17	GRILLE (GREY)
18	WPW10308751 Whirlpool Screw
19	W10856122 Whirlpool Refrigerator Screw
20	WP488488 Whirlpool Refrigerator Screw
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	Cover, Unit
25	W11049959 Whirlpool Refrigerator Hinge
26	WP2304697 Whirlpool Refrigerator Water Tube
27	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28	549193 Whirlpool Refrigerator Power Clamp
30	W10846218 Whirlpool Refrigerator Door Cam
31	WP489483 Whirlpool Screw
32	HOUSING-WATER FILTER
33	CABINET (NOT A SERVICEABLE PART)
34	W10823511 Whirlpool Refrigerator Water Tube
35	WPW10158157 Whirlpool Refrigerator Inlet Valve
36	WPW10141625 Whirlpool Refrigerator Screw Assembly
37	W10355758 Whirlpool Refrigerator Bracket
38A	W11678575 Whirlpool Ring
38	W11676611 Whirlpool Ring
