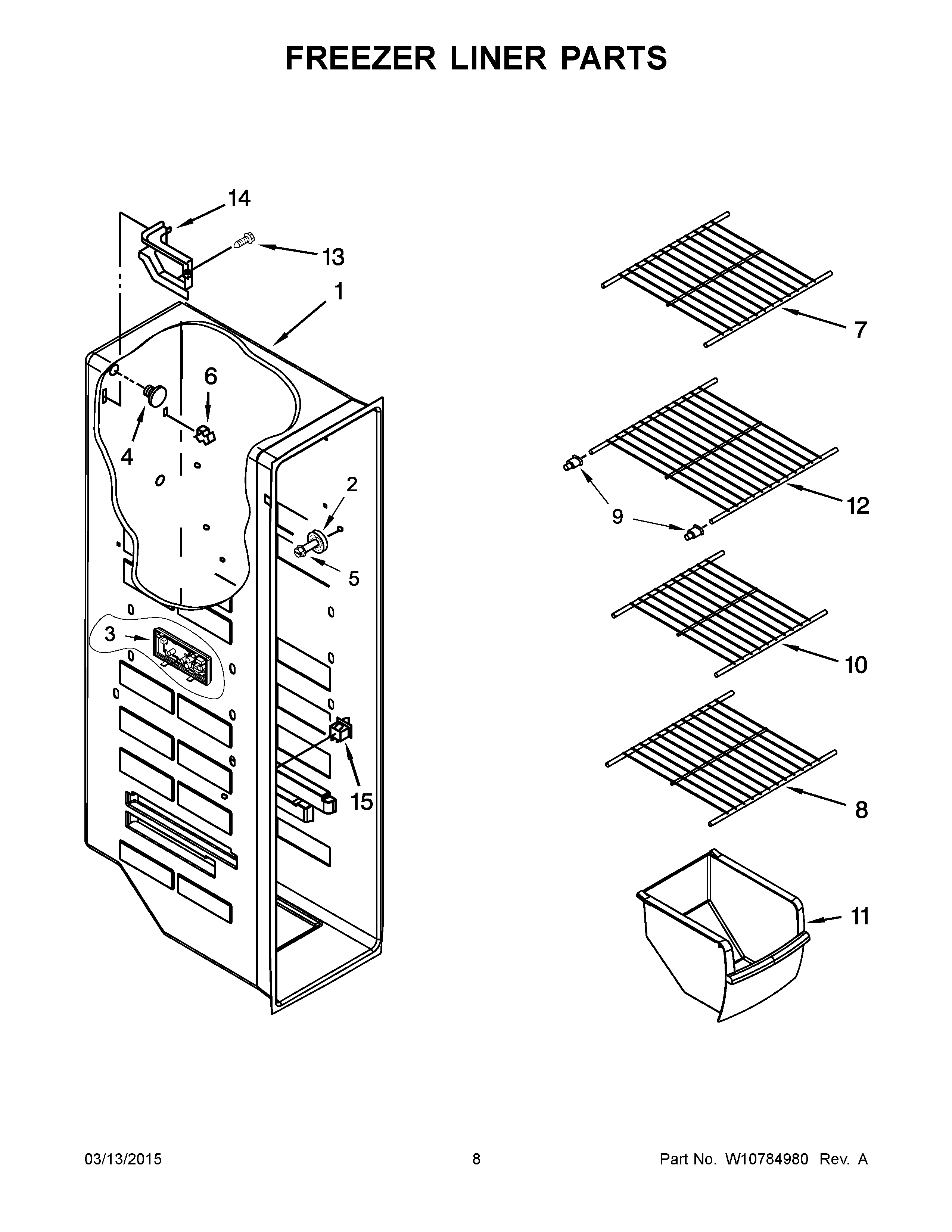

5WRS25KNBF02 05 – FREEZER LINER PARTS

5WRS25KNBF02 05 – FREEZER LINER PARTS

Written by

in

5WRS25KNBF02 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11527119 Whirlpool Refrigerator Shelf Stud
3W10649522 Whirlpool Light Assembly
42223173 Whirlpool Refrigerator Tube Plug
5WPW10191952 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
7W10318945 Whirlpool Refrigerator Wire Shelf
8WPW10318947 Whirlpool Wire Shelf
9WPW10130299 Whirlpool Refrigerator Cup
10WPW10318961 Whirlpool Refrigerator Wire Shelf
11WPW10144409 Whirlpool Refrigerator Freezer Bin
12WPW10318948 Whirlpool Wire Shelf
13WP489478 Whirlpool Refrigerator Screw
14Cover, Wiring
15Rocker Arm Switch
