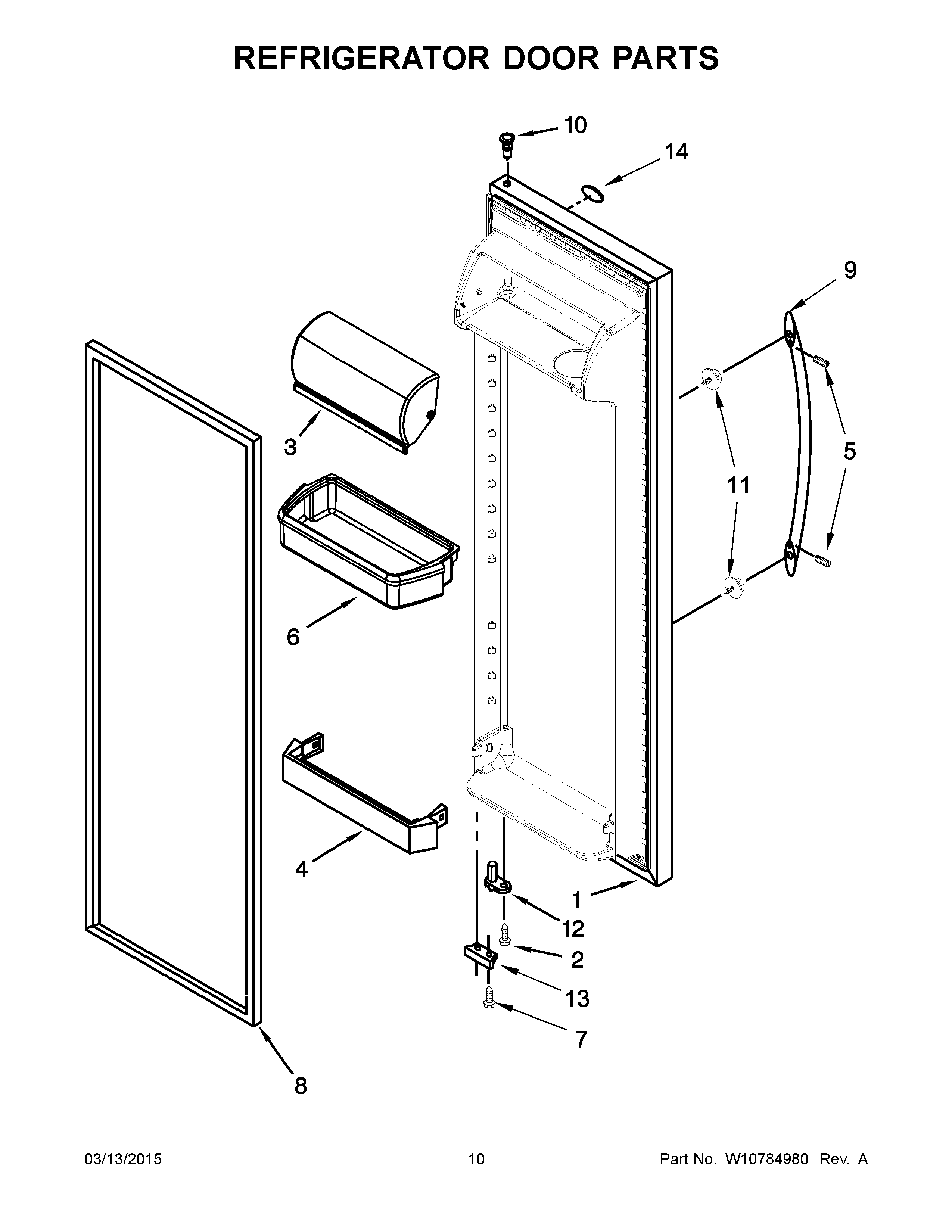

5WRS25KNBF02 06 – REFRIGERATOR DOOR PARTS

5WRS25KNBF02 06 – REFRIGERATOR DOOR PARTS

Written by

in

5WRS25KNBF02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WHITE)
1AREFRIGERATOR DOOR (INCLUDES ITEM 4) (SPARKLE STEEL)
2WP3400012 Whirlpool Refrigerator Screw
3WP2256101 Whirlpool Dairy Door
4WP2309941 Whirlpool Refrigerator Door Bar Trim
5SCREW
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7WP489483 Whirlpool Screw
82159075 Whirlpool Door Gasket Seal
8AWPW10136734 Whirlpool Refrigerator Door Gasket
9AWPW10670421 Whirlpool Refrigerator Handle
9WPW10268056 Whirlpool Refrigerator Door Handle
10WP2182181 Whirlpool Refrigerator Thimble
11WPW10661886 Whirlpool Refrigerator Door Handle Screw
12WP2182179 Whirlpool Cam Closer
13BRACKET, DOOR STOP (SILVER)
14WPW10511975 Whirlpool Refrigerator Nameplate
14AWPW10511972 Whirlpool Refrigerator Nameplate
