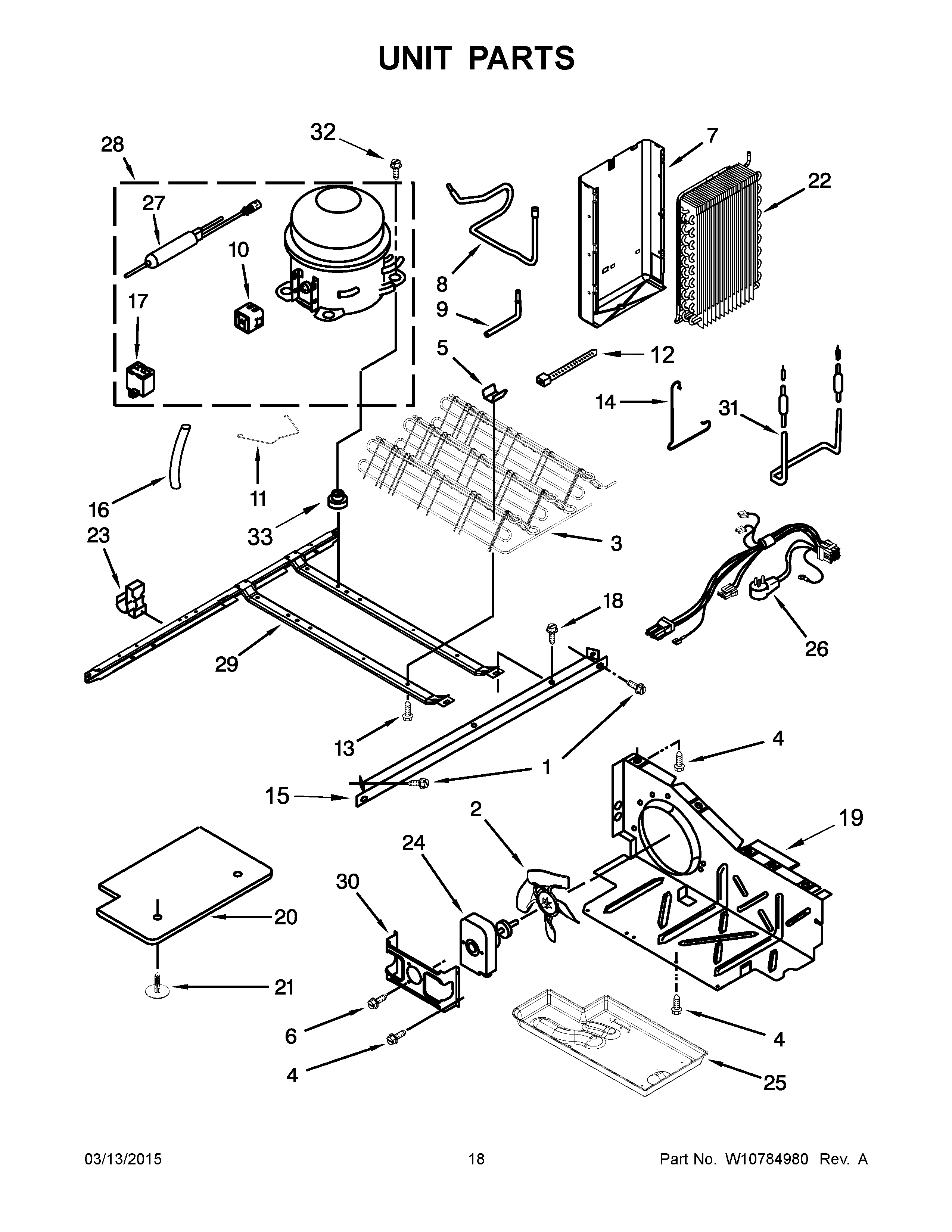

5WRS25KNBF02 10 – UNIT PARTS

5WRS25KNBF02 10 – UNIT PARTS

Written by

in

5WRS25KNBF02 10 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	10A CORD LOCK
NI	CORD ADAPTER, EUROPEAN
NI	CORD ADAPTER, AUSTRAILIAN
NI	CORD ADAPTER, BRITISH
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
1	489340 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	W10194475 Whirlpool Refrigerator Shield
8	WP2205765 Whirlpool Refrigerator Tube
9	W10858105 Whirlpool Refrigerator Tube
10	START PROTECT, COMBO PRODUCTION
11	Strap, Bale
12	WPW10339879 Whirlpool Wire Tie
13	W11544659 Whirlpool Refrigerator Screw
14	Clamp
15	W10196313 Whirlpool Refrigerator Rail Unit
16	SLEEVE
17	2321245 Whirlpool Refrigerator Capacitor
18	WP489427 Whirlpool Refrigerator Screw
19	BAFFLE, AIR
20	UNIT COVER, BOTTOM
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
23	W10812039 Whirlpool Clip
24	W10837641 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	HARNESS, UNIT
27	WPW10143759 Whirlpool Dryer Filter
28	W10183407 Whirlpool Refrigerator Compressor
29	W10196321 Whirlpool Refrigerator Frame
30	WP2181929 Whirlpool Refrigerator Bracket
31	WPW10123653 Whirlpool Refrigerator Heater
32	SCREW
33	WPW10169124 Whirlpool Refrigerator Grommet
