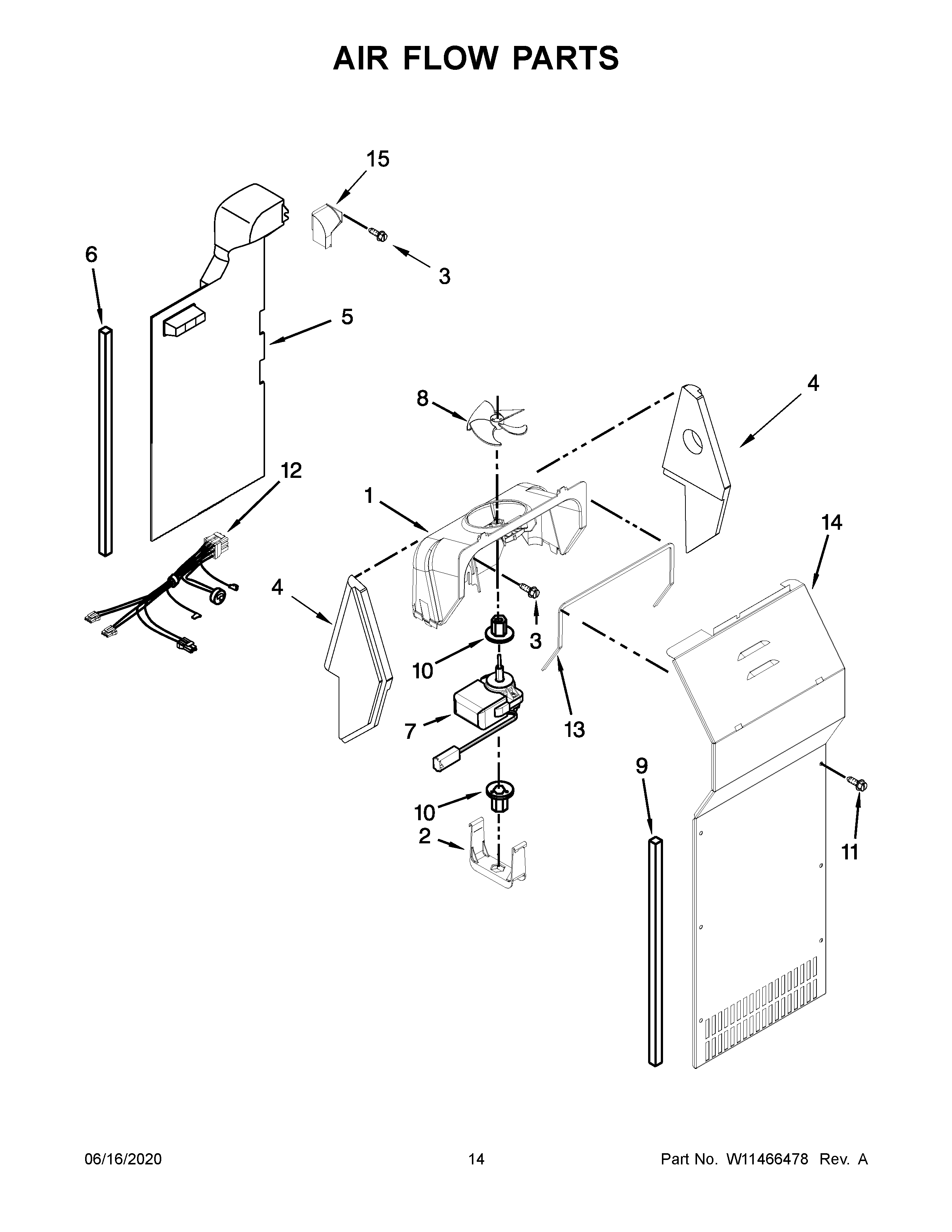

5WRS315NHM00 08 – AIR FLOW PARTS

5WRS315NHM00 08 – AIR FLOW PARTS

Written by

in

5WRS315NHM00 08 – AIR FLOW PARTS

Products

PositionProduct
1W11263195 Whirlpool Refrigerator Scroll Fan
2W11700295 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
4A4388358 Whirlpool Refrigerator Support Bracket
5Air Duct Freezer
64388500 Whirlpool Refrigerator Gasket
7WP2321275 Whirlpool Refrigerator Evaporator Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11WP693995 Whirlpool Screw
12HARNESS, EVAPORATOR FAN (INCLUDES THERMAL FUSE)
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10463013 Whirlpool Refrigerator Evaporator Cover
15W10803597 Whirlpool Refrigerator Air Scoop
