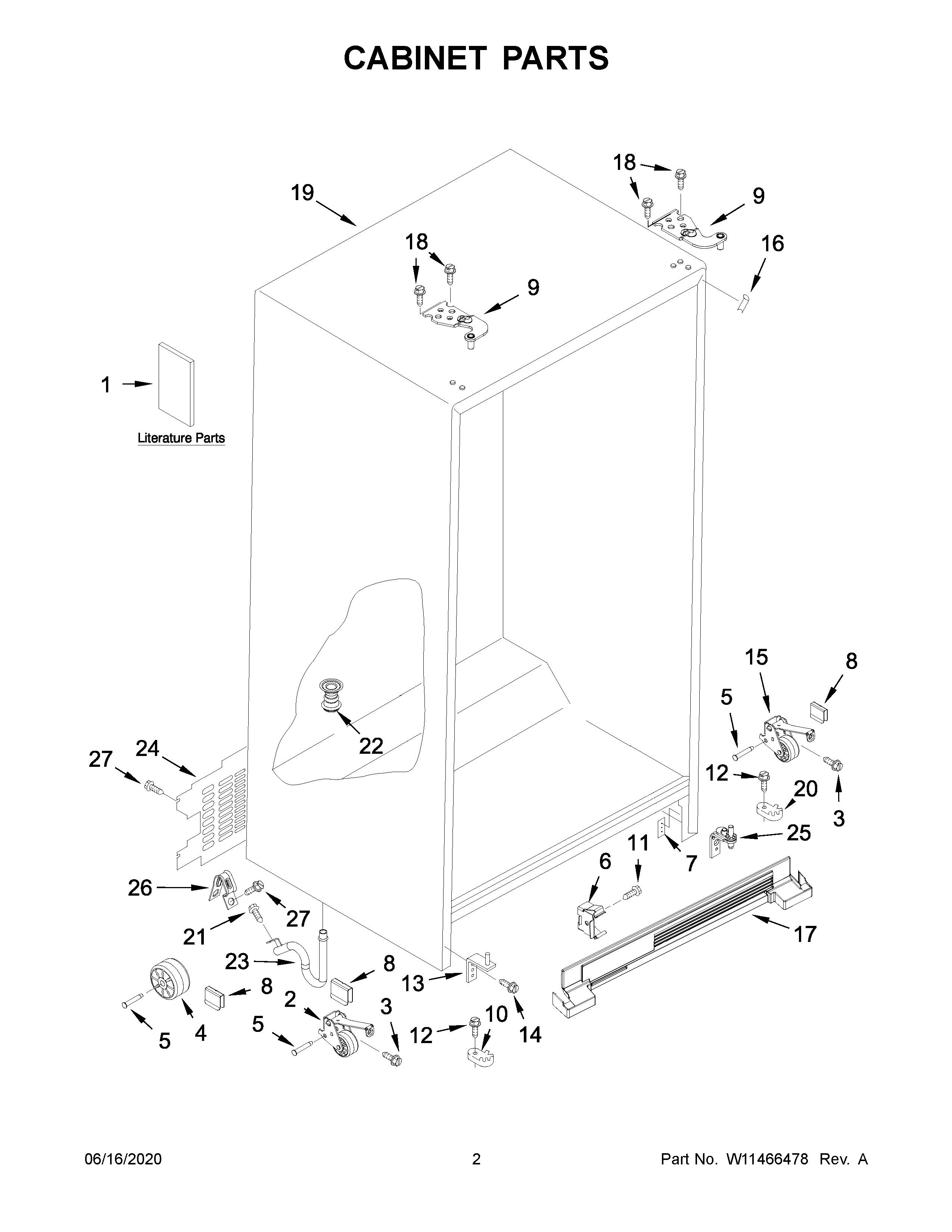

5WRS315NHW00 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	TECH SHEET
1	USE AND CARE GUIDE
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	W11036715 Whirlpool Refrigerator Plate
7A	W10904380 Whirlpool Plate
9A	W11505710 Whirlpool Refrigerator Door Hinge
9	W11505709 Whirlpool Refrigerator Door Hinge
10	W11679635 Whirlpool Door Cam
11	WP489128 Whirlpool Refrigerator Screw
12	WP489483 Whirlpool Screw
13	W11687636 Whirlpool Refrigerator Door Hinge
14	WP489497 Whirlpool Screw
15	WPW10304659 Whirlpool Wheel Assembly
16A	W11219642 Whirlpool Refrigerator Filler
16	W11219639 Whirlpool Refrigerator Filler
17A	W11282561 Whirlpool Refrigerator Grille
17	W11282563 Whirlpool Refrigerator Grille
18	SCREW, HINGE (WHITE)
19	CABINET (NOT A SERVICEABLE PART)
20	CAM-DOOR
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	W11613261 Whirlpool Unit Cover
25	W11399415 Whirlpool Refrigerator Door Hinge
26	549193 Whirlpool Refrigerator Power Clamp
27	SCREW
