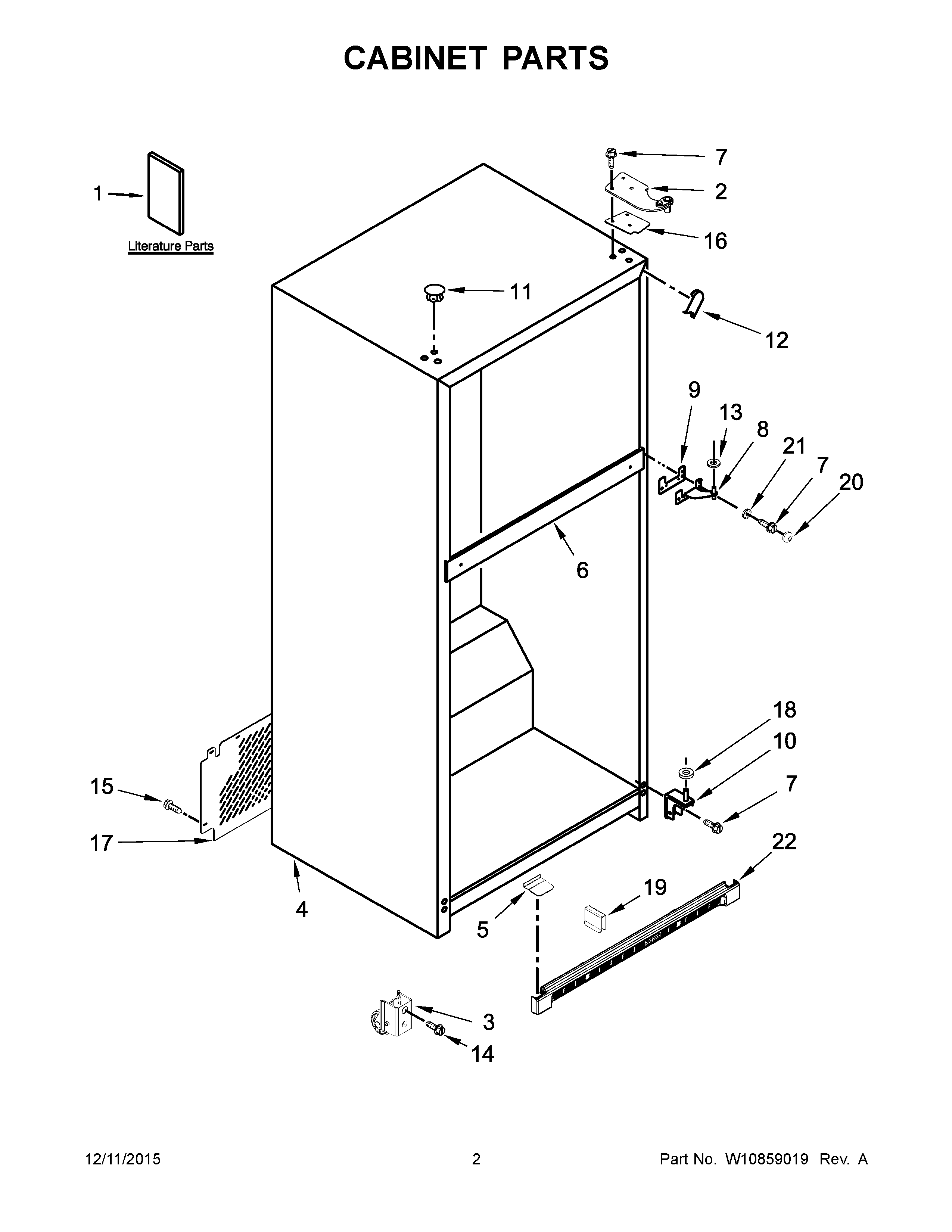

5WT511SFEG00 02 – CABINET PARTS

5WT511SFEG00 02 – CABINET PARTS

Written by

in

5WT511SFEG00 02 – CABINET PARTS

Products

PositionProduct
1SERVICE & WIRING SHEET
1AUSE & CARE GUIDE
2WPW10300065 Whirlpool Refrigerator Door Hinge
3AWPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
5AWPW10353932 Whirlpool Refrigerator Grille Endcap
5WPW10339257 Whirlpool Refrigerator Toe Grille Cover
6CABINET (NOT A SERVICEABLE PART)
7WP489497 Whirlpool Screw
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10WP2254473 Whirlpool Refrigerator Door Hinge
11AWPW10520307 Whirlpool Refrigerator Replacement Plug Button
11WPW10520304 Whirlpool Refrigerator Button Plug
12AW10851579 Whirlpool Refrigerator Filler
12WPW10283959 Whirlpool Refrigerator Filler
13WP489467 Whirlpool Hinge Shim
14BOLT
15WP488729 Whirlpool Refrigerator Door Screw
16W10883637 Whirlpool Refrigerator Hinge Shim
17W11307290 Whirlpool Unit Cover
18WP487576 Whirlpool Washer
19WP2174706 Whirlpool Refrigerator Pin Hitch
20AW10849198 Whirlpool Refrigerator Cap Screw
20W10846529 Whirlpool Refrigerator Screw Cap
21W10847959 Whirlpool Refrigerator Washer
22WPW10300129 Whirlpool Refrigerator Grille
22AWPW10353941 Whirlpool Refrigerator Grille
