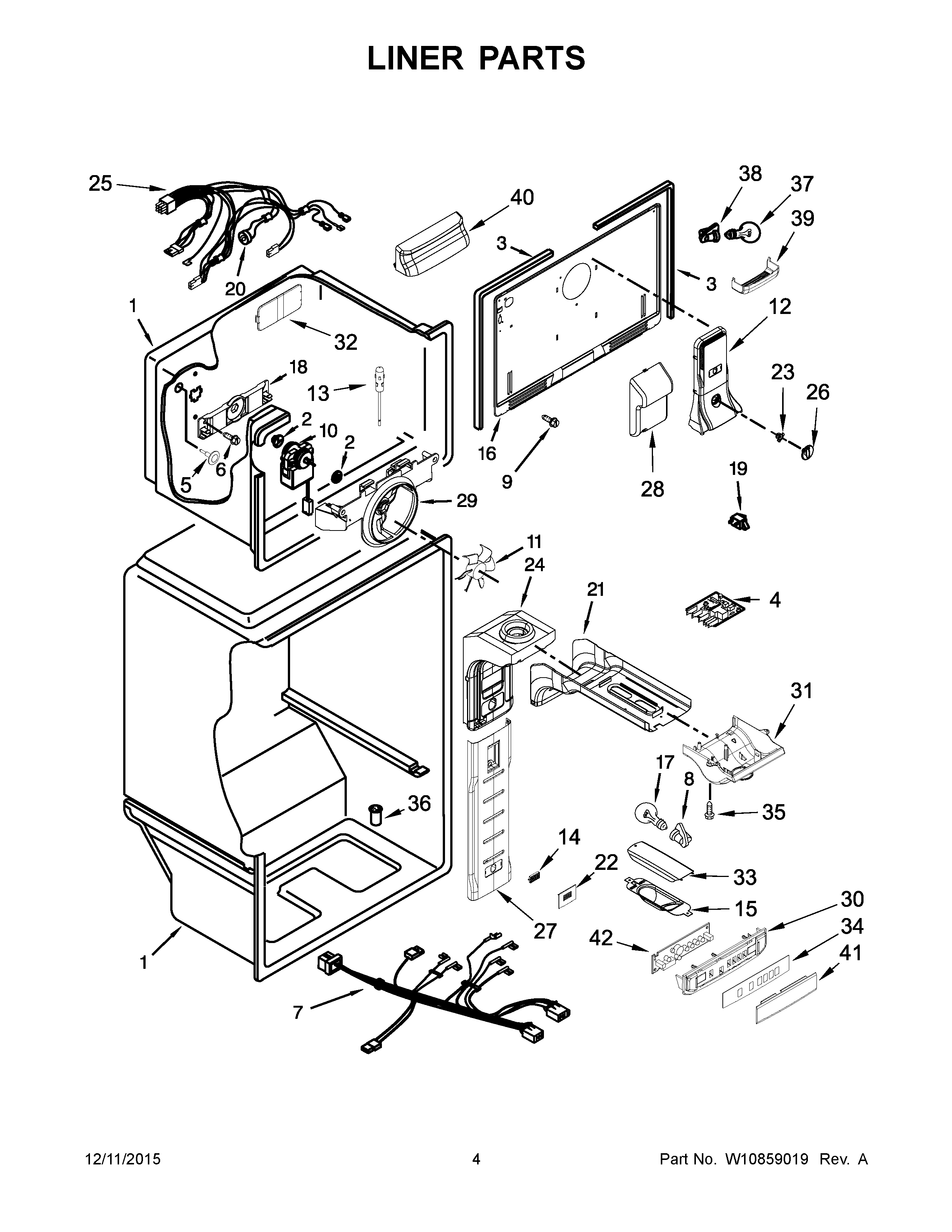

5WT511SFEG00 03 – LINER PARTS

5WT511SFEG00 03 – LINER PARTS

Written by

in

5WT511SFEG00 03 – LINER PARTS

Products

Position	Product
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	W10865705-includeCORE Whirlpool W10865705 Refrigerator Electronic Control Board + Core
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	WIRE ASSEMBLY, CONTROL BOX
8	W11447232 Whirlpool Refrigerator Socket
9	WPW10142283 Whirlpool Refrigerator Screw
10	MOTOR-EVAP
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10654833 Whirlpool Refrigerator Air Tower
13	THERMISTOR-REFRIGERATOR
14	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
15	W10300161 Whirlpool Refrigerator Shield
16	W10617507 Whirlpool Refrigerator Evaporator Cover
17	W10716219 Whirlpool Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11384469 Whirlpool Door Switch
20	CABINET (NOT A SERVICEABLE PART)
21	WPW10305175 Whirlpool Refrigerator Cover
22	WPW10330850 Whirlpool Refrigerator Grille
23	BAFFLE, AIR MANUAL
24	WPW10395376 Whirlpool Refrigerator Air Tower
25	WIRE ASSEMBLY, EVAPORATOR FAN
26	W11026417 Whirlpool Refrigerator Air Damper
27	W10705785 Whirlpool Refrigerator Cover
28	WPW10339203 Whirlpool Refrigerator Tube Cover
29	W10850162 Whirlpool Refrigerator Orifice
30	CONTROL, FASCIA
31	W10459450 Whirlpool Refrigerator Control Box
32	W10336009 Whirlpool Refrigerator Cover
33	WPW10348614 Whirlpool Refrigerator Cover
34	OVERLAY
35	WP489174 Whirlpool Refrigerator Screw
36	WP2210509 Whirlpool Refrigerator Tub Valve
37	W10855002 Whirlpool Light Bulb
38	W11661565 Whirlpool Refrigerator Socket
39	WPW10313918 Whirlpool Refrigerator Light Lens
40	LIGHT HOUSING, FC
41	LENS, FASCIA
42	WPW10336519-includeCORE Whirlpool WPW10336519 Refrigerator Electronic Control Board + Core
