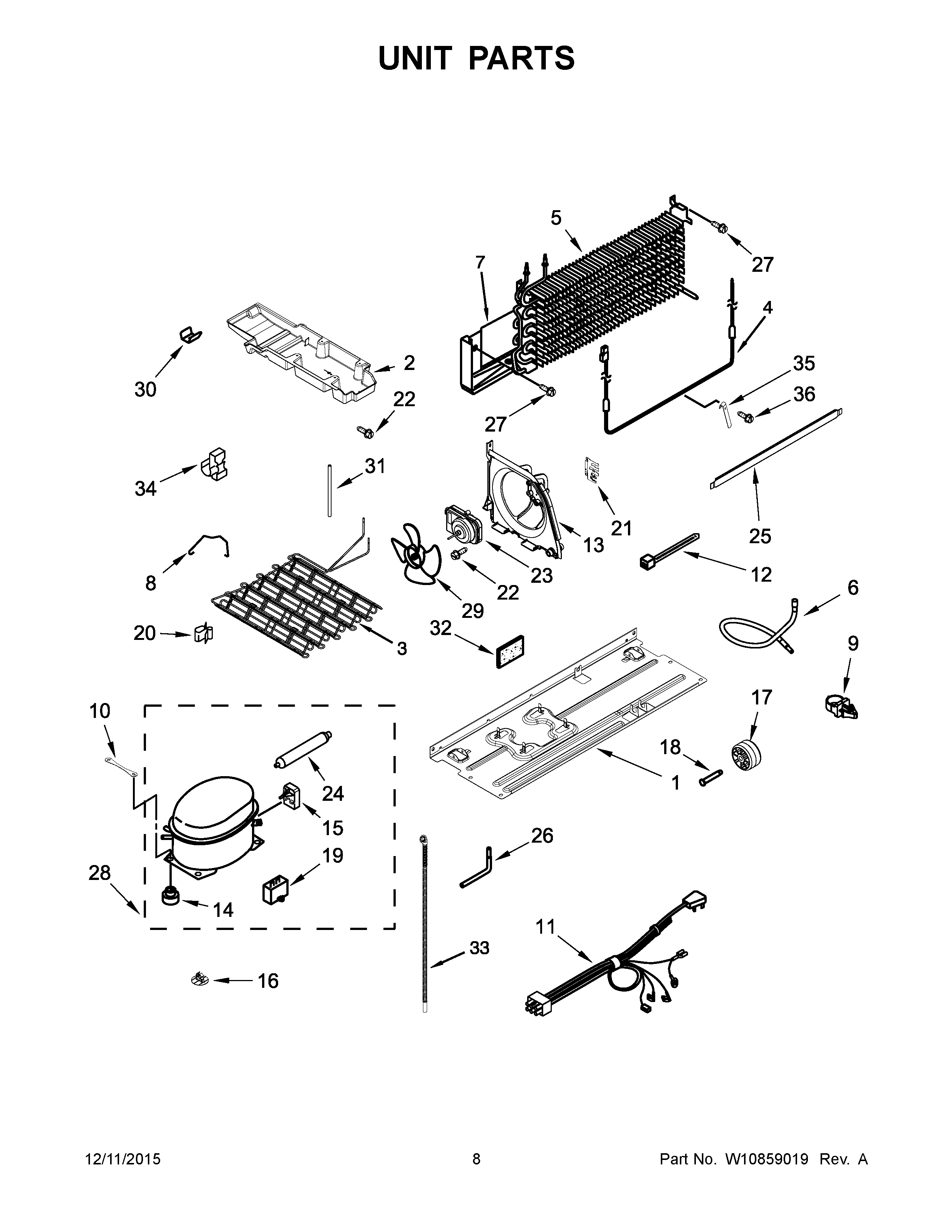

5WT511SFEG00 05 – UNIT PARTS

5WT511SFEG00 05 – UNIT PARTS

Written by

in

5WT511SFEG00 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11396825 Whirlpool Plate
2	W10890667 Whirlpool Refrigerator Drip Pan
3	W10609393 Whirlpool Refrigerator Condenser
4	W10405108 Whirlpool Heater
5	W10836706 Whirlpool Refrigerator Evaporator
6	W10466682 Whirlpool Refrigerator Tube
7	WPW10314195 Whirlpool Refrigerator Shield
8	STRAP, BALE
9	2219077 Whirlpool Refrigerator Clip
10	W10236396 Whirlpool Refrigerator Strap
11	HARNESS, UNIT
12	WPW10339879 Whirlpool Wire Tie
13	W11500918 Whirlpool Refrigerator Air Baffle
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2312007 Whirlpool Refrigerator Start Device
16	W10296661 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10801770 Whirlpool Capacitor
20	W10812038 Whirlpool Refrigerator Clip
21	W10314197 Whirlpool Refrigerator Bracket
22	W10829281 Whirlpool Refrigerator Screw
23	W10527160 Whirlpool Condenser Motor
24	W10843121 Whirlpool Refrigerator Tube
25	W10300902 Whirlpool Refrigerator Cover
26	W11676464 Whirlpool Tube
27	WP489442 Whirlpool Refrigerator Screw
28	W10183407 Whirlpool Refrigerator Compressor
29	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
30	W10683556 Whirlpool Refrigerator Clip
31	W11190084 Whirlpool Refrigerator Drain Tube
32	W11553819 Whirlpool Refrigerator Insulation
33	W10475011 Whirlpool Refrigerator Drain Tube
34	W10812039 Whirlpool Clip
35	W10856574 Whirlpool Refrigerator Heat Probe
36	WP489478 Whirlpool Refrigerator Screw
