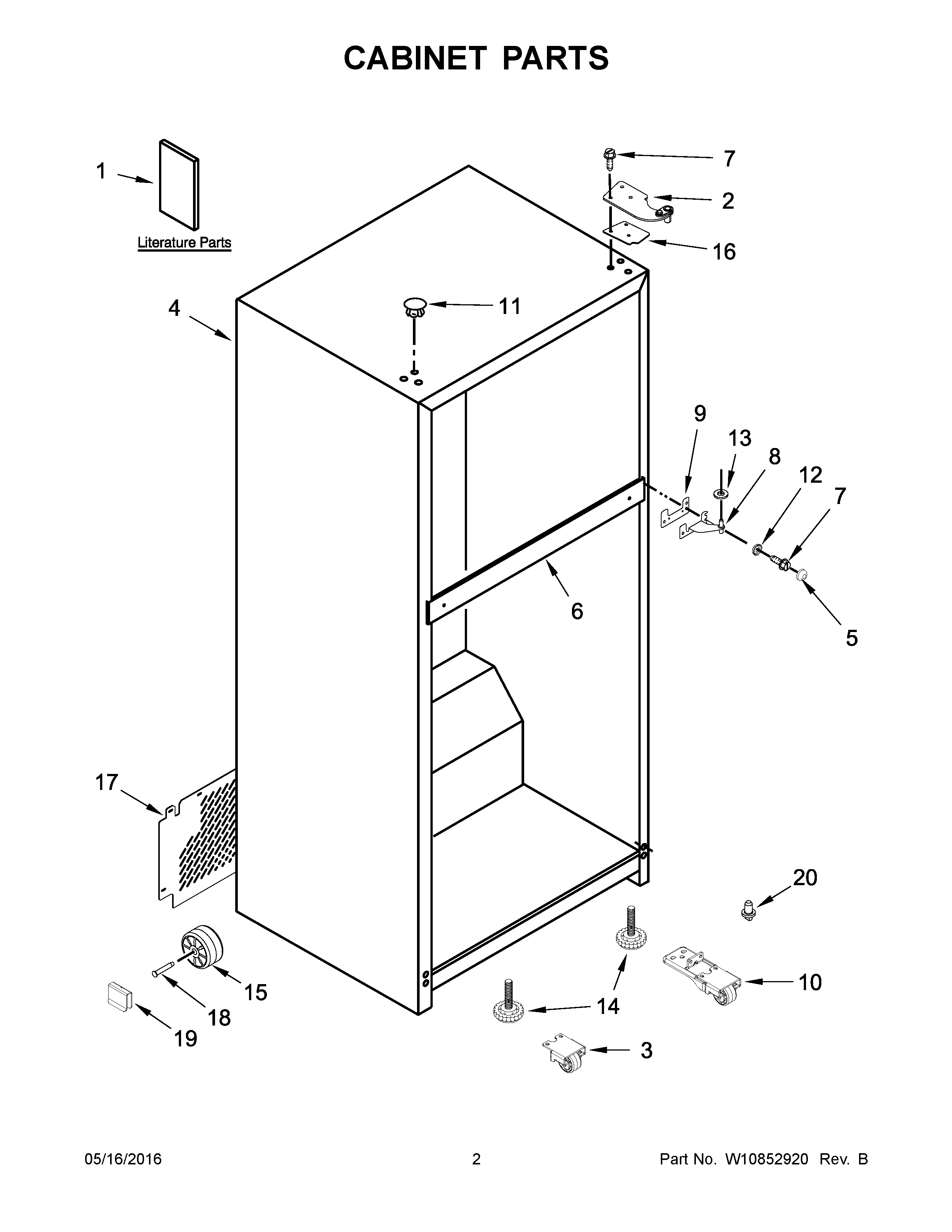

5WT519SFEG00 02 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1A	USE & CARE GUIDE
2	WPW10300065 Whirlpool Refrigerator Door Hinge
3	W11256723 Whirlpool Refrigerator CAB Roller
5	W10846529 Whirlpool Refrigerator Screw Cap
5A	W10849198 Whirlpool Refrigerator Cap Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	LOWER HINGE & ROLLER ASSEMBLY
11	WPW10520304 Whirlpool Refrigerator Button Plug
11A	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
12	W10847959 Whirlpool Refrigerator Washer
13	WP489467 Whirlpool Hinge Shim
14	W10854419 Whirlpool Refrigerator Leveling Leg
15	WPW10475495 Whirlpool Roller Assembly
16	W10883637 Whirlpool Refrigerator Hinge Shim
17	W11476772 Whirlpool Refrigerator Cover Assembly
18	W11594405 Whirlpool Axle
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20	W11026307 Whirlpool Refrigerator Hinge Pin
